Functional units

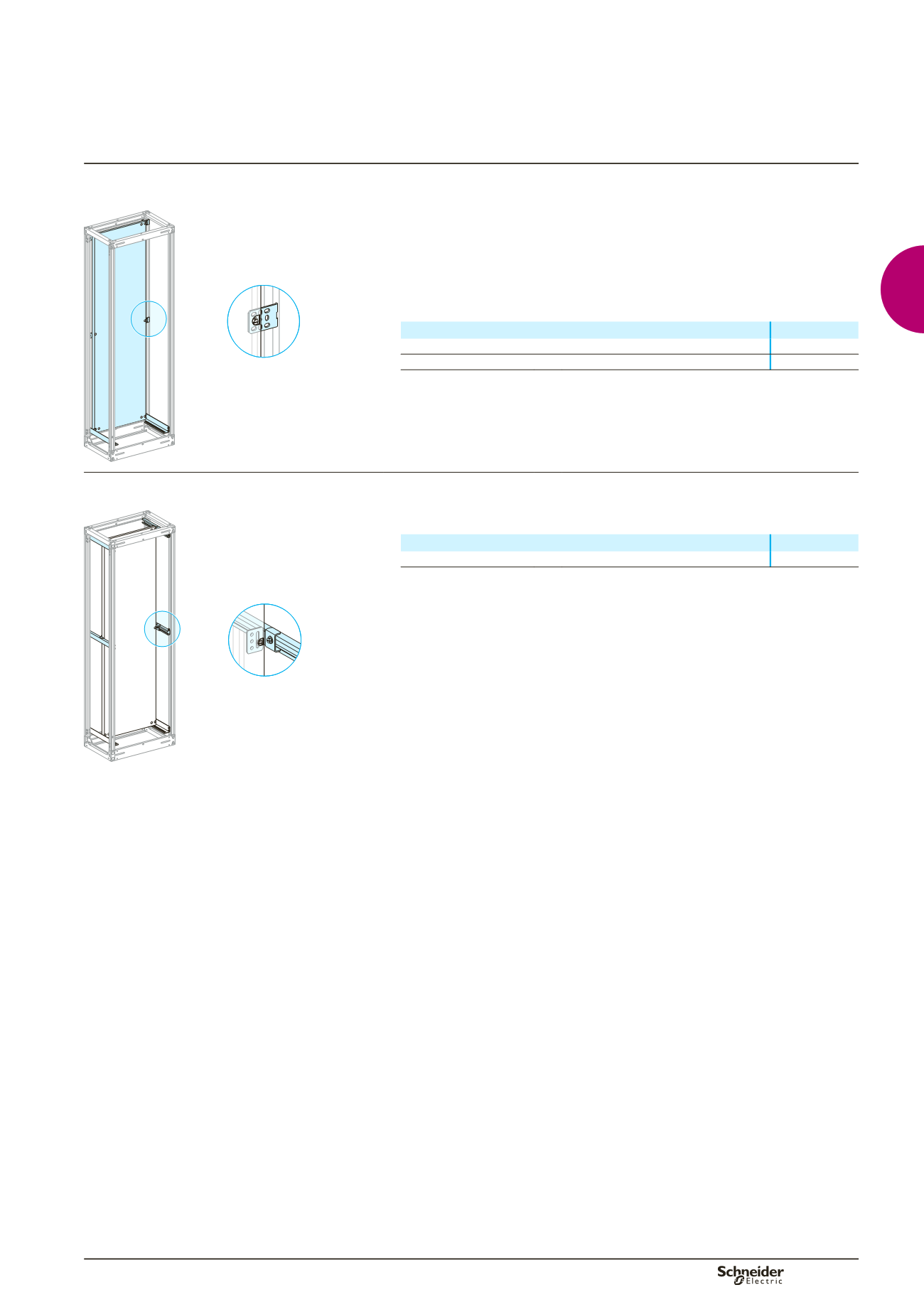

Plain backplate
Metal plain backplate, H = 1780 mm for 36 modules cubicle.
Supplied with four angle brackets and two slide rails to facilitate mounting.
The four angle brackets can be replaced by two sets of two slide rails (03593 x 2) for
depth adjustment.
There are two wides
510 mm wide for installation in a device compartment W = 650 mm or W = 800 mm
(650 + 150)
660 mm wide for installation for a cubicle W = 800 mm
Cat. no. selection
b
b
DD381174
Designation
Cat. no.
Plain backplate, 36 modules 510 mm wide
03570
Plain backplate, 36 modules 660 mm wide
03569
2 slide rails + angle brackets
For the installation and depth adjustment of plain backplates and slotted mounting
plates.
Cat. no. selection
DD381309
Designation
Cat. no.
Set of 2 slide rails + angle brackets
03593
Plain backplate mounted on slide rails.
Other devices
Mounting on a plain backplate
Others
