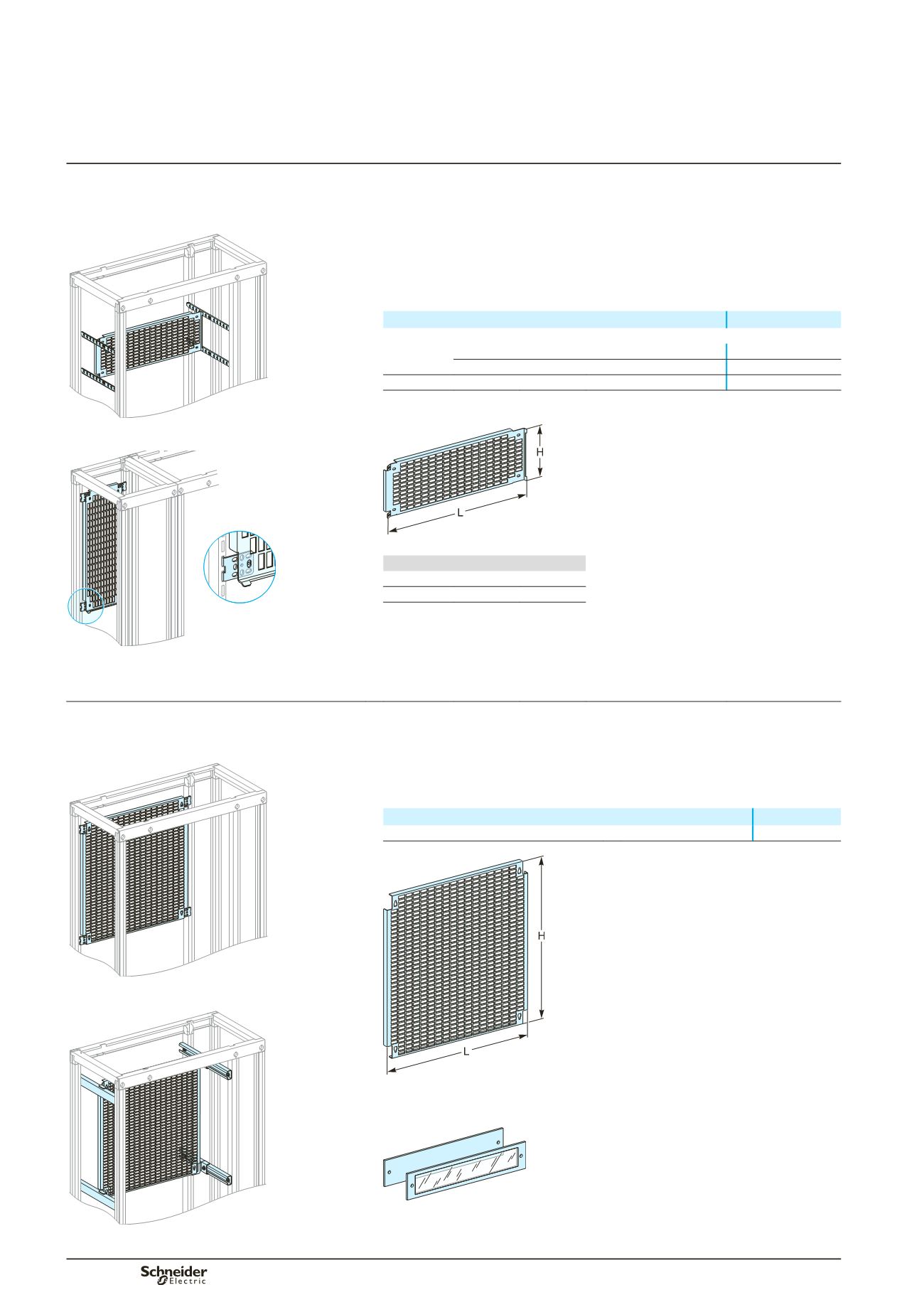

134 / 356
A-82
Functional units
Slotted mounting plates + 4 lateral
cross-members
Galvanised, slotted metal mounting plate, supplied with four lateral cross-members.
Installation
either in the device zone on the four lateral cross-members (depth adjustment is
poss ble)
or vertically at the rear of a cable compartment, W = 300 mm (03571) or
W = 400 mm (03572).
In this case, use four universal angle brackets.
Cat. no. selection
b
b
DD381175
Designation
Cat. no.
Slotted mounting plate + 4 lateral cross-members
H = 200 mm (4 modules)
03571
H = 300 mm (6 modules)
03572
2 universal angle brackets
03581
Slotted mounting plate in the device compartment.
DD381427
DD381176
Useful dimensions of the mounting plate
Cat. number H (mm)
L (mm)
03571
180
480
03572
280
480
Slotted mounting plate, H = 200 mm, installed vertically in a
cable compartment, W = 300 mm, using four universal angle
brackets. The height occupied is 600 mm (12 modules).
Slotted mounting plate without
lateral cross-members
Galvanised metal, slotted mounting plate, H = 600 mm.
Supplied with four angle brackets, they connect directly to the rear of a framework,
W = 650 mm or 800 mm (650 + 150 mm).
The mounting plate can also be installed using two sets of two slide rails (03593 x 2)
for depth adjustment.
Cat. no. selection
DD381178
Designation
Cat. no.
Slotted mounting plate, H = 600 mm (12 modules)
03574
DD381177
Slotted mounting plate attached to the rear of the framework.
DD381179
Useful dimensions of the mounting plate:
H = 580 mm, L = 420 mm.
DD381355
Slotted mounting plate, H = 600 mm, installed on slide rails
(03593 x 2).
Plain and transparent front plates.
Other devices
Mounting on a slotted plate
Others
