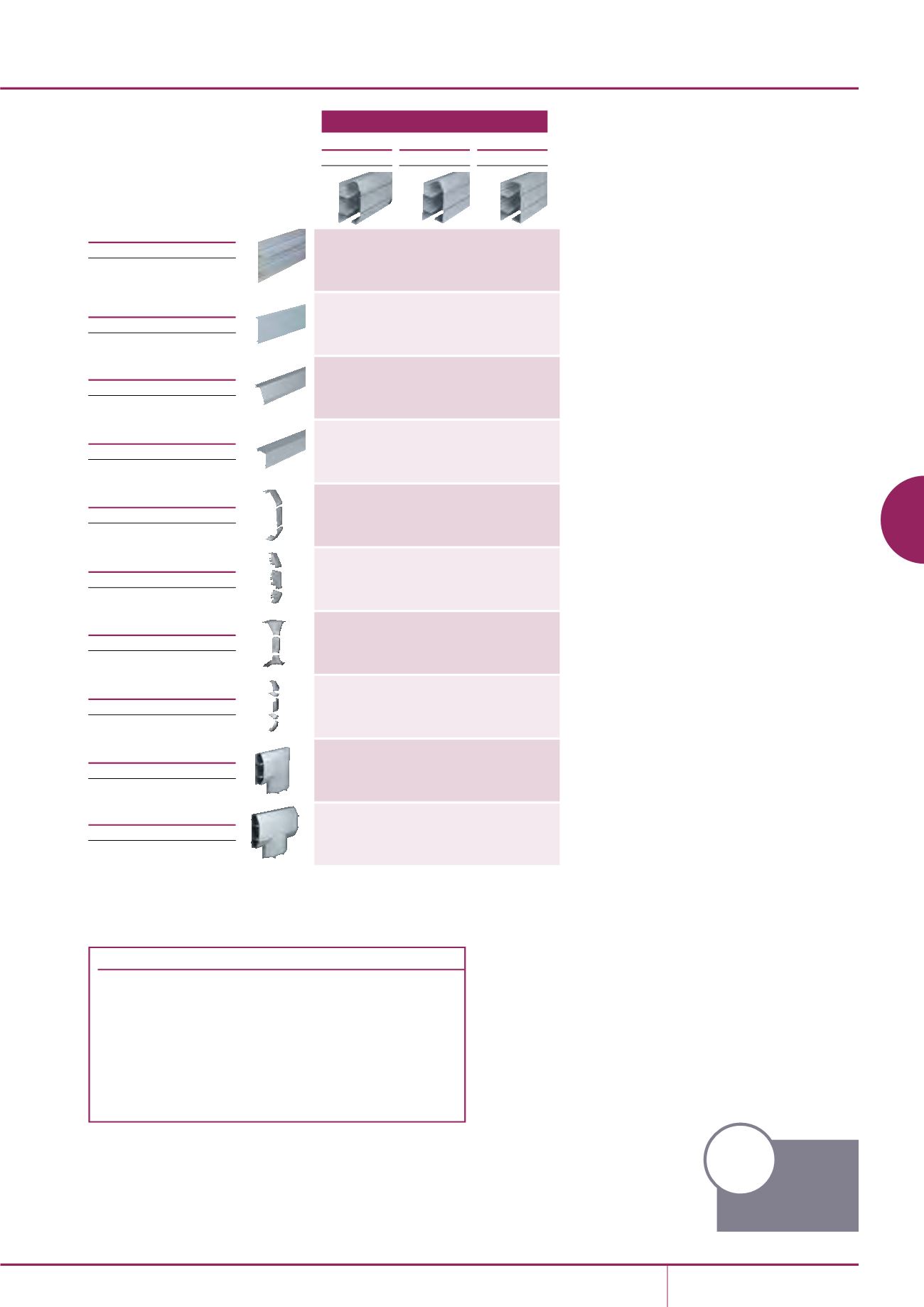

Aluminium trunking systems
ALUMINIUM TRUNKING SYSTEMS
XL 301 to 303 aluminium | 173
3 Compartment
XL 301
220 x 65mm
Base unit
Pack 2 x 3m
Features earth bonding rail and screw
ports to aid the fastening of pipe clips
and gas valves etc
Main compartment cover
Pack 1 x 3m
Angled cover
Pack 1 x 3m
Square cover
Pack 1 x 3m
Couplers
Pack 1
End caps
Pack 1
left or right hand
Internal bends
Pack 1
External bends
Pack 1
Flat angles
Pack 1
upward or downward
† Flat tees
Pack 1
† See Flat Tee information below
ELTB300 ELTB300 ELTB300
LTL1SG LTL1SG LTL1SG
2 x ELAC300SG 1 x ELAC300SG –
– 1 x ELSC300SG 2 x ELSC300SG
EC401SG EC402SG EC403SG
EEC401SG EEC402LHSGEEC402RHSG EEC403SG
EIB401SG EIB402SG EIB403SG
EXB401SG EXB402SG EXB403SG
EFA301SG EFA302USG
EFA302DSG EFA303SG
XL 302
220 x 65mm
XL 303
220 x 65mm
EFT 301SG † EFT303SG
† XL Trunking 302 flat tees
Where profiles have one angled cover and one square cover, as with
XL 302 trunking, it is possible to create a tee by changing the top or
bottom cover so that covers match the profile of the trunking. For
example:
• Upward tee – select XL 301 tee remove the angled bottom cover and
replace with square cover.
• Downward tee – select XL 303 tee remove the square top cover and
replace with angled cover.
p296
Technical
Information
Quick reference chart
XL Aluminium 301 to 303
