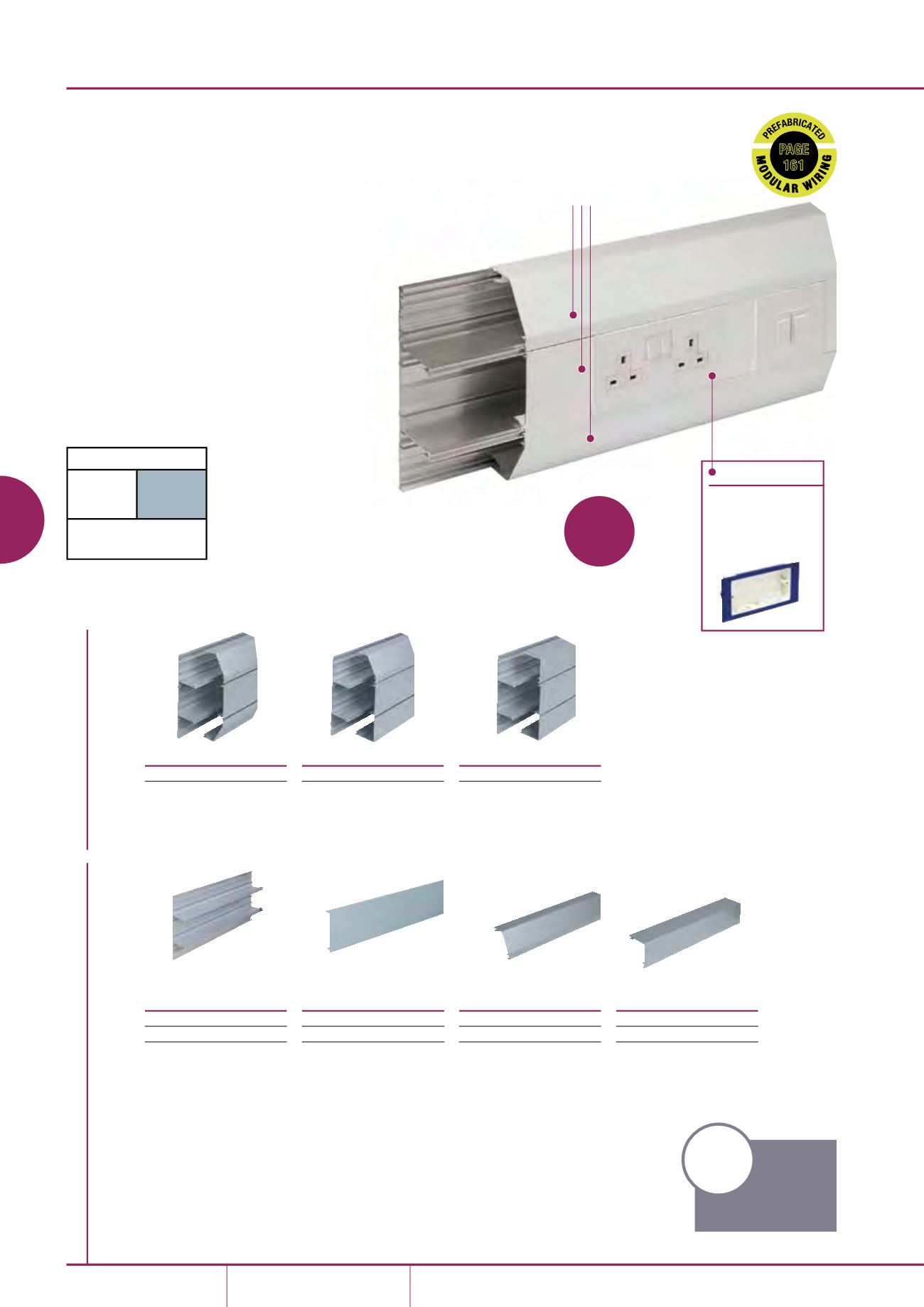

XL 301 to 303 aluminium
XL aluminium trunking 301 to 303 comprises a range of
deep, 3-compartment systems that provide extra capacity
and screening performance levels for data cabling.
Product information
•
220 x 65mm
•
3 deep segregated compartments
•
Compartments can be subdivided
•
Suitable for dado and skirting applications
(XL301 is recommended for dado application only)
•
Includes a range of polycarbonate clip-on fittings with
built-in overlaps
•
Fully compatible with Sterling flush power and data accessories
Data information
•
Data compliant 25mm and 50mm bend radius
•
External bends feature internal segregators
•
Adjustable data box 32mm - 47mm
•
Screened divider and data boxes
Base unit
code
pack
ELTB300
2 x 3m
Main compartment cover
code
pack
LTL1SG
1 x 3m
Angled cover
code
pack
ELAC300SG
1 x 3m
Square cover
code
pack
ELSC300SG
1 x 3m
Trunking profiles
Basic components
Individual covers for
each compartment
XL 303
size
220 x 65mm
Colour code suffix:
to indicate the
finish you require, add the required
colour code to the end of the
product code.
Colour options:
optional colours
and finishes are available but these
are subject to minimumquantity
orders and longer lead times.
For more information contact
the Technical Team on
+44 (0)1424 856688.
Part M
For 1 and 2 gang box
assemblies with coloured
flush plates to comply
with Part Mplease
refer to page 106.
XL 302
size
220 x 65mm
*XL 301
size
220 x 65mm
*For dado installation only
Standard Colours
WH
SG
WH
: White
SG
: Silver grey
