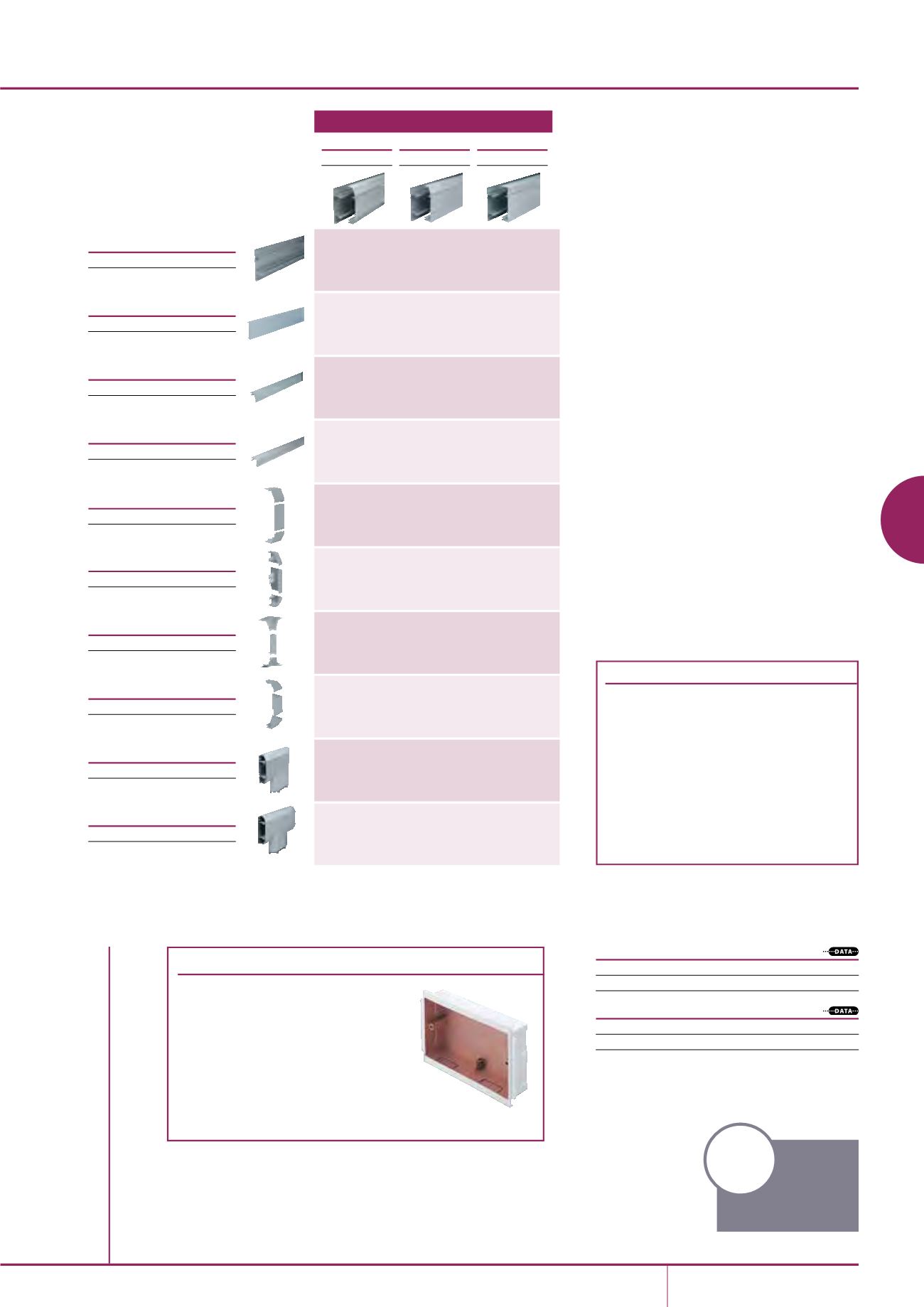

Aluminium trunking systems
ALUMINIUM TRUNKING SYSTEMS
Sterling Profile 3001 to 3003
| 169
Screened boxes
3 compartment
Profile 3001
167 x 50mm
Base unit
Pack
2 x 3m
Milled aluminium
Main compartment cover
Pack
1 x 3m
Angled cover
Pack
1 x 3m
Square cover
Pack
1 x 3m
Couplers
Pack
1
End caps
Pack
1
Left or right handed
Internal bends
Pack
1
Internal base corner needs to be mitred
External bends
Pack
1
External base corner needs to be mitred
Flat angles
Pack
1
Upward or downward
†
Flat tees
Pack
1
†
See Flat Tee information below
ETB300MF
ETB300MF
ETB300MF
LTL1SG
LTL1SG
LTL1SG
2 x ETAC300SG 1 x ETAC300SG
–
–
1x ETSC300SG 2 x ETSC300SG
ECP401SG ECP402SG ECP403SG
EECP401SG EECP402LHSG
EECP402RHSG EECP403SG
EIBP401SG EIBP402SG EIBP403SG
EXBP401SG EXBP402SG EXBP403SG
EFAP3001SG EFAP3002USG
EFAP3002DSG EFAP3003SG
EFTP3001SG
†
EFTP3003SG
Profile 3002
167 x 50mm
Profile 3003
167 x 50mm
Conductive spray (CS) is unique to Marshall-Tufflex
and is applied in the factory to provide protection
from electromagnetic interference to data and
communications cabling within trunking systems.
The coating is applied to a range of data boxes,
covers, clip-on components and fabricated fittings.
WARNING
: A CS coating is not suitable for low voltage circuits.
Screening
1 gang screened accessory box
code
depth
description pack
ESSB1SWH*
30mm
PVC-U
20
2 gang screened accessory box
code
depth
description pack
ESSB2SWH*
30mm
PVC-U
10
*Supplied complete with earth terminal
p291
Technical
Information
Quick reference chart
Sterling Profile aluminium
component chart
†
Sterling Profile 3002 flat tees
Where profiles have one angled cover and one
square cover, as with Sterling Profile 3002, it is
possible to create a tee by changing the top or
bottom cover so that covers match the profile
of the trunking. For example:
• Upward tee – select Profile 3001 tee remove
the angled bottom cover and replace with
square cover.
• Downward tee – select Profile 3003 tee
remove the square top cover and replace
with angled cover
.
