36

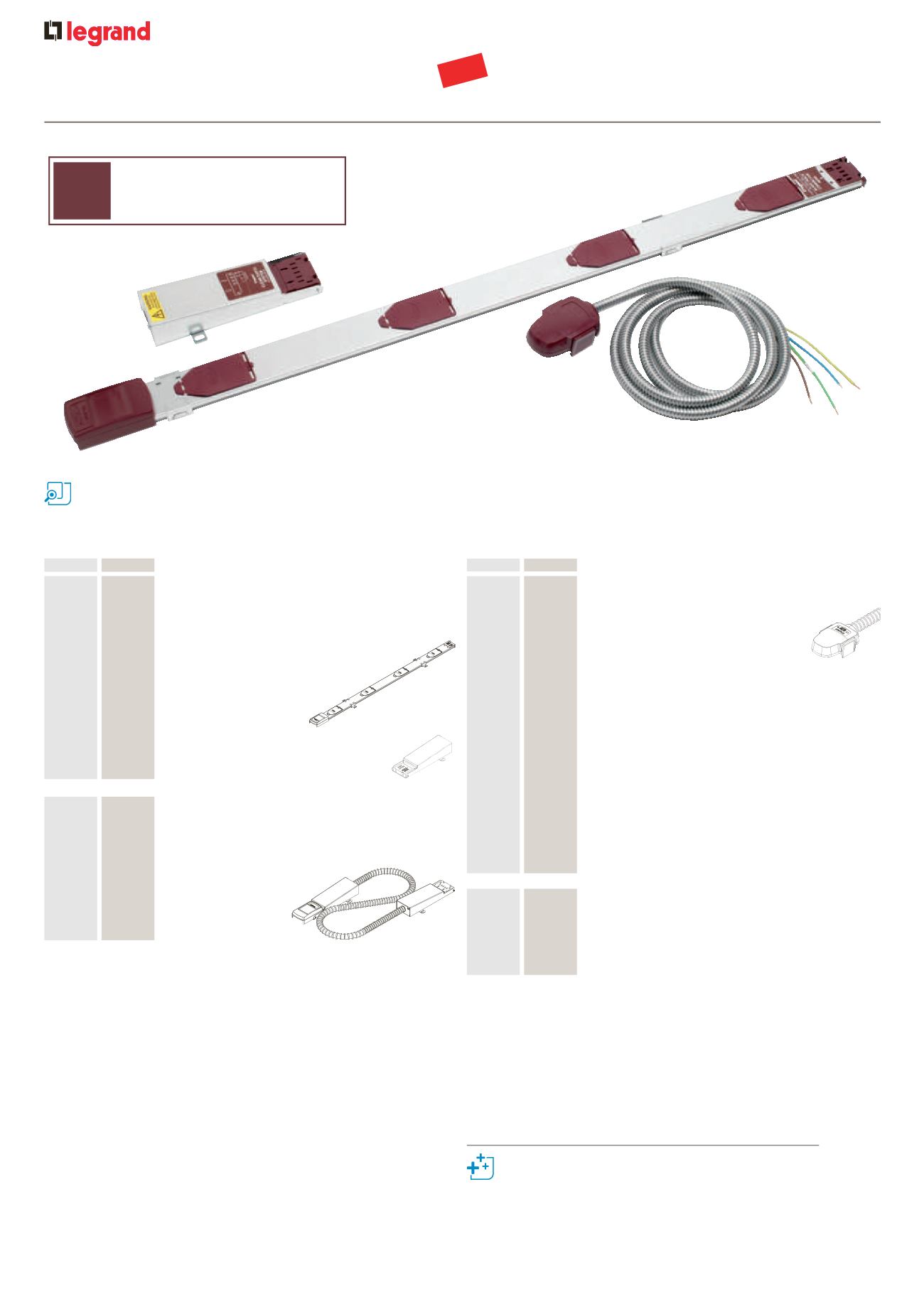

63 A powertrack system including an independent clean earth copper bar
Pack
Cat. Nos.
Track lengths and feeder unit
Clean earth track lengths
300 mm socket pitch
Track lengths fit together using the integral
connectors on each length
Track lengths should always be secured
using the integral floor fixing brackets
1
820812 1·2 m, 4 tap-off outlets
1
820818 1·8 m, 6 tap-off outlets
1
820830 3·0 m, 10 tap-off outlets
Clean earth feeder unit
1
820801 25 mm cable entry
Terminal capacity 16 mm
2
maximum
Flexible bend
Clean earth flexible bend
1
820802 Comprises a length of 25 mm conduit with a
plug-in feed at each end, pre-wired with 10 mm
2
tri-rated cable
Cable length = 1·2 m
Clean earth powertrack integral
track connectors, tap-off oulets and
tap-off units are coloured dark red
for easy identification
Legrand powertrack system
clean earth (dark red)
NEW
Dimensions and technical information
p. 40-45
For pre-wired floor boxes and slab boxes
p. 38-39
Pack
Cat. Nos.
Clean earth tap-off units
Tap-off length refers to the cable and not the conduit
length
Unfused 32 A tap-off units in excess of 3 m should
only be used if the track is protected by a
protective device not exceeding 32 A
These tap-off units can also be used
with the dual circuit powertrack system (p. 37)
13 A fused
16 mm Ø – 1·5 mm
2
L, N, PE, CE
1
820832 3 m
1
820852 5 m
13 A fused – high integrity 543·7
16 mm Ø – 1·5 mm
2
L, N, - 4 mm
2
PE, CE
1
820834 3 m
1
820854 5 m
32 A unfused
16 mm Ø – 4 mm
2
L, N, PE, CE
1
820838 3 m
1
820858 5 m
Accessory
Arena-Walsall to Legrand adaptor
Flexible adaptor unit to connect Arena-Walsall
powertrack system to the new Legrand system
1
820803 Clean earth adaptor 1·2 m
