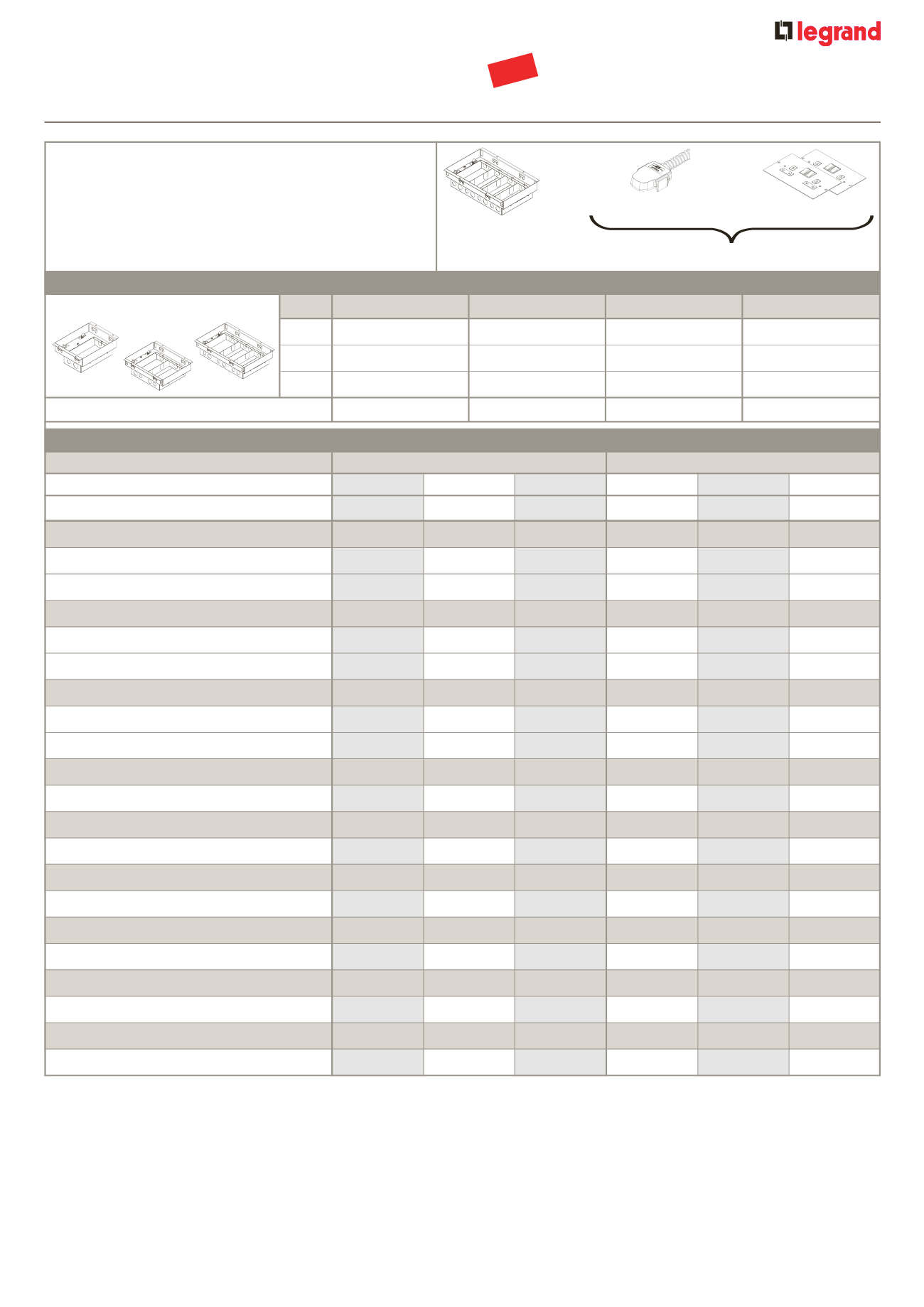

The table below details the elements required to correctly order a
pre-wired floor box or slab box
Lid and trim to be ordered separately p. 27
Simply suffix the service outlet box Cat. No. with the relevant
“PW...” Cat. No. from the table, eg :
4 compartment cavity floor box, 110 mm deep (Cat. No. CAV4110)
pre-wired with 2 x clean earth twin switched sockets (Cat. No. SP3211)
to a 3 m 13 A fused clean earth tap-off (Cat. No. 820832) =
CAV4110PW213
3 m 5 m
1: Where boxes are supplied with a single tap-off unit and contain more than 2 x single socket
outlets, the loading of the service box must not exceed 32 A
2 compartment 3 compartment 4 compartment 1 compartment
75 mm – CAV275 CAV375 CAV475
85 mm CAV185 CAV285 CAV385 CAV485
110 mm – CAV2110 CAV3110 CAV4110
Choose your tap-off and socket outlet plates
Choose your service outlet box
Depth
Slab floor box SLAB1 SLAB2 SLAB3 SLAB4
Cavity floor service outlet boxes
+ +
Service outlet box
(eg. CAV4110)
CAV4110 PW213
Clean earth tap-off unit
NEW
Cat. Nos. 820832 820838 820834 820852 820858 820854
1 x 13 A clean earth socket outlet
13 A twin switched socket plate PW113 PW114 PW115 PW116 PW117 PW118
13 A triple unswitched socket plate1 PW125 PW126 PW127 PW128 PW129 PW130
2 x 13 A clean earth socket outlets
13 A twin switched socket plate1 PW213 PW214 PW215 PW216 PW217 PW218
13 A triple unswitched socket plate1 PW225 PW226 PW227 PW228 PW229 PW230
3 x 13 A clean earth socket outlets
13 A twin switched socket plate1 PW313 PW314 PW315 PW316 PW317 PW318
13 A triple unswitched socket plate1 PW325 PW326 PW327 PW328 PW329 PW330
1 x 13 A non-standard clean earth socket outlet
13 A twin NS switched socket plate PW143 PW144 PW145 PW146 PW147 PW148
2 x 13 A non-standard clean earth socket outlets
13 A twin NS switched socket plate1 PW243 PW244 PW245 PW246 PW247 PW248
3 x 13 A non-standard clean earth socket outlets
13 A twin NS switched socket plate1 PW343 PW344 PW345 PW346 PW347 PW348
1 x 13 A RCD clean earth socket outlet
2 gang RCD socket plate1 PW155 PW156 PW157 PW158 PW159 PW160
2 x 13 A RCD clean earth socket outlets
2 gang RCD socket plate1 PW255 PW256 PW257 PW258 PW259 PW260
3 x 13 A RCD clean earth socket outlets
2 gang RCD socket plate1 PW355 PW356 PW357 PW358 PW359 PW360
2 x socket outlet plates
(eg. SP3211)
13 A Fused 32 A Unfused 13 A High integerity 13 A Fused 32 A Unfused 13 A High integerity
pre-wired cavity floor service outlet boxes
configuration table for clean earth tap-off units
Standard tap-off unit
(eg. 3 m 13 A fused 820732)
