44
All dimensions (mm) are nominal
Tap-off unit connection
Depress tap-off side clips and push down
Make sure both tap-
off side clips are fully
pushed home on both
sides of track
Tap-off
Side clip
Push down
Powertrack

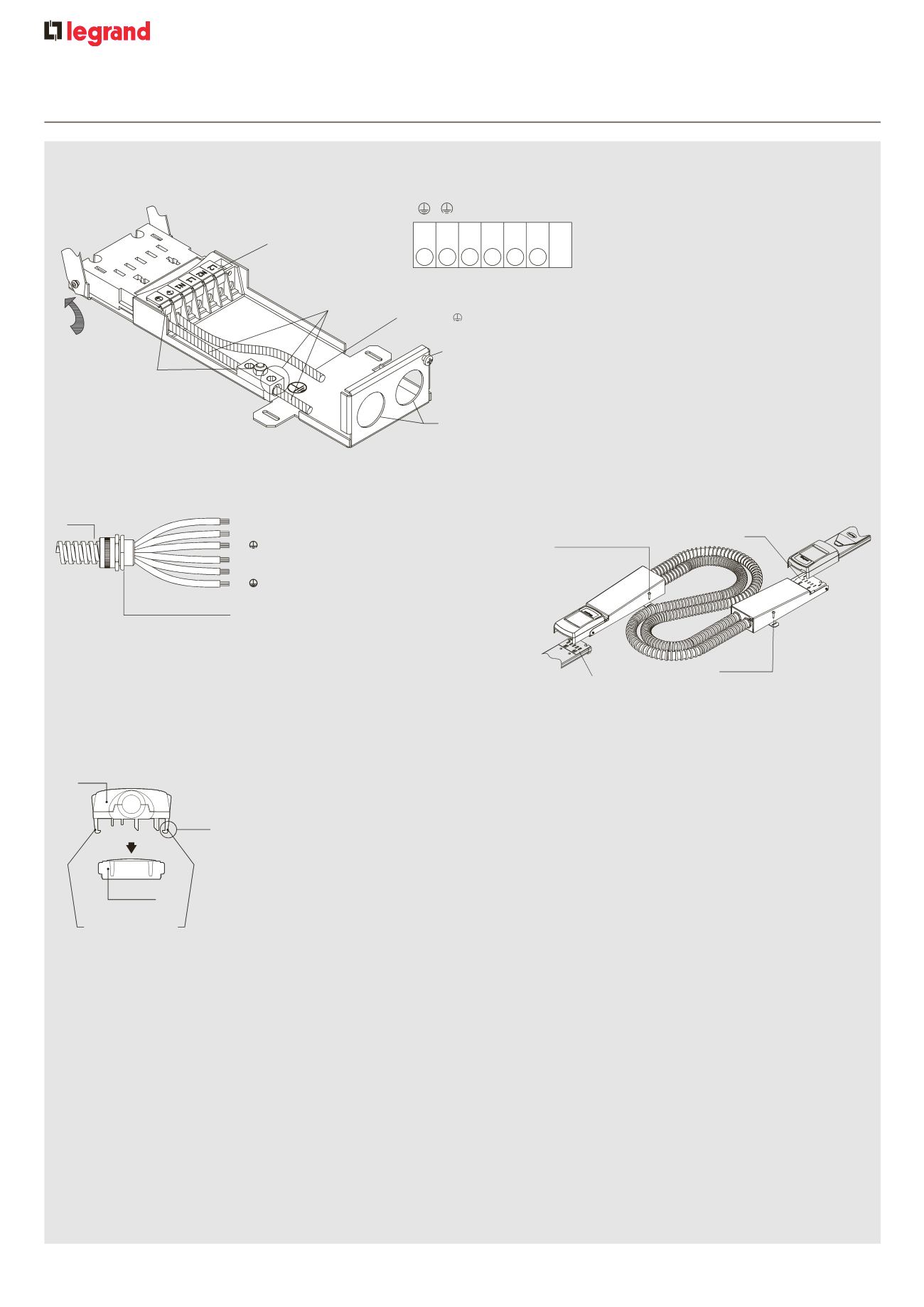

Dual circuit feeder unit (Cat. No. 820901) Sub-cabling
N1 L1
N2 L2
PE
CE
N1
L1
N2
L2
Feeder unit protective earth
terminal and earth bond
Lift terminal tab to access
terminal screws and close
after use
Lift lid
Protective earth must
always be connected via
the earth terminal block
Close lid and secure with lid
fixing screw before power up
25 mm Ø cable
conduit fixing hole
Tap-off wiring
Tap-off metal
flexible conduit
20 mm Ø conduit fitting.
Tighten back nut securely
Connector terminals
Each track feed is suitable for a conductor up to
16 mm
2
. Tighten all screw terminals securely
Feeder unit box must be securely fixed to
surface before conduit or cables are attched to it
Do not power up until track is installed
Dual circuit flexible bend (Cat. No. 820902)
Track and flexible bend
boxes must be securely
fixed inline to surface so
no movement can take
place after fixing
Bend feed
entry socket.
Remove dust
cover label
Remove dust cover
from powertrack
end entry socket
before use
Screw fix to surface
Tap-off lengths are determined by the
cable and not conduit length,
e.g. a 3 m tap-off has 3 m of cable and
approximately 2·6 m of conduit length
WARNING
Extend metal flexible conduit to
its full length before terminating
cables. Ensure metal conduit is
earth bonded
Clean earth
Legrand powertrack systems
technical data
(continued)
n
Product configuration – dual circuit
