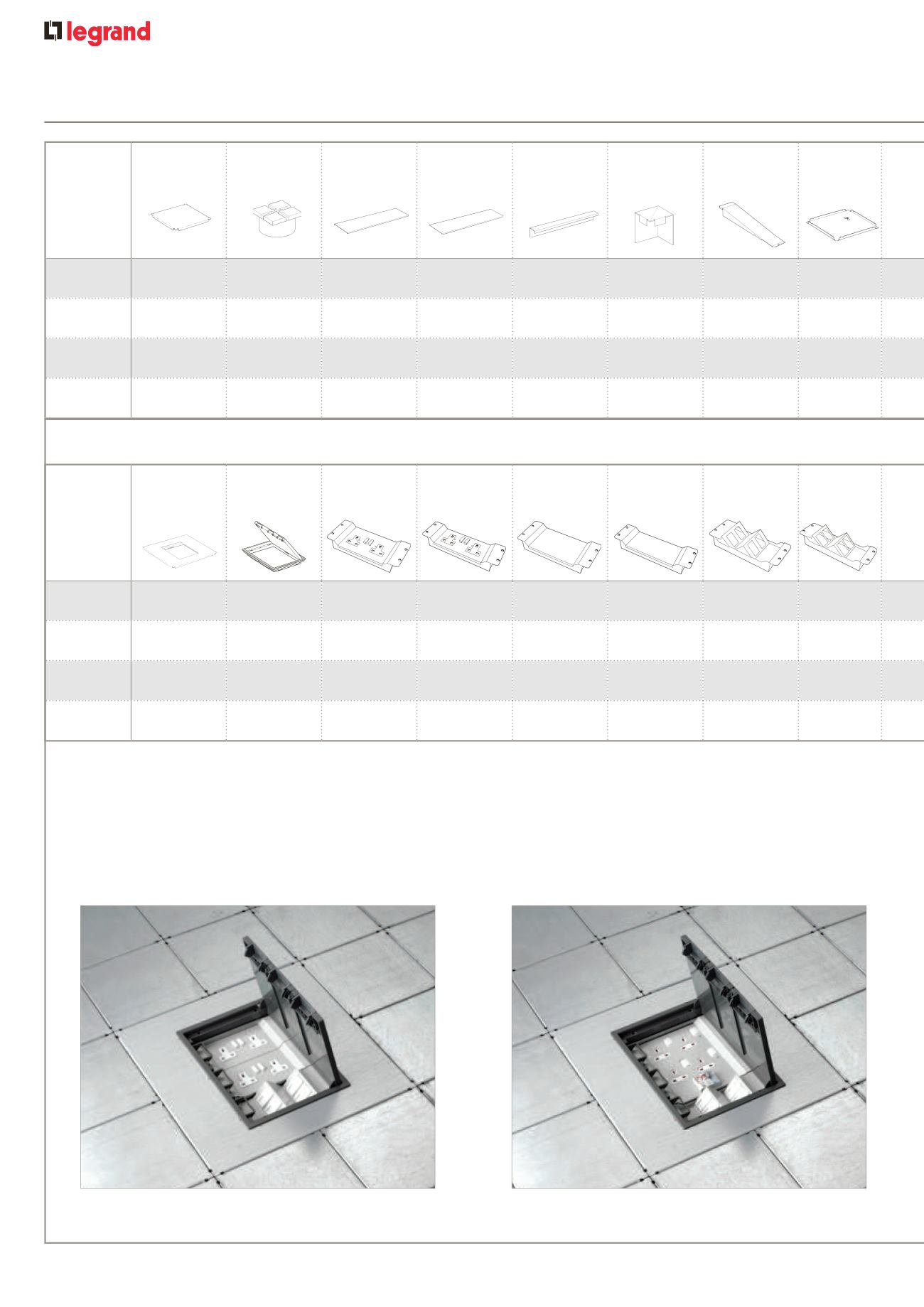

Legrand floor and perimeter systems technical guide - page 48

48
Height
(mm)
Floor box tile Floor box
lid + trim
3 comp.
twin socket
module
4 comp.
twin socket
module
3 comp.
blank
module
4 comp.
blank
module
3 comp.
data module
4 comp.
data module
37 - - - - - - - -
60 84090 81 8218 21 8218 22 8218 23 8218 24 8218 25 8218 26 8218 27
90 84090 81 8218 21 8218 22 8218 23 8218 24 8218 25 8218 26 8218 27
120 84090 81 8218 21 8218 22 8218 23 8218 24 8218 25 8218 26 8218 27
Height
(mm)
Tile Support Double edge
plate
Single edge
plate
Step Step corner Ramp Earthing tile
37 84000 10 84037 00 84000 60 84000 61 84037 22 84037 30 84037 40 84000 20
60 84000 10 84060 00 84000 60 84000 61 84060 22 84060 30 84060 40 84000 20
90 84000 10 84090 00 84000 60 84000 61 84090 22 84090 30 84090 40 84000 20
120 84000 10 84120 00 84000 60 84000 61 84120 22 84120 30 84120 40 84000 20
n Floor boxes with lid and trim assemblies :
Suitable for 60, 90 and 120 mm systems Specials also available, including RCD and RCBO options to
comply with 17th Edition requirements
1 : For use with accessory outlet tile or cable outlet tile
2 : For use with accessory outlet tile. Standard version shown. Requires back box, Cat. No. 8218 30. Other configurations available to special order.
Contact us on +44 (0) 870 608 9020
Soluflex® cavity floor system
selection chart
