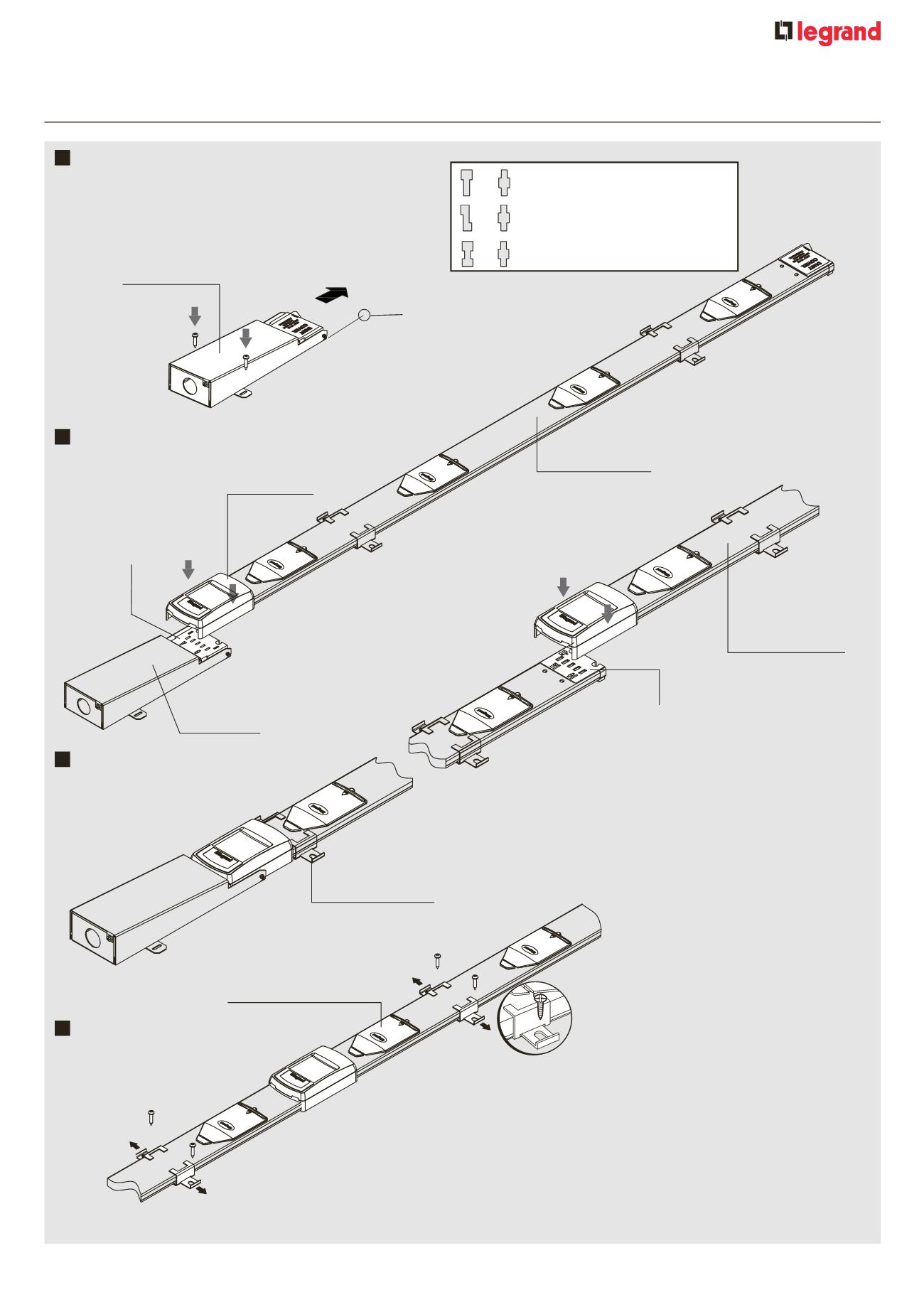

Legrand powertrack systems
installation instructions
1
Fix feeder unit to surface
Pull out track fixing
bracket lugs and screw
fix on both sides
Tap-off outlets
reusable plastic
dust covers
First track
fixing bracket
Powertrack and
integral track
connector
Track length
Feeder unit
Make chalk line to
align track lengths
Direction of
track run
Integral track
connector
Push down
Push down
Remove
dust cover
Feeder unit
Remove dust cover
before connecting
track connector
Make sure track
connector clips are
fully pushed home on
both sides of track
All integral track fixing brackets
must be fixed to surface at 1·2 m
fixing centres from first bracket
on each track length
NOTE
Track fixing brackets are for slab
mounting only
2
Connect track length to feeder unit
3
Connect additional track lengths
4
Secure track lengths to surface
All dimensions (mm) are nominal
Fit feeder unit to surface first
Standard powertrack plug-in code
Clean earth powertrack plug-in code
Dual circuit powertrack plug-in code
