Pack
Cat. Nos.
Floor components
(continued)
Step corner
Width 900 mm
Height
(mm)
1
8403730 37
1
8406030 60
1
8409030 90
1
8412030 120
Ramp
10% incline
Height
Length
Width
(mm)
(mm)
(mm)
1
8403740 37
400 112
1
8406040 60
616 112
1
8409040 90
898 112
1
8412040 120 1 181 112
Cable management floor system
225 x 225 mm tiles manufactured from pre-galavanised steel with
13 mm return
Integrated earthing design
Click fit, no fixings required
Supports manufactured from recycled polypropylene
Pack
Cat. Nos.
Floor components
Tile
1
8400010 225 x 225 mm floor tile
Floor supports
1
8403700 37 mm height
(35 mm support – 37 mm inc. tile)
1
8406000 60 mm height
(58 mm support – 60 mm inc. tile)
1
8409000 90 mm height
(88 mm support – 90 mm inc. tile)
1
8412000 120 mm height
(118 mm support – 120 mm inc. tile)
Earthing tile
1
8400020 225 x 225 mm
Earthing clamp 6 mm
2
(max.)
1 earthing tile per 100 mm
2
Edge plates
Used to finish installation against wall
Trim to size on site
1
8400060 900 x 300 mm double edge plate
1
8400061 900 x 300 mm single edge plate
Step
Width 900 mm
Height
(mm)
1
8403722 37
1
8406022 60
1
8409022 90
1
8412022 120

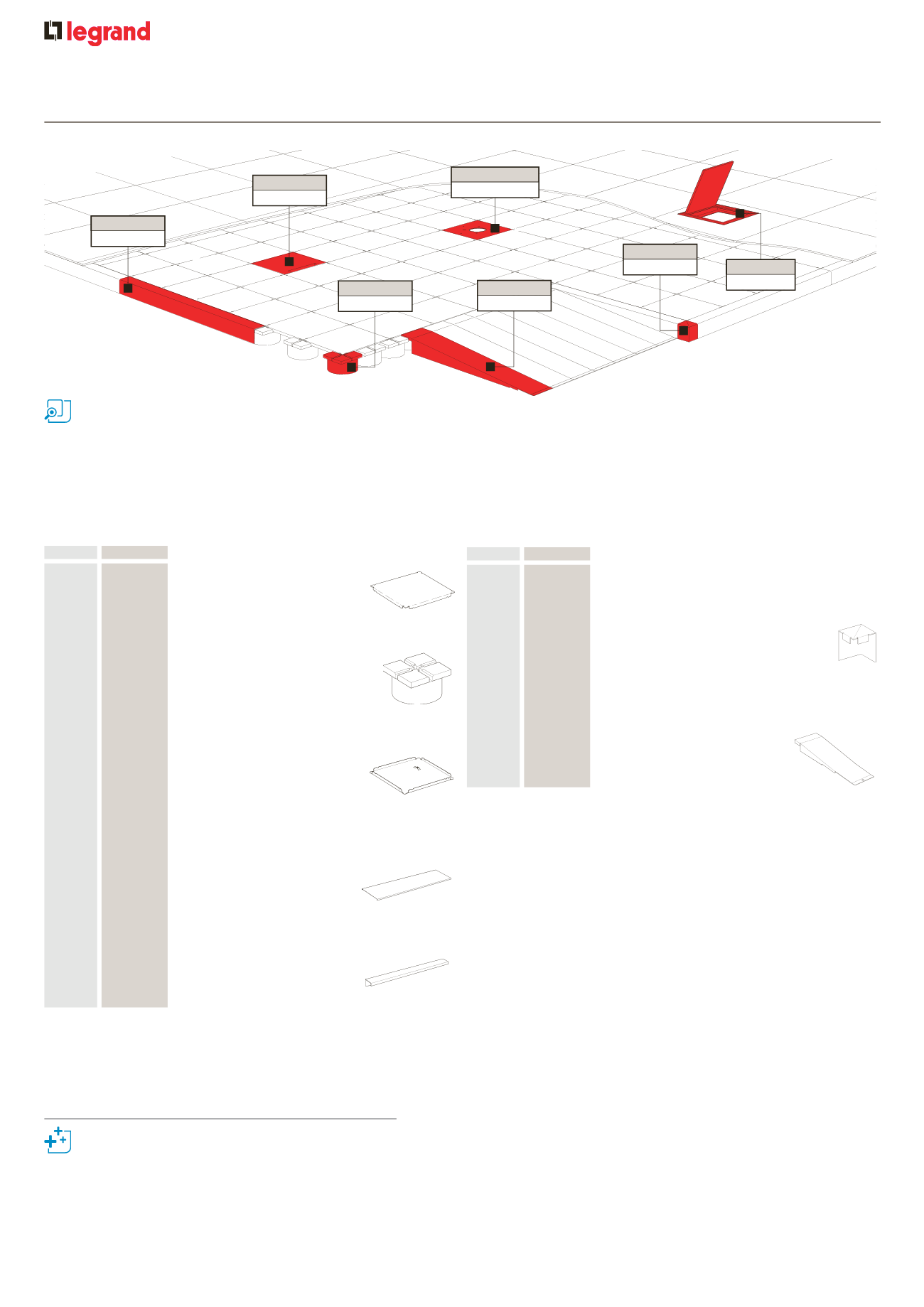

Floor box tile
8409081
Ramp
8406040
Support
8406000
Cable outlet tile
8400030
Accessory outlet tile
8400040
Step corner
8406030
Step
8406022
Soluflex
®
ultra low cavity floor system
Now also available in 50, 70, 80 and 150 mm
heights
