cavity floor service outlet boxes
technical information
n

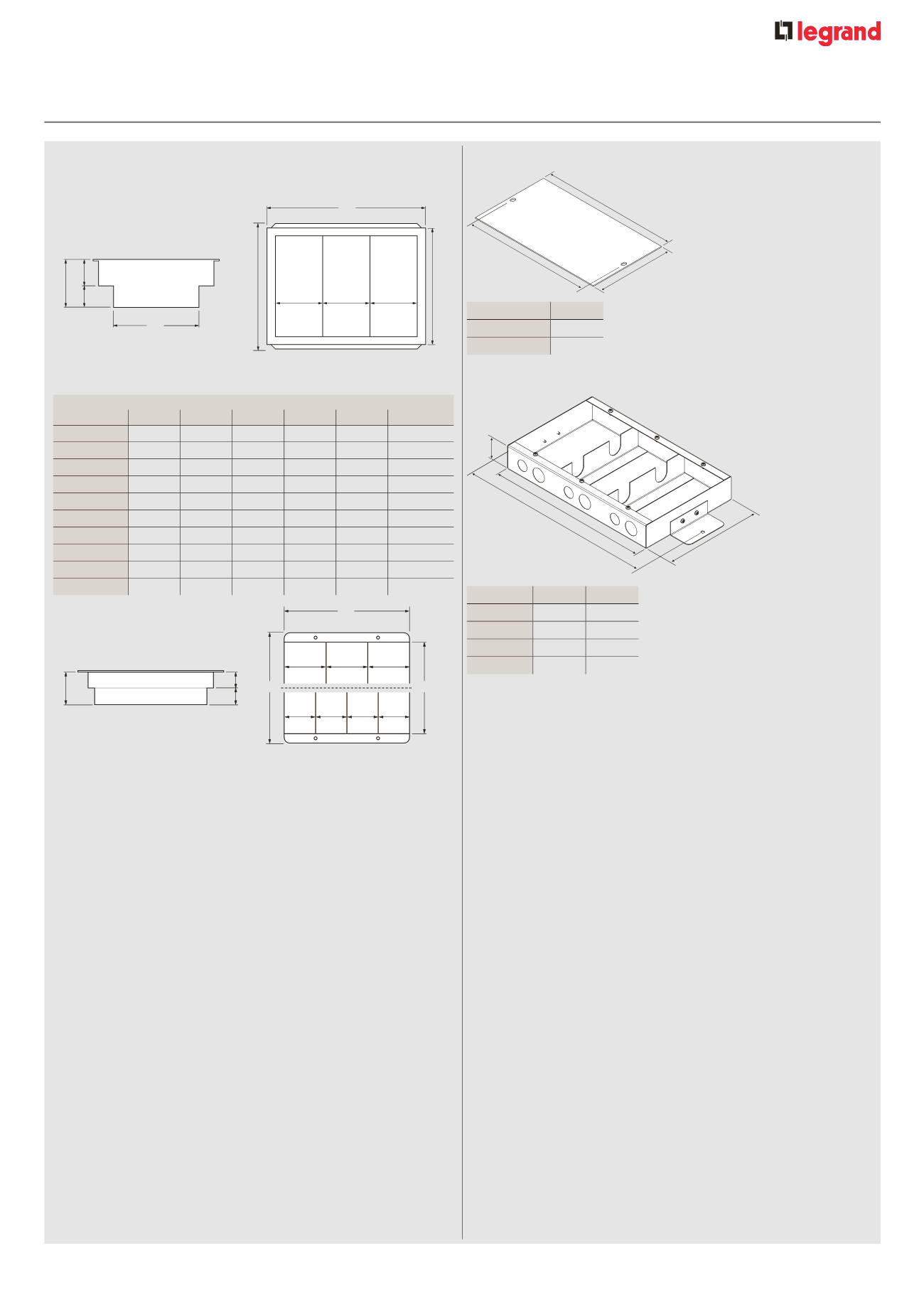

Cavity floor service outlet boxes
Floor box bases
Cat. Nos. CAV1..., CAV2..., CAV3... and CAV4...
L
C
D
B
229
3 compartment
4 compartment
100
75 75 75 75
W
100
100
Contractor floor box (Cat. No. CB3)
Cut-out 302-304 mm x 219-221 mm
315
87
87
87
246
232
85
46
35
132
All dimensions (mm) are nominal
Cutout
D
B
C
W
L
Plate Size
CAV185
85
45
40
165
203
100
CAV275
75
35
40
263
203
100
CAV285
85
45
40
263
203
100
CAV2110
110
45
65
263
203
100
CAV375
75
35
40
340
203
100
CAV385
85
45
40
340
203
100
CAV3110
110
45
65
340
203
100
CAV475
75
35
40
340
203
75
CAV485
85
45
40
340
203
75
CAV4110
110
45
65
340
203
75
A
B
184 mm
45 mm
n
Slab boxes
A B
Slab 1
102 162
Slab 2
202 262
Slab 3
302 362
Slab 4
302 362
n
Outlet plates
A
172 mm
162 mm
A
1, 2, 3 comp.
100
4 comp.
75
Cat. No.
Cat. No.
