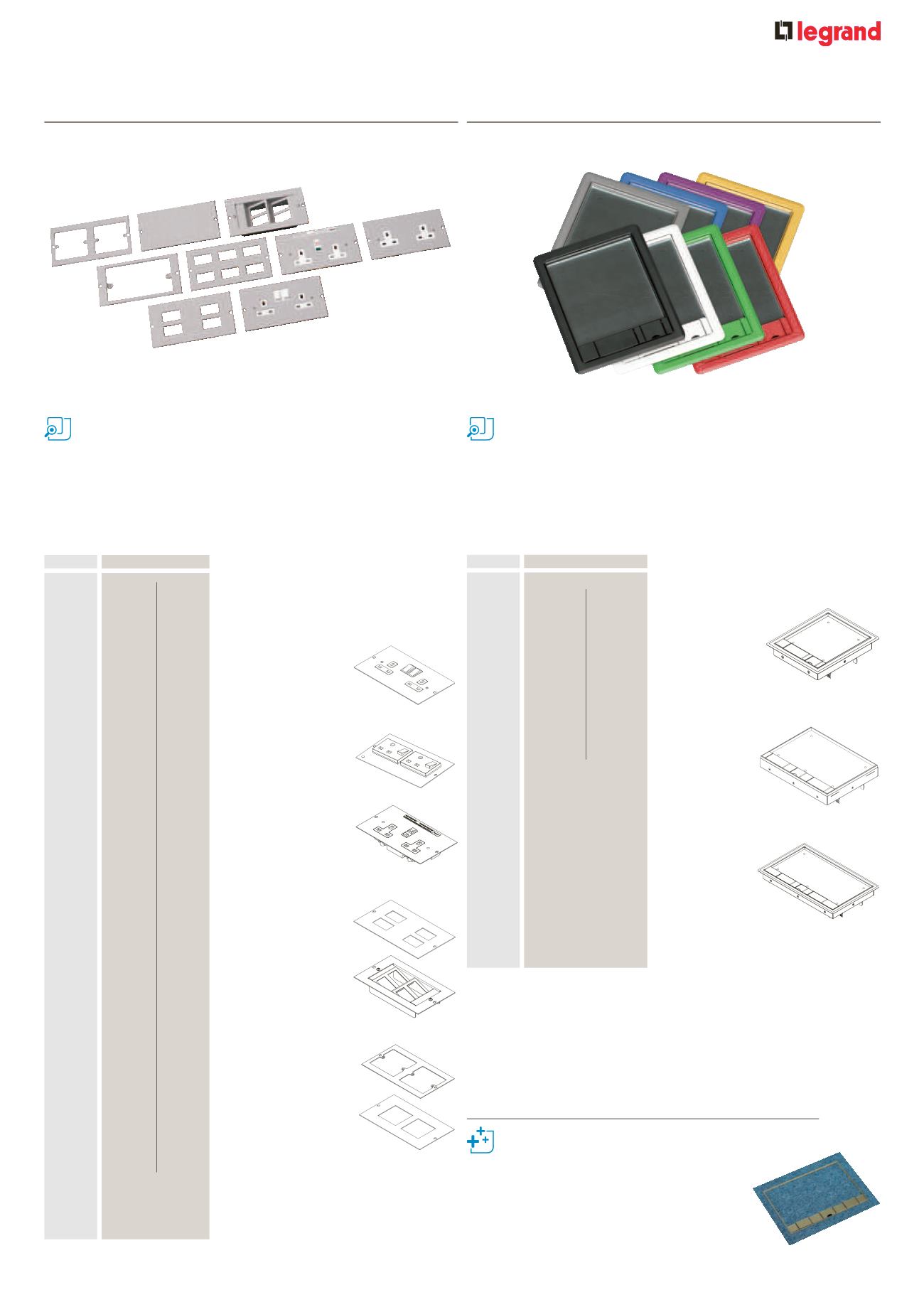

27
Pack
Cat. Nos.
Power and data plates
1,
2, 3 comp. 4 comp.
100 mm wide 75 mm wide
13 A standard socket plates
1
SP3201 SP4201 Twin switched
1
SP3200 SP4200 Twin unswitched
1
SP3211 SP4211 Twin switched – clean earth
1
SP3300 SP4300 Triple unswitched
1
SP3310 SP4310 Triple unswitched –
clean earth
13 A non-standard socket plates
1
SP3221 SP4221 Twin NS switched
1
SP3231 SP4231 Twin NS switched –
clean earth
RCD socket plates
Double pole 30 mA passive
will not trip in event of
power failure. Eliminating
need to manually reset all
units after power failure
1
SP3202 SP4202 2 gang
1
SP3212 SP4212 2 gang – clean earth
Data plates
1
SP3203 SP4203 37 x 22 mm – 2 cut-outs
1
SP3403 SP4403 37 x 22 mm – 4 cut-outs
1
SP3404 SP4404 37 x 22 mm – 4 cut-outs
(wave plate)
1
SP3603 SP4603 37 x 22 mm – 6 cut-outs
1
SP3408 SP4408 47·5 x 23·5 mm – 4 cut-outs
General
1
SP3205
-
2 x standard single outlet 60·3 mm
1
SP3105
-
Standard 2 gang
outlet plate 120·6 mm
1
SP3106 SP4106 51 x 51 mm –
1 cut-out plate
1
SP3206 SP4206 51 x 51 mm –
2 cut-out plate
1
SP3000 SP4000 Blank plate
1
SP3107 SP4107 58 x 53·5 mm – 1 cut-out
plate to accept Arteor
mounting frame (Cat. No. 576016)
(1)
1
SP3207 SP4207 58 x 53·5 mm – 2 cut-outs plate to accept
2 x Arteor mounting frames
(Cat. No. 576016)
1
Fasteners
50
SPSCREW M3·5 x 6 spare socket plate screws
Plates to fit 1, 2 and 3 compartment boxes are all 100 mm wide
Plates to fit 4 compartment boxes are 75 mm wide
Non-standard sockets have a round earth pin
Due to overall depth, RCD sockets and wave type data plates will NOT fit
in the flush floor and shallow flush floor ranges (Cat. Nos. FFO/AFS)
When using with underfloor duct systems (Cat. No. AFU) the outlet box
must be raised by 8 mm from the lowest point to allow for wiring
Moulded lids and trims are manufactured from durable ABS and feature a
quick fit / release ratchet system
ABS lid and trim versions are supplied with 6 mm carpet recess
Metal lid and trim versions are supplied with 8 mm recess
Stainless steel is satin finish as standard
Brass is polished finish as standard
1: For Arteor mounting frames, refer to the latest
Wiring Devices catalogue
Pack
Cat. Nos.
Floor box lids and trims
1 and 2 compartment
1 comp.
2 comp.
Carpet trim
1
–
FBL2ABS ABS
1
FBL1MCT FBL2MCT Metal – grey
1
FBL1SCT FBL2SCT Stainless steel
1
FBL1BCT FBL2BCT Brass
Edge trim
1
–
FBL2COM ABS lid/metal trim – ABS/grey
1
FBL1MET FBL2MET Metal – grey
1
FBL1SET FBL2SET Stainless steel
1
FBL1BET FBL2BET Brass
3 and 4 compartment
Carpet trim
1
FBL3ABS
ABS
1
FBL3MCT
Metal – grey
1
FBL3SCT
Stainless steel
1
FBL3BCT
Brass
Edge trim
1
FBL3COM
ABS lid/metal trim – ABS/grey
1
FBL3MET
Metal – grey
1
FBL3SET
Stainless steel
1
FBL3BET
Brass
outlet plates for floor boxes
power and data
Cavity loor outlet boxes selection chart
p. 24-25
Dimensions and technical information
p. 29
Installation details
p. 30
Cavity loor outlet boxes selection chart
p. 24-25
Dimensions and technical information
p. 29
Installation details
p. 30
Metal lids and trims can be powder coated to any
RAL reference. Other options, such as lockable lids,
are available to special order
Contact us on +44 (0) 870 608 9020
lids and trims for floor boxes
