17
All dimensions (mm) are nominal
n
Compliance
A steel perimeter trunking system with strength and rigidity
manufactured using pre-galvanised steel to BS EN 10346 : 2009
grade DX51D. Manufactured to BS EN 50085-2-1 : 2006 in
BS EN ISO9001 : 2008 and BS EN ISO14001 : 2004 approved facilities
Trunking is supplied as standard powder coated with LSF powder to
RAL 9010 “Pure White” with a safety return edge
Covers are supplied as push-fit and are designed to give excellent earth
continuity without extra components
Classification to BS EN 50085-1 : 2005 and BS EN 50085-2-1 : 2006
Clause 6.2
According to resistance to impact for installation and
application :
Impact 2·0J when used in conjunction with IK 07 accessories
Clause 6.3
According to temperatures given in the table below :
Clause 6.4
According to resistance to flame propagation :
Non-flame propagating
Clause 6.5
According to electrical continuity characteristic :
CTS with electrical continuity (maximum linear impedance 1·0
milliohms per metre)
Clause 6.6
According to electrical insulating characteristic :
CTS without electrical insulating characteristic
Clause 6.7
According to degree of protection provided by enclosure
according to BS EN 0529 : 1991 :
IP 30 – standard range
IP 40 – when used with IP 40 accessories
Clauses 6.9
According to system access cover retention :
CTS access cover which can only be opened with a tool when
installation is complete
Clause 6.10
According to electrically protective separation :
CTS without internal protective partition
Clause 6.101
According to position when surface mounted :
CTS surface mounted on wall
Clause 6.103
According to the functions provided :
Type 2 CTS (installation)
n

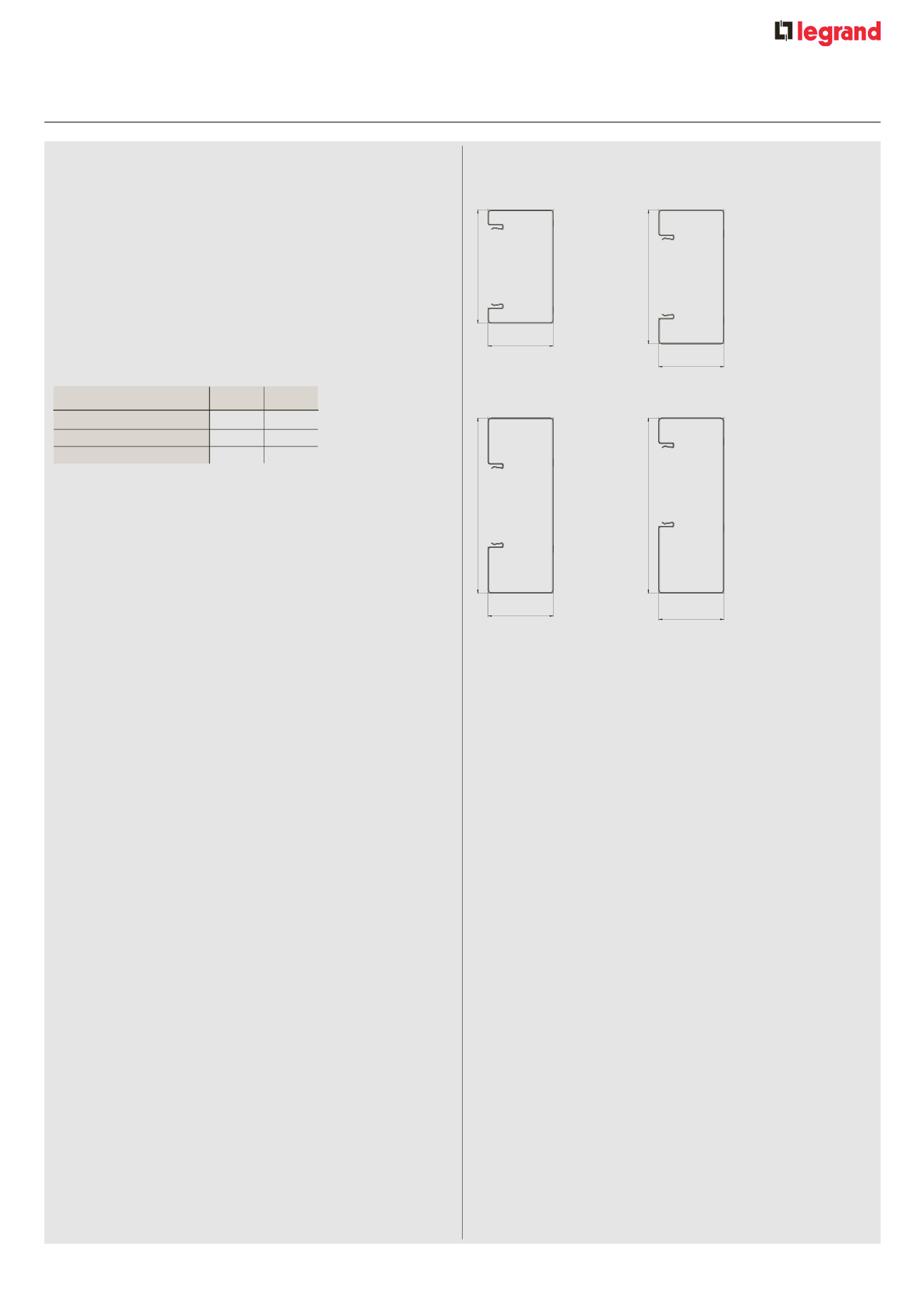

Sizes available
There are four sizes of body within the range, these are :
110 x 63 mm
Min.
Max.
1. Storage and transport
-25°
-
2. Installation
-15°
-
3. Application
-
+60°
110
63
130
63
170
63
170
63
steel perimeter trunking
technical information
110, 130, 170 and 170A systems are all suitable for dado applications
170 and 170A are also suitable for skirting applications
Ensure clearance between trunking body and floor finish is allowed to fit
the cover straps etc
Each of these sizes can be configured with 2 or 3 compartments with the
option of a base divider giving a maximum potential of 4 compartmented
areas within the trunking
130 x 63 mm
170 x 63 mm
170A x 63 mm
