15

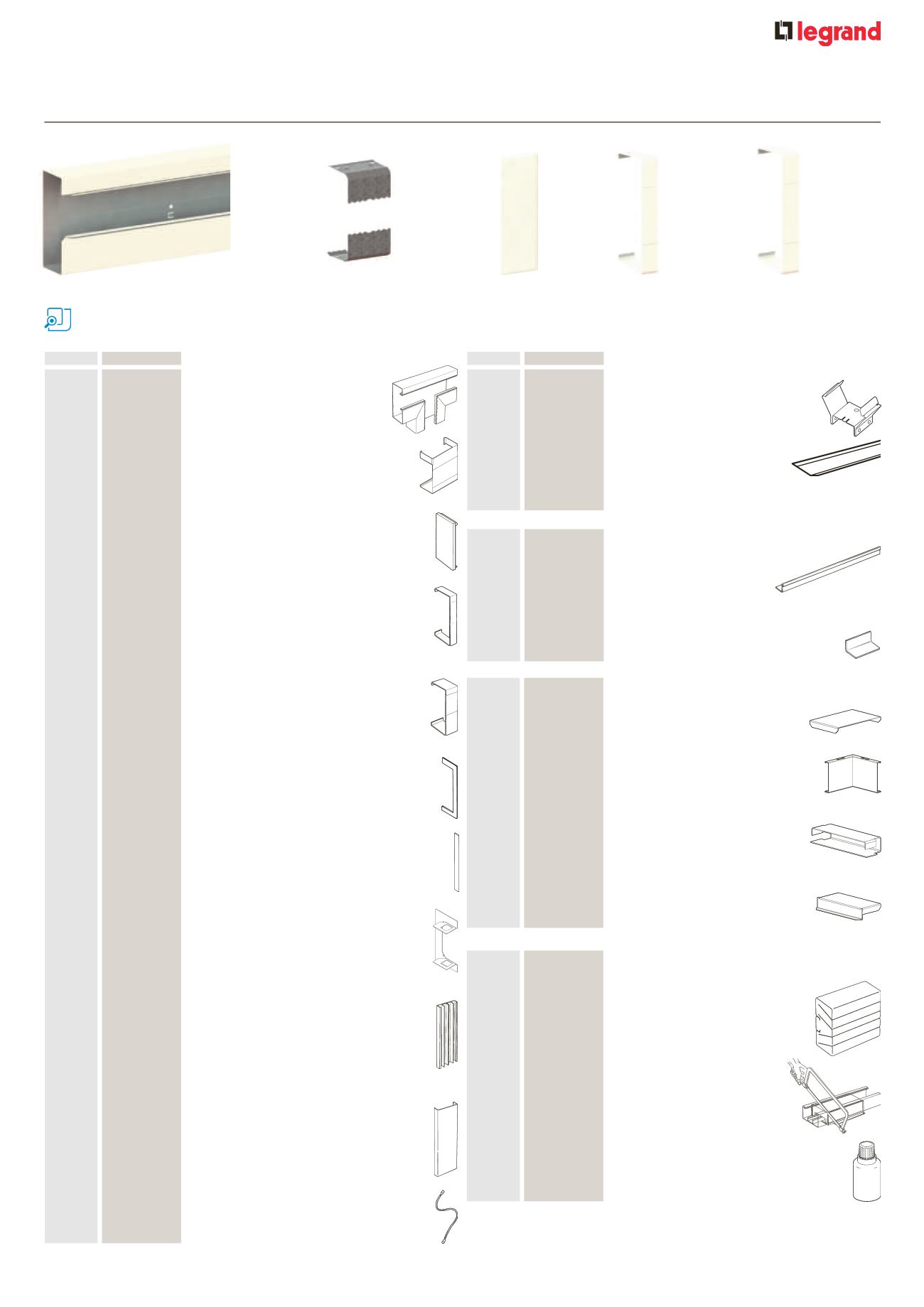

steel perimeter trunking system – 170A x 63 mm (with offset opening)
for dado or skirting applications
(continued)
Pack
Cat. Nos.
Fittings
(continued)
Tee body descending
9
1
MP351427 Requires 3 pairs of couplers
Cat. No. MP351527 (opposite)
Decending to 170 mm trunking
Tee cover strap
For use when –
1
MP351567 Rising to 170mm trunking
1
MP351597 Rising to 130mm trunking
1
MP351046
End cap
B
Cover strap
C
10
MP351107 Width – 25 mm
Tolerance cover strap
D
8
MP351077 Width – 40 mm
1
MP351486
Wall flange plate
E
1
MP351516
Wall flange closing plate
F
1
MP351456
Support flange
Riser trunking body 170 x 38 mm
1
G
1
MP351409 Pre-galvanised
Length – 2 m
Riser trunking lid
H
1
MP351439 Friction fit
Length – 1·0 m
Earthing wire
1
MP351499 Length – 300 mm
Pack
Cat. Nos.
Regular power and data separation
Universal snapper clip
1
I
20
MP351319 Multifunction clip for fitting of divider,
separation of cables (50 mm) and
additional support of lid
Divider
1
K
10
MP351189 Requires universal snapper clip
Cat. No. MP351319
Length – 1 m
Additional partition for the base
Base divider
1
10
MP351289 Fixing bracket required (below)
Length – 2 m
Height – 45 mm, for type 170/170A
Base divider fixing bracket
1
10
MP351309 Height = 44 mm, for type 170/170A
1 per metre required
Additional products IP 40 / IK 07
Internal lid support
1
1
MP351469 Fits inside lid joints to acheive IP 40
Internal bend lid
1
MP351250 To achieve IP 40 on internal bends
End support bracket
1
5
MP351449 Provides additional lid support
at end of run
Use to achieve IK 07
Tee support bracket
1
5
MP351459 Fits inside lid joints to acheive IP 40
at tee junction
Accessories
Acoustic insulation block
J
For use when trunking passes
through walls to reduce noise travel
1
MP351399 Self extinguishing plastic
Acoustic tested according to
NEN 5077/ISO 140/4
Cutting support block
1
MP351536 Holds trunking in position and
guides saw for a straight cut
Steel
Touch-up paint
1
MP351029 Contents – 10 ml
Selection charts
p. 6-7
Dimensions and technical information
p. 17-21
Installation material
p. 21
1: Internal components supplied unpainted
MP351046
MP351527
MP351107
MP351077
MP351247
