14
Pack
Cat. Nos.
Fittings
(continued)
Internal bend body
4
1
MP351277 Requires 2 pairs of couplers
Cat. No. MP351527 (opposite)
External bend body
5
1
MP351307 Requires 2 pairs of couplers
Cat. No. MP351527 (opposite)
1
MP351240
External bend lid
6
Flat bend body rising
7
1
MP351337 Requires 2 pairs of couplers
Cat. No. MP351527 (opposite)
Flat bend body decending
1
MP351367 Requires 2 pairs of couplers
Cat. No. MP351527 (opposite)
Flat bend lid
8
2
MP351260 Suitable for rising or desending
bend body
Tee body rising
1
MP351397 Requires 2 pairs of couplers
Cat. No. MP351527 (opposite)
Rising to 130 mm trunking
Pack
Cat. Nos.
Trunking body
2
MP351247 Length – 3 m
With offset opening for easier
plug insertion and removal
in skirting applications
Lid
1
1
MP351230 Length – 1·5 m
1
MP351220 Length – 100 mm
For use as a spacer in
between wiring accessories
Fittings
Couplers
1
2
10
MP351527 Supplied in pairs
Zinc plated
Universal internal/external bend lid 90° +/- 5°
3
1
MP351177 Complete with integral coupler
Internal bend cover straps 135°- 180°
A
1
MP351207 Complete with adjustable
coupler
1
B
9
3
3
A
7
2
C
5
4
8
D
6
E
F
G
H
J
K
I

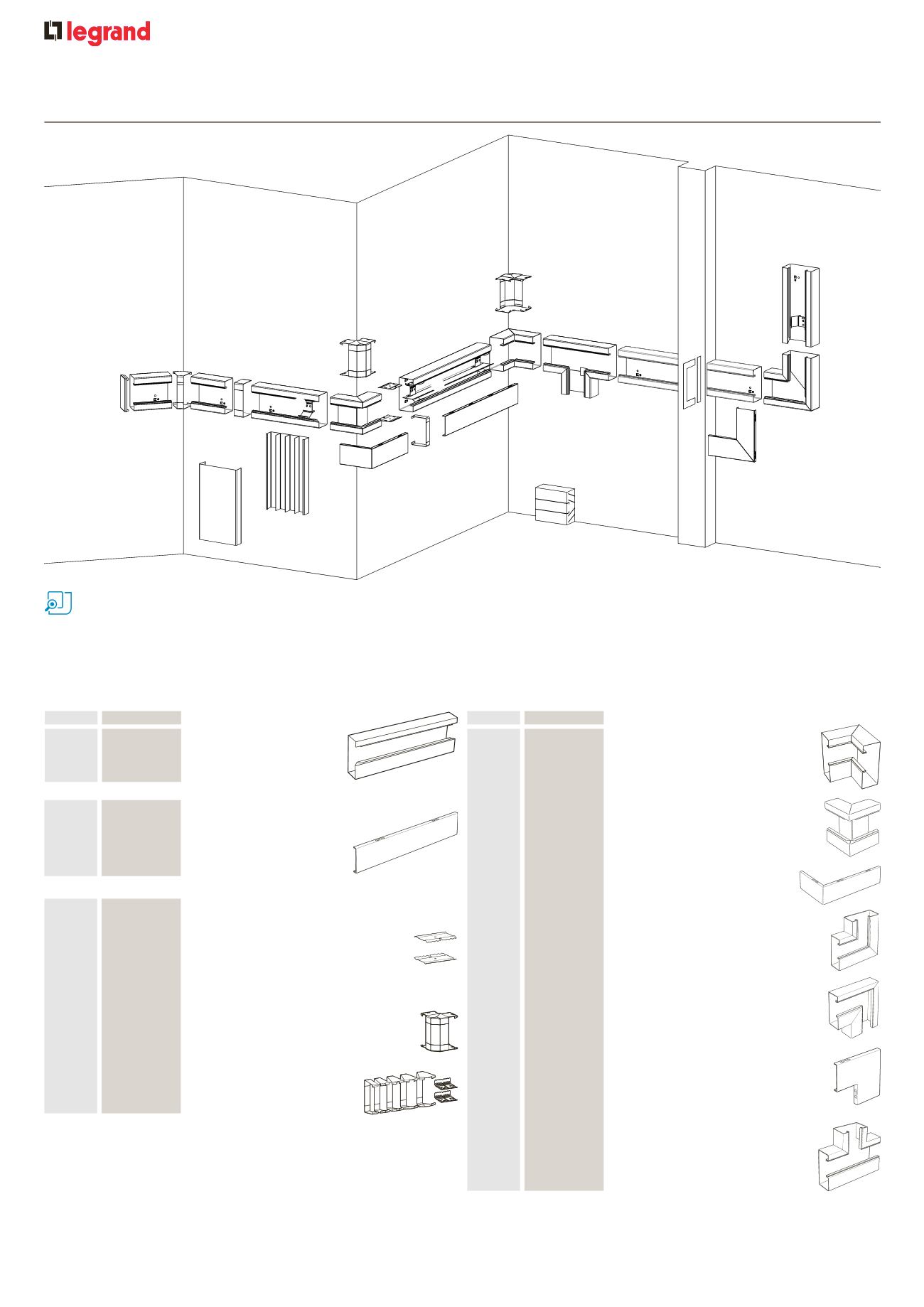

steel perimeter trunking system – 170A x 63 mm (with offset opening)
for dado or skirting applications
1: Internal components supplied unpainted
Selection charts
p. 6-7
Dimensions and technical information
p. 17-21
Installation material
p. 21
Manufactured to BS EN 50085-2-1 : 2006
Manfactured using pre-galvanised steel to BS EN 10346 : 2009 grade DX51D
Powder coated to RAL 9010
Trunking can be configured with 2 or 3 compartments with the option of a base divider giving the potential of 4 compartments
Push-fit covers are designed to give excellent earth continuity without extra components
