General Catalogue • Modular Devices

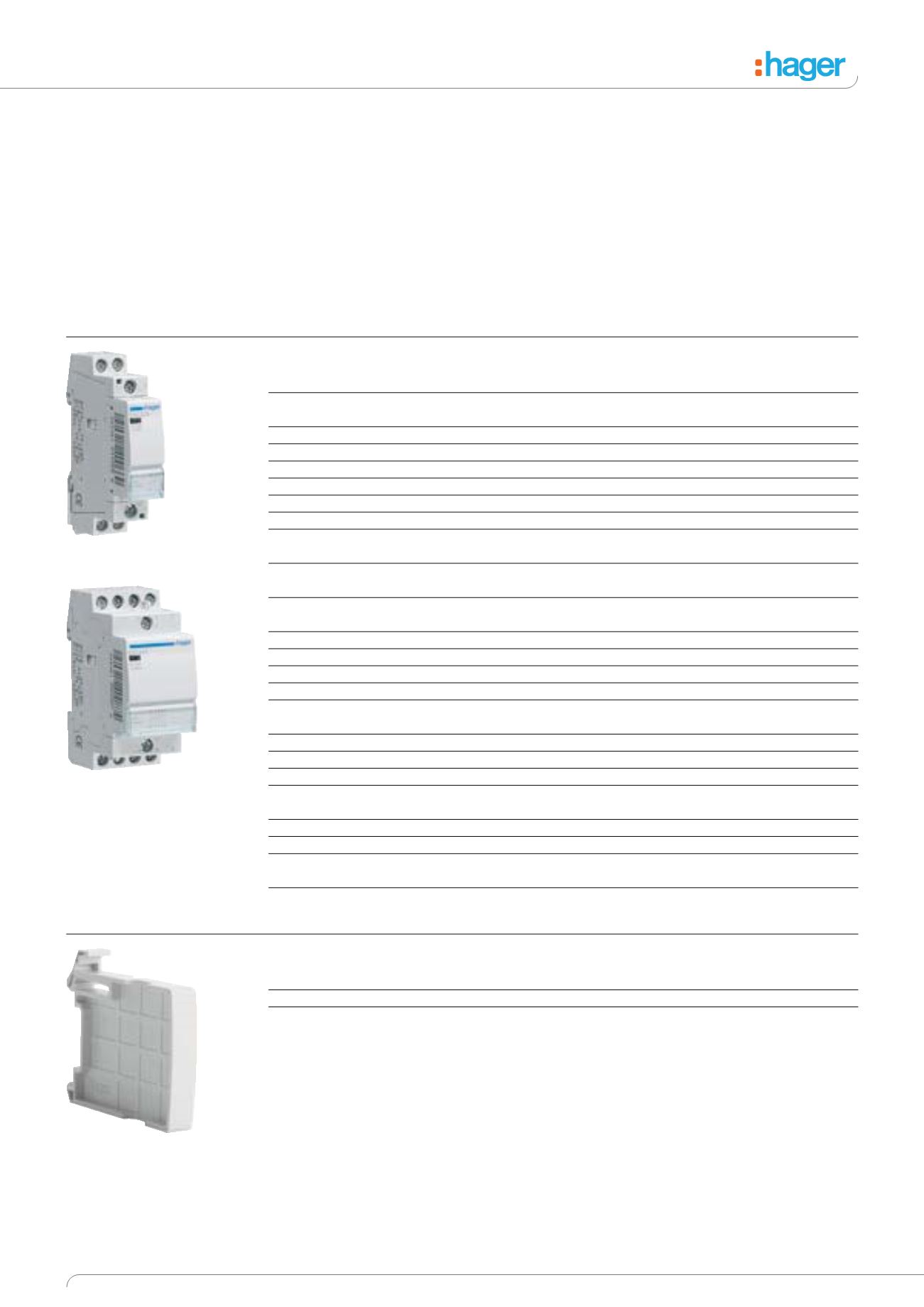

Standard Contactors
Description
For the remote switching and
control of power circuits
(25A-63A AC1)
Technical Data
The choice of contactor depends
upon a number of parameters,
e.g.
• The nature of the supply.
• The power it is switching.
• The characteristics of the load.
• The control voltage required.
• Number of operations
All contactor ratings are for AC1
loads only – if the load differs
from AC1 the contactor may
need de-rating (see technical
characteristics on page 5.37).
The use of LZ060 (heat
dissipation inserts) between all
contactors installed or
between contactors and
adjacent devices is required.
Options
Contact choice
• Normally open (NO)
• Normally closed (NC)
Auxiliary
All contactors will accept
auxiliary, ESC080 contact.
1 Mod = 17.5mm
2 Mod = 35mm
3 Mod = 52.5mm
4 Mod = 70mm
Standard Contactors
Description
Coil AC voltage
Power circuit AC1
Width
Cat ref.
25A 1NO
230V 50Hz
25A - 250V~
1 Mod
ESC125
25A 2NO
230V 50Hz
25A - 250V~
1 Mod
ESC225
25A 2NO Manual Override
230V 50Hz
25A - 250V~
1 Mod
ERC225
40A 2NO
230V 50Hz
40A - 400V~
3 Mod
ESC240
63A 2NO
230V 50Hz
63A - 400V~
3 Mod
ESC263
25A 2NO
24V 50Hz
25A - 250V~
1 Mod
ESD225
25A 2NO Manual Override
24V 50Hz
25A - 250V~
1 Mod
ERD225
40A 2NO
24V 50Hz
40A - 250V~
3 Mod
ESD240
25A 2NC
230V 50Hz
25A - 250V~
1 Mod
ESC226
25A 1NO 1NC
24V 50Hz
25A - 250V~
1 Mod
ESD227
25A 3NO
230V 50Hz
25A - 400V~
2 Mod
ESC325
25A 3NO Manual Override
230V 50Hz
25A - 400V~
3 Mod
ERC326
40A 3NO
230V 50Hz
40A - 400V~
3 Mod
ESC340
40A 3NO + 1NC
230V 50Hz
40A - 400V~
3 Mod
ESC443
63A 3NO + 1NC
230V 50Hz
63A - 400V~
3 Mod
ESC466
25A 4NO
230V 50Hz
25A - 400V~
2 Mod
ESC425
40A 4NO
230V 50Hz
40A - 400V~
3 Mod
ESC440
63A 4NO
230V 50Hz
63A - 400V~
3 Mod
ESC463
25A 4NO
24V 50Hz
25A - 400V~
2 Mod
ESD425
25A 4NC
230V 50Hz
25A - 400V~
2 Mod
ESC426
40A 4NC
230V 50Hz
40A - 400V~
3 Mod
ESC441
63A 4NC
230V 50Hz
63A - 400V~
3 Mod
ESC464
63A 2NC + 2NO
230V 50Hz
63A - 250V~
3 Mod
ESC465
Auxiliaries and Accessories
Description
Power circuit AC1
Width
Cat ref.
Heat Dissipation Insert
-
½ Mod
LZ060
NO+NC Auxiliary Contact
2A - 25V~
½ Mod
ESC080
LZ060
ESC225
ESC425
