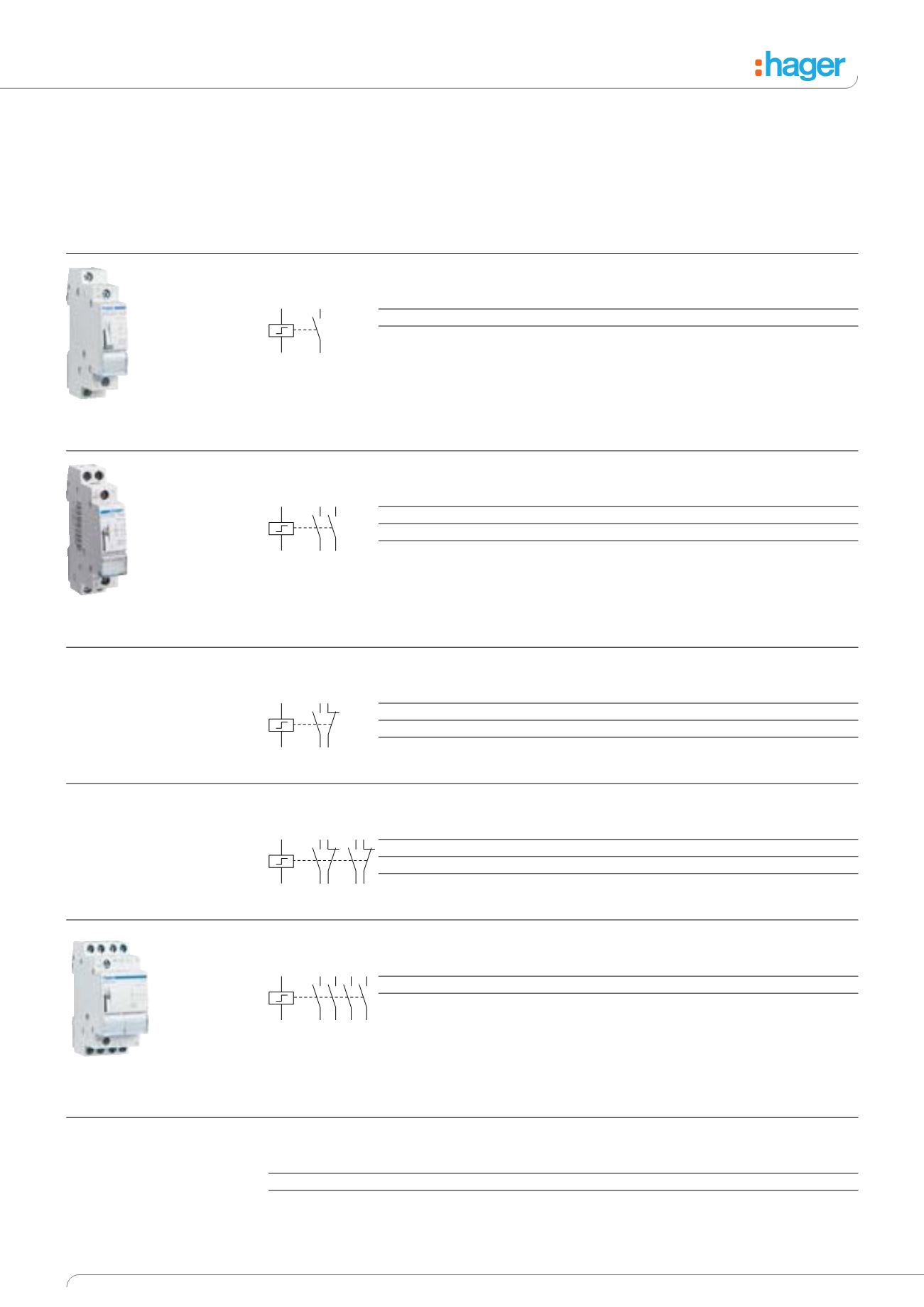

General Catalogue • Modular Devices
Latching Relays
Description
Latching relays - operate when
impulsed by a signal voltage.
The impulse can be provided via
a pushbutton or pushswitch. The
first pulse operates the relay and
latches it to its set (opposite)
state, the next operation of the
pushbutton returns the relay to
its reset (original) state.
Auxiliary Contacts
(EPN050, EPN051)
Are available for remote
signalling and centralised control
applications and can be
easily combined with the
latching relays.
Connection: 10mm
2
flexible
6mm
2
rigid
1 Mod = 17.5mm
2 Mod = 35mm
3 Mod = 52.5mm
4 Mod = 70mm
For technical details see page
5.36
Latching Relay 1 NO
Coil
Power circuit AC1
Width
Cat ref.
230V 50Hz
16A - 250V~
1 Mod
EPN510
24V 50Hz
16A - 25V~
1 Mod
EPN513
Latching Relay 2 NO
Coil
Power circuit AC1
Width
Cat ref.
230V 50Hz
16A - 250V~
1 Mod
EPN520
24V 50Hz
16A - 250V~
1 Mod
EPN524
12V 50Hz
16A - 250V~
1 Mod
EPN521
Latching Relay 1 NC + 1NO
Coil
Power circuit AC1
Width
Cat ref.
230V 50Hz
16A - 250V~
1 Mod
EPN515
24V 50Hz
16A - 250V~
1 Mod
EPN518
12V 50Hz
16A - 250V~
1 Mod
EPN519
Latching Relay 2 NC + 2 NO
Coil
Power circiut AC1
Width
Cat ref.
230V 50Hz
16A - 250V~
2 Mod
EPN525
24V 50Hz
16A - 250V~
2 Mod
EPN528
12V 50Hz
16A - 250V~
2 Mod
EPN529
Latching Relay 4 NO
Coil
Power circuit AC1
Width
Cat ref.
230V 50Hz
16A - 400V~
2 Mod
EPN540
24V 50Hz
16A - 400V~
2 Mod
EPN541
Auxiliary Contacts
Description
Power circiut
Width (8.75mm)
Cat ref.
Auxiliary Contact
2A - 250V~
½ Mod
EPN051
Auxliary Contacts for Centralised Control
110-230V~
½ Mod
EPN050
EPN510
EPN520
EPN540
