5.6

General Catalogue • Modular Devices

Interface Relays

Description

To interface between low voltage

and extra low voltage circuits to

ensure galvanic isolation to 4kV.

Application

Interface between fire alarm,

burglar alarm and other ELV

systems and main distribution

circuits.

Connection

Flexible 4mm

2

Rigid 6mm

2

1 Mod = 17.5mm

2 Mod = 35mm

3 Mod = 52.5mm

4 Mod = 70mm

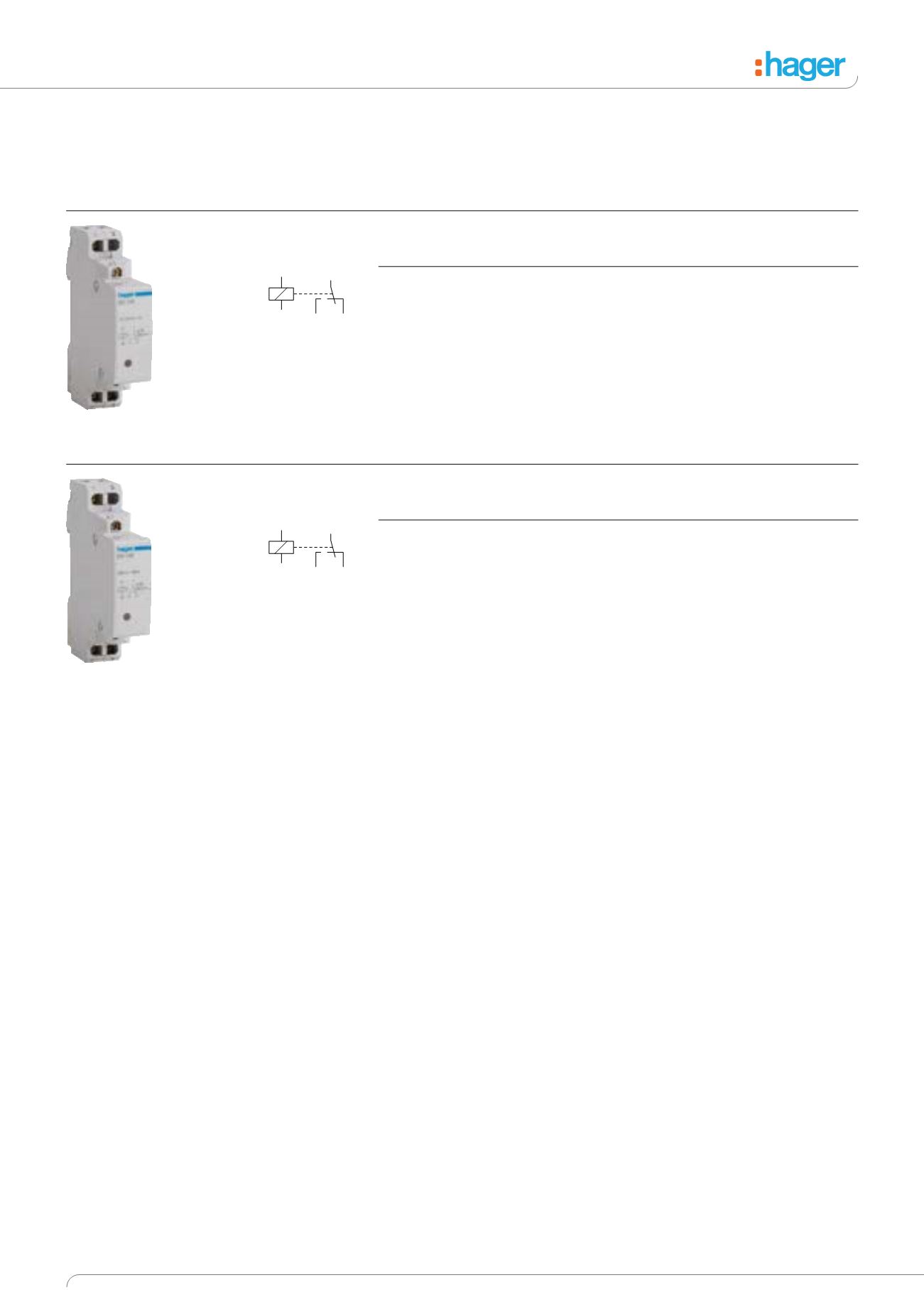

Interface Relay ELV/LV 1 Way

Characteristics

Width

Cat ref.

Coil Voltage: 10 to 26V ac/dc

1 Mod

EN145

Output: 1 Changeover Contact

Max. 5A 230V~

Min. 10mA 12V dc

A1

A2

1

1

4

Interface Relay LV/ELV 1 Way

Characteristics

Width

Cat ref.

Coil Voltage: 230V~ 50Hz

1 Mod

EN146

Output: 1 Changeover Contact

Max. 5A 230V~

Min. 10mA 12V dc

A1

A2

1

1

4

EN145

EN146
