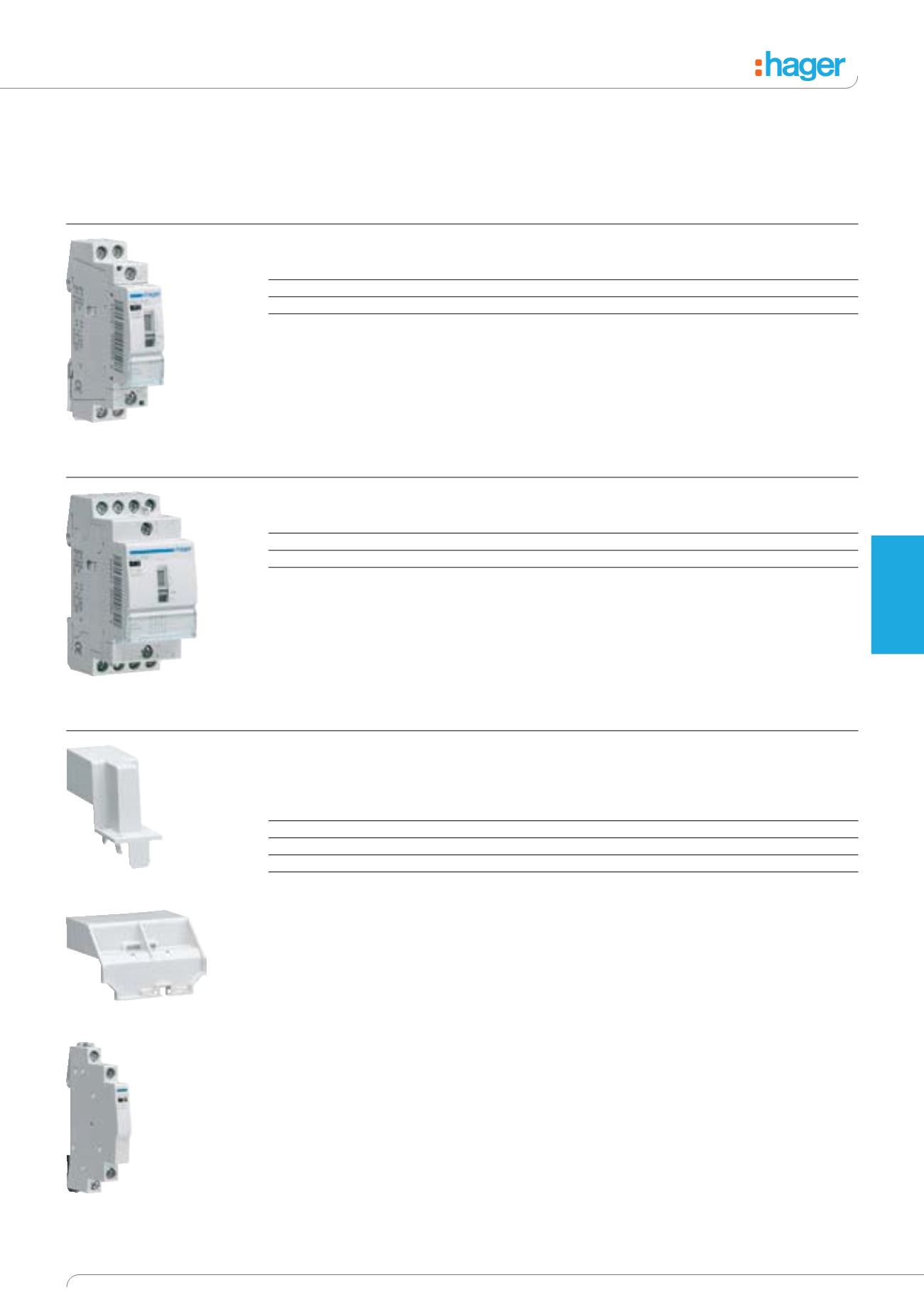

5.5
Relays
Description
To provide control of low power
circuits max 16A; associated
with switches, time switches etc
for remote control applications.
The relays will accept an
auxiliary contact for remote
signalling applications (ESC080).
For the command of ELV circuits
use interface relays EN145 and
EN146.
For the command of high power
circuits (20, 40 & 63 Amps) use
contactors as shown on
page 5.7 - 5.9.
1 Mod = 17.5mm
2 Mod = 35mm
3 Mod = 52.5mm
4 Mod = 70mm
Relays 1 NC + 1 NO
Coil AC Voltage
Power circuit AC1
Width (17.5mm)
Cat ref.
230V 50Hz
16A - 250V~
1 Mod
ERC218
24V 50Hz
16A - 250V~
1 Mod
ERD218
8/12V 50Hz
16A - 250V~
1 Mod
ERL218
Relays 2 NC + 2 NO
Coil AC Voltage
Power circuit AC1
Width (in 17.5mm)
Cat ref.
230V 50Hz
16A - 250V~
2 Mod
ERC418
24V 50Hz
16A - 250V~
2 Mod
ERD418
8/12V 50Hz
16A - 250V~
1 Mod
ERL418
Auxiliaries and Accessories
Can be used with SPN* modular switch range and relays
Description
Power circuit AC1
Width
Cat ref.
Sealable Terminal Cover for 1 Module Contactors
-
-
ESC001
Sealable Terminal Cover for 2 Module Contactors
-
-
ESC002
Sealable Terminal Cover for 3 Module Contactors
-
-
ESC003
1NO + 1NC Auxiliary Contact
6A - 250V~
½ Mod
ESC080
ERD218
ERC418
ESC001
ESC002
ESC080
Modular
Devices
