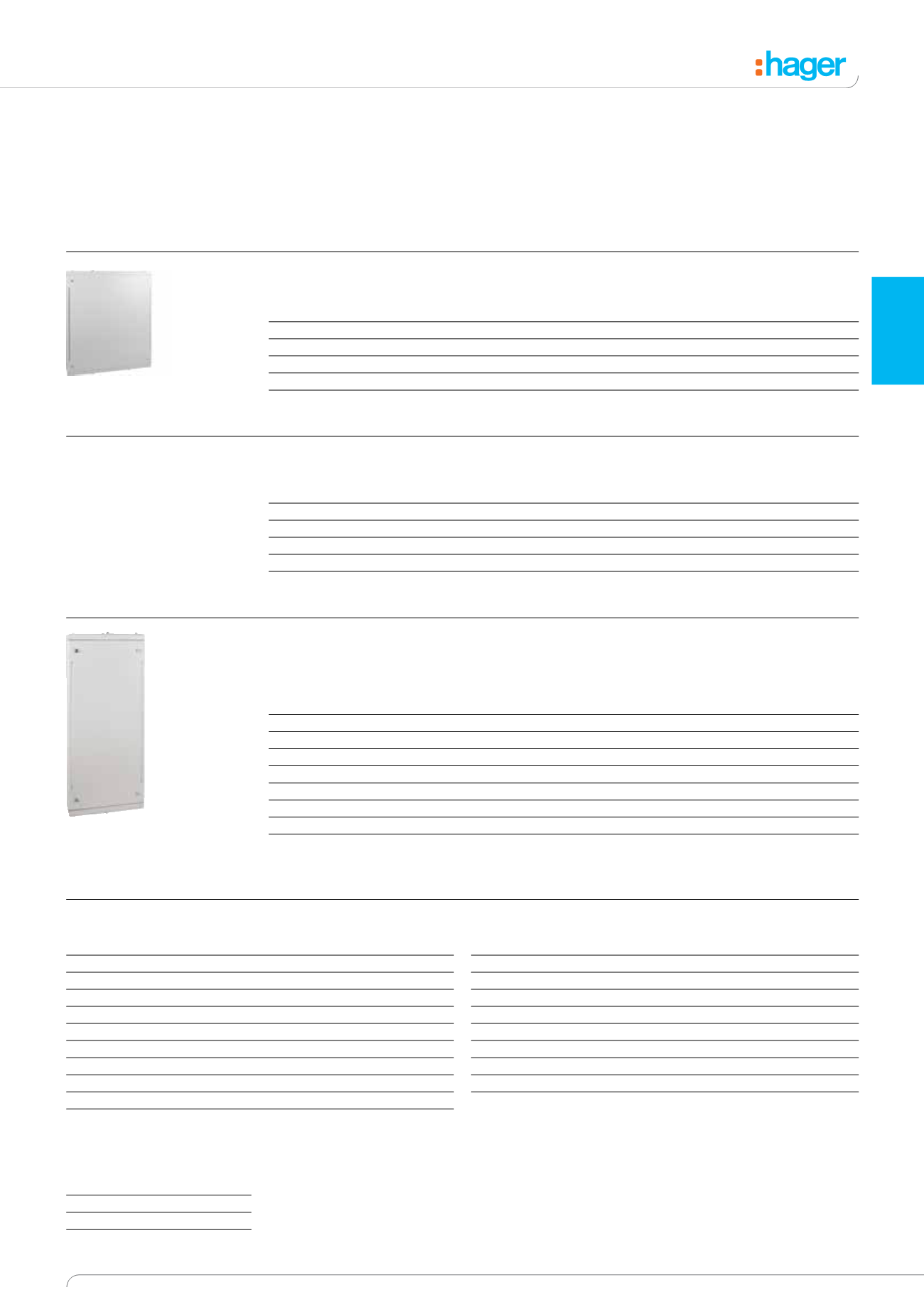

3.17
invicta 3 Type B Distribution Boards 125A & 250A
Side Extension Boxes
Side Extension Boxes for 125A Primary Boards
Description
Cat ref.
Plain door
4 Way Side Extension Box for JK104B Full Width
JK104BSF
6 Way Side Extension Box for JK106B Full Width
JK106BSF
8 Way Side Extension Box for JK108B Full Width
JK108BSF
12 Way Side Extension Box for JK112B Full Width
JK112BSF
16 Way Side Extension Box for JK1116B Full Width
JK116BSF
Side Extension Boxes for 250A Primary Boards
Description
Cat ref.
Plain door
8 Way Side Extension Box for JK208B Full Width
JK208BSF
12 Way Side Extension Box for JK212B Full Width
JK212BSF
16 Way Side Extension Box for JK216B Full Width
JK216BSF
18 Way Side Extension Box for JK218B Full Width
JK218BSF
24 Way Side Extension Box for JK224B Full Width
JK224BSF
Half Width Side Extension Boxes for 125/250A Primary Boards
Doors are not available.
Description
Cat ref.
Cat ref
125A
250A
4 Way Half Width Extension Box
JK104BSH
-
6 Way Half Width Extension Box
JK106BSH
-
8 Way Half Width Extension Box
JK108BSH
JK208BSH
12 Way Half Width Extension Box
JK112BSH
JK212BSH
16 Way Half Width Extension Box
JK116BSH
JK216BSH
18 Way Half Width Extension Box
-
JK218BSH
24 Way Half Width Extension Box
-
JK224BSH
Small Half Width Filler Box
JK101BSH
JK201BSH
Side extension boxes provide
a new concept for distribution
boards to allow cable ways to be
fitted on site.
These are available in either half
or full distribution board width.
They can be horizontally or
vertically attached to distribution
boards using 1 x JK100HK.
Can be used with invicta 3
Panelboards JN & JF.
* All Side Extension Boxes
supplied with 2x removable
gland plates.
For dimensions see page 3.23.
Digital Time Switches
Cat ref.
Description
EG010
1 Channel Time Switch (Daily Cycle)
EG071
1 Channel TIme Switch (Weekly Cycle)
EG103
1 Channel Time Switch (Weekly Cycle - Basic Version)
EG203
2 Channel Time Switch (Weekly Cycle - Basic Version)
EG103E
1 Channel Time Switch (Weekly Cycle - Evolution Version)
EG203E
2 Channel Time Switch (Weekly Cycle - Evolution Version)
EG493E
4 Channel Time Switch (Weekly / Annual Cycle)
EE180
1 Channel Astronomical Time Switch
EE181
2 Channel Astronomical Time Swtich
Surge Protection Devices
Cat ref.
Description
SPN140D
Single Pole 1.2kV
SPN215R
2 Poles 1ø + N 1.0kV
SPN415R
4 Poles 3ø + N 1.2kV
Low Noise Contactors
Cat ref.
Type
Coil AC Voltage
Power circuit AC1
ESC225S
25A 2NO
230V 50Hz
25A - 400V~
ESC240S
40A 2NO
230V 50Hz
40A - 400V~
ESC263S
63A 2NO
230V 50Hz
63A - 400V~
ESC325S
25A 3NO
230V 50Hz
25A - 400V~
ESC340S
40A 3NO
230V 50Hz
40A - 400V~
ESC428S
25A 3NO + 1NC 230V 50Hz
25A - 400V~
ESC425S
25A 4NO
230V 50Hz
25A - 400V~
ESC440S
40A 4NO
230V 50Hz
40A - 400V~
ESC463S
63A 4NO
230V 50Hz
63A - 400V~
ESC426S
25A 4NC
230V 50Hz
25A - 400V~
For a full list of modular devices
and technical details see section 5.
JK104BSF
JK104BSH
