3.12
General Catalogue • Commercial Distribution

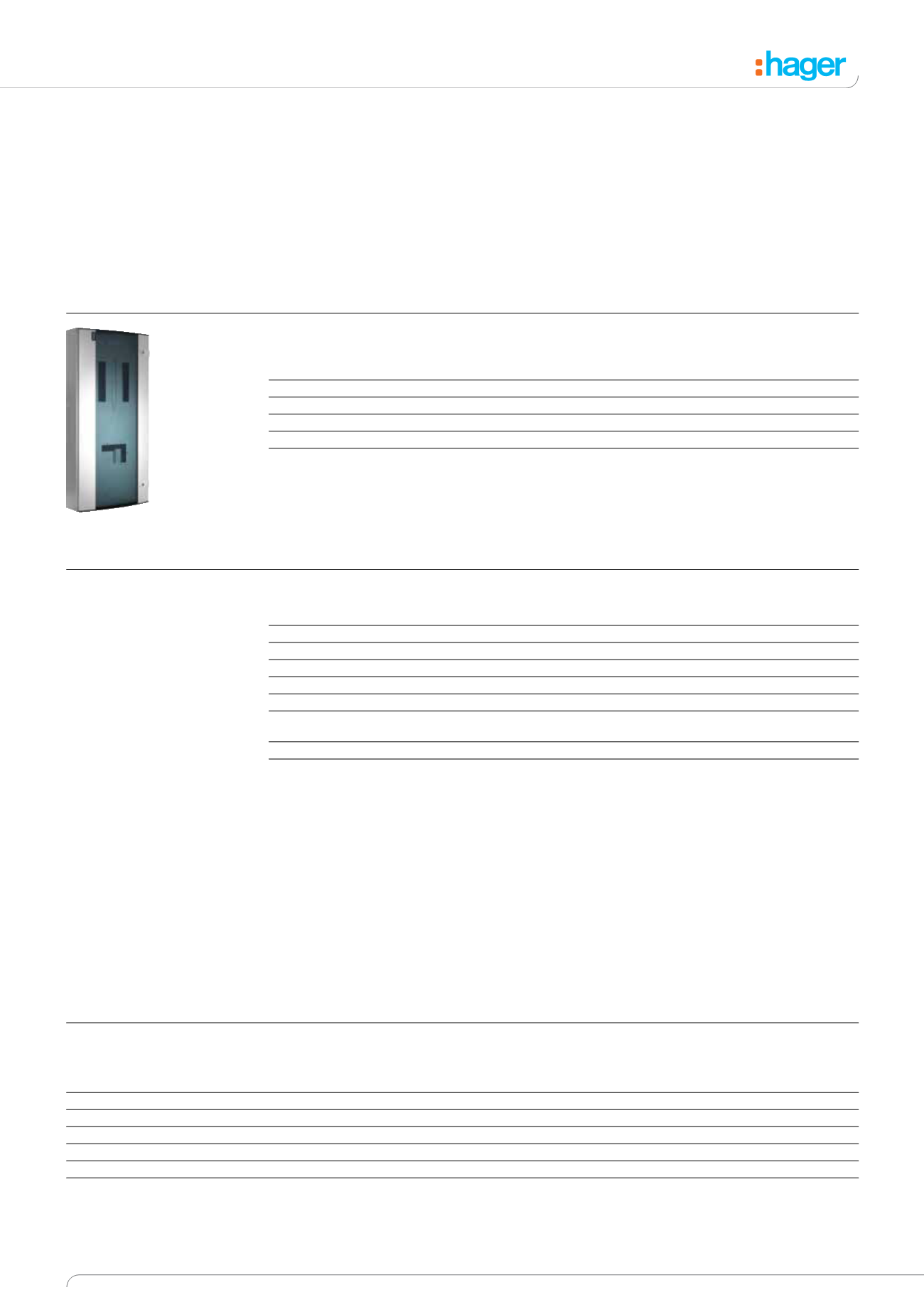

invicta 3 Type B Distribution Boards
250A Incoming 63A Outgoing
invicta 3 (250A Incoming 63A Outgoing)
Description
Cat ref.
Cat ref.
Plain door
Glazed door
8 Triple Pole Ways
JK208B
JK208BG
12 Triple Pole Ways
JK212B
JK212BG
16 Triple Pole Ways
JK216B
JK216BG
18 Triple Pole Ways
JK218B
JK218BG
24 Triple Pole Ways
JK224B
JK224BG
250A Incomer Kits (
note: these incomer kits will only fit the 250A board(s)
Description
Cat ref.
3 Pole 250A MCCB Incomer Kit (fits within distribution board)
JK22503M
4 Pole 250A MCCB Incomer Kit (fits within distribution board)
JK22504M
3 Pole 250A Switch Disconnector Incomer Kit (fits within distribution board)
JK22503S
4 Pole 250A Switch Disconnector Incomer Kit (fits within distribution board)
JK22504MCS
4 Pole 250A Direct Connection Kit (fits within distribution board)
JK22504D
4 Pole 160A Contactor Incomer Kit includes Switch Disconnector
JK21604C
¹
(fits below distribution board, 450mm high) ¹
3 Pole 125A MCCB Incomer Kit (fits within distribution board)
JK21253M
4 Pole 125A MCCB Incomer Kit (fits within distribution board)
JK21254M
¹ A 450mm space is required below the board for fitting, see page 3.24 for dimensions
invicta 3 250A TP&N
Distribution Boards
Surface mounted steel
enclosures.
Enclosure degree of protection:
IP3X
Enclosures are available with
plain or glazed doors.
Fully shrouded copper busbar,
rated 25kA short circuit
conditional current.
Supplied without incoming and
outgoing devices.
A Hager incoming kit must be
used.
Complies with BS EN 61439-3.
For dimensions see page 3.21.
MCB
Type B, C & D 10kA & 15kA Single and Triple Pole
Cat ref.
0.5A
1A
2A
3A
4A
6A
10A
16A
20A
B Curve Single Pole
-
-
-
-
-
NBN106A NBN110A NBN116A NBN120A
Triple Pole
-
-
-
-
-
NBN306A NBN310A NBN316A NBN320A
C Curve Single Pole
NCN100A NCN101A NCN102A NCN103A NCN104A NCN106A NCN110A NCN116A NCN120A
Triple Pole
NCN300A NCN301A NCN302A NCN303A NCN304A NCN306A NCN310A NCN316A NCN320A
D Curve Single Pole
NDN100A NDN101A NDN102A NDN103A NDN104A NDN106A NDN110A NDN116A NDN120A
Triple Pole
NDN300A NDN301A NDN302A NDN303A NDN304A NDN306A NDN310A NDN316A NDN320A
For a full list of protection devices
see section 4.
JK206BG
