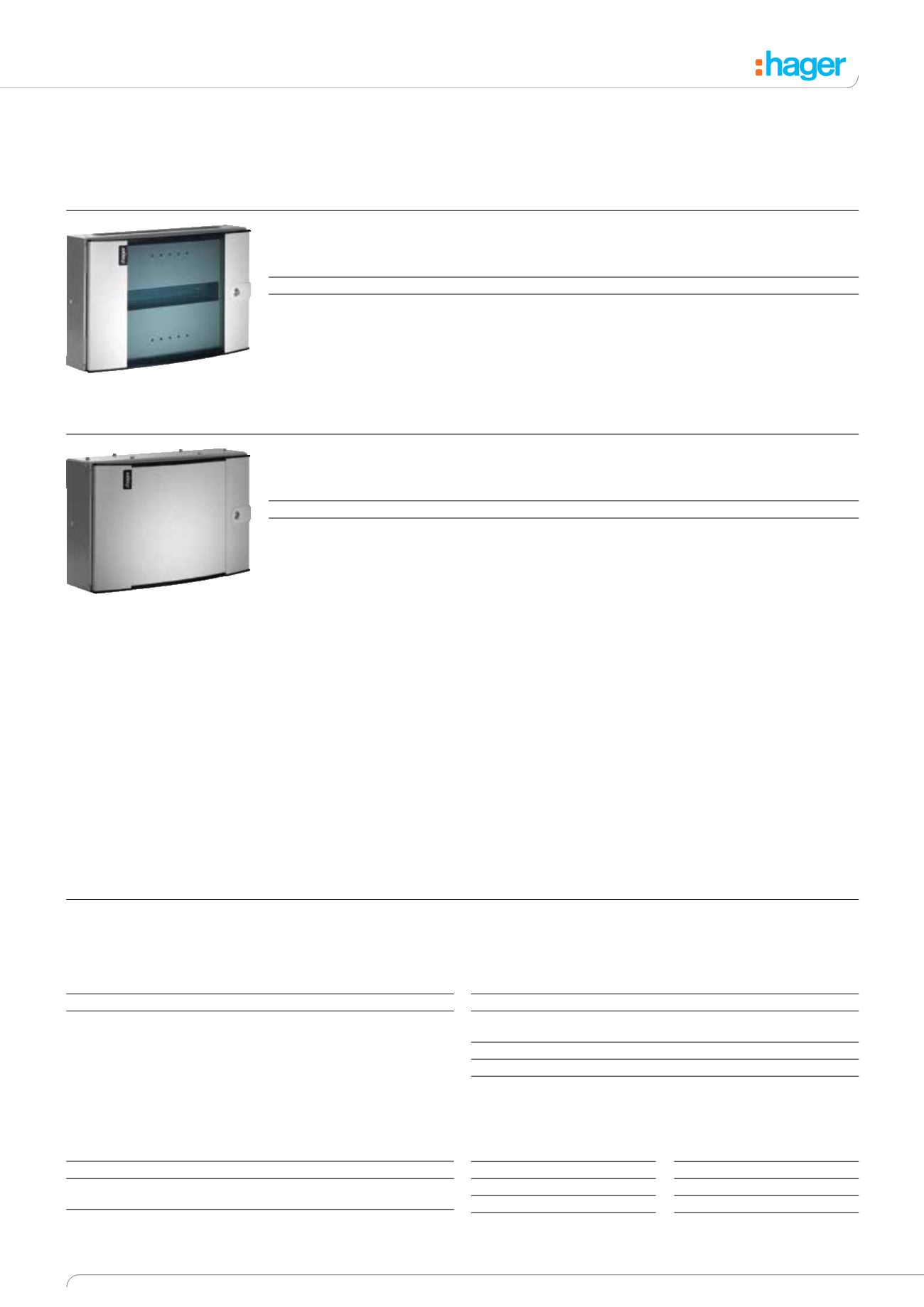

invicta 3 Type B Distribution Boards 125A & 250A
DIN Extension Boxes
DIN Extension Boxes for 125A Primary Boards
Description
Number
Number of DIN
Cat ref.
Cat ref.
of Rows
Module Ways
Plain door
Glazed door
125A DIN Extension Box
1
16
JK116E
JK116EG
125A DIN Extension Box
2
32
JK132E
JK132EG
DIN Extension Boxes for 250A Primary Boards
Description
Number
Number of DIN
Cat ref.
Cat ref.
of Rows
Module Ways
Plain door
Glazed door
250A DIN Extension Box
1
16
JK216E
JK216EG
250A DIN Extension Box
2
32
JK232E
JK232EG
Extension boxes have plain or
glazed doors and DIN rail
chassis.
Complies with BS EN 62208.
Full width enclosure provided
with 16 modular ways per row.
For dimensions see page 3.22.
Current Transformers
Cat ref.
Ratio
SR051
50/5
SR101
100/5
SR150
150/5
SR200
200/5
Cat ref.
Ratio
SR250
250/5
SR300
300/5
SR400
400/5
SR600
600/5
Three Phase kWh Meters - Direct 63A
Voltage 230/400V~ 50/60Hz, Starting current = 40mA,
Base current = 10A, Max current = 63A
Cat ref.
Description
EC350
Energy meter with pulsed output and total / partial counter
EC352
Energy meter with pulsed output - total / partial counter
and 2 tariffs
Three Phase kWh Meters - Direct 100A
Voltage 230/400V~ 50/60Hz, Starting current = 80mA,
Base current = 20A, Max current = 100A
Cat ref.
Description
EC360
Energy meter with pulsed output and total / partial counter
EC362
Energy meter with pulsed output - total / partial counter
and 2 tariffs
EC364M
Energy meter with pulsed output - with MID approval
EC365B
Energy meter with bidirectional counter
TE360
Energy meter with KNX output
Three Phase kWh Meters - Connection via Current Transformers
To be connected to CT with 5A on the secondary
Voltage 230/400V~ 50/60Hz, Starting current = 10mA,
Max current on CT secondary = 6A
Cat ref.
Description
EC370
Energy meter with pulsed output and total / partial counter
EC372
Energy meter with puseld output - total / partial counter
and 2 tariffs
TE370
Energy meter with KNX ouput
