3.16
General Catalogue • Commercial Distribution
invicta 3 Type B Distribution Boards 125A & 250A

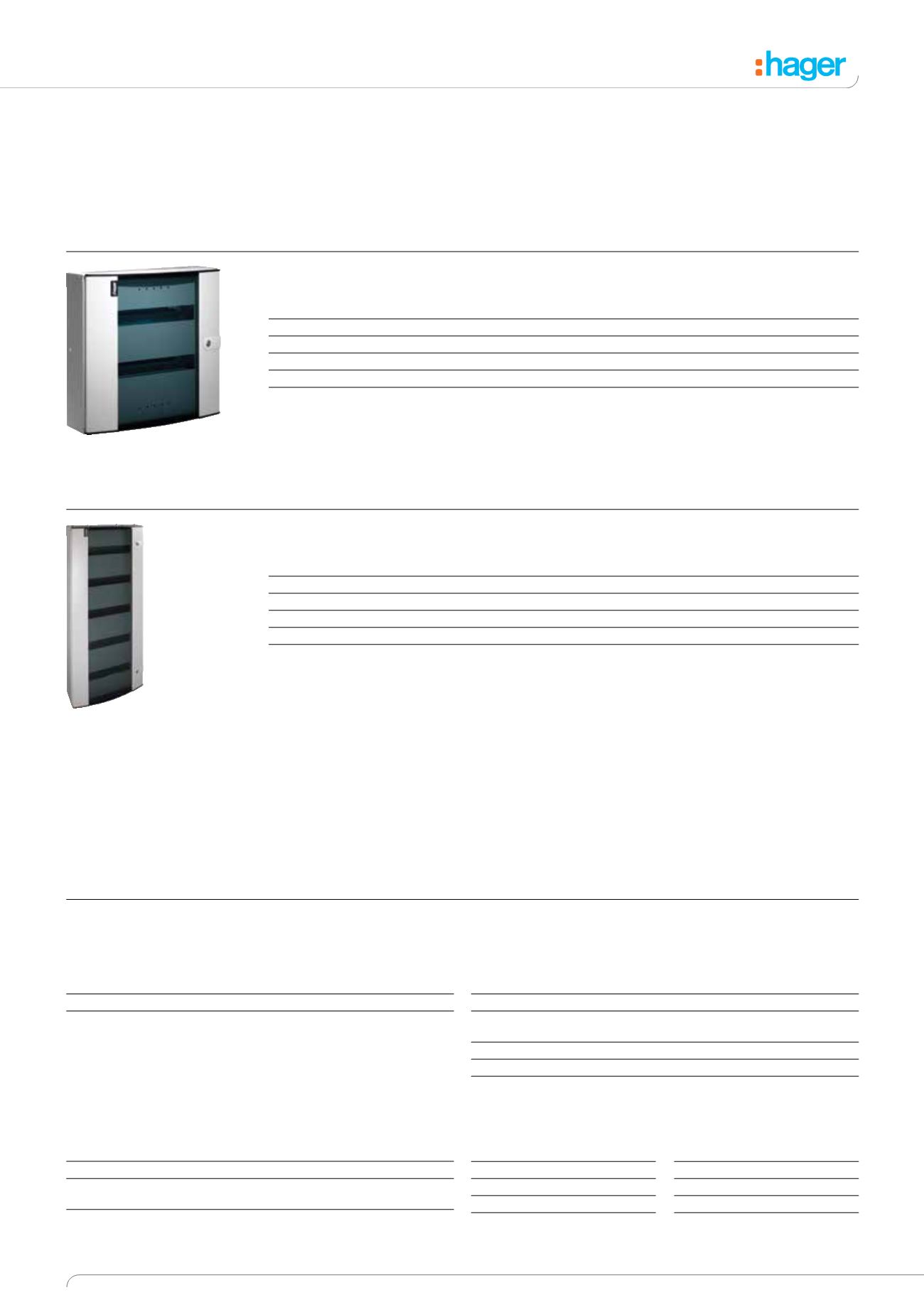

Side DIN Boxes
Side DIN Boxes for 125A Primary Boards
Description
Number
Number of DIN
Cat ref.
of Rows
Module Ways
Glazed door
32 Way Side DIN Box for JK104B
2
32
JK104BDFG
32 Way Side DIN Box for JK106B
2
32
JK106BDFG
48 Way Side DIN Box for JK108B
3
48
JK108BDFG
64 Way Side DIN Box for JK112B
4
64
JK112BDFG
80 Way Side DIN Box for JK116B
5
80
JK116BDFG
Side DIN Boxes for 250A Primary Boards
Description
Number
Number of DIN
Cat ref.
of Rows
Module Ways
Glazed door
80 Way Side DIN Box for JK208B
5
80
JK208BDFG
80 Way Side DIN Box for JK212B
5
80
JK212BDFG
96 Way Side DIN Box for JK216B
6
96
JK216BDFG
112 Way Side DIN Box for JK218B
7
112
JK218BDFG
128 Way Side DIN Box for JK224B
8
128
JK224BDFG
Side extension boxes provide
a new concept for distribution
boards to allow DIN rail mounted
devices to be fitted on site.
They can be horizontally or
vertically attached to distribution
boards using 1 x JK100HK.
* All Side DIN Boxes supplied
with 2x removable gland plates.
For dimensions see page 3.21.
Current Transformers
Cat ref.
Ratio
SR051
50/5
SR101
100/5
SR150
150/5
SR200
200/5
Cat ref.
Ratio
SR250
250/5
SR300
300/5
SR400
400/5
SR600
600/5
Three Phase kWh Meters - Direct 63A
Voltage 230/400V~ 50/60Hz, Starting current = 40mA,
Base current = 10A, Max current = 63A
Cat ref.
Description
EC350
Energy meter with pulsed output and total / partial counter
EC352
Energy meter with pulsed output - total / partial counter
and 2 tariffs
Three Phase kWh Meters - Direct 100A
Voltage 230/400V~ 50/60Hz, Starting current = 80mA,
Base current = 20A, Max current = 100A
Cat ref.
Description
EC360
Energy meter with pulsed output and total / partial counter
EC362
Energy meter with pulsed output - total / partial counter
and 2 tariffs
EC364M
Energy meter with pulsed output - with MID approval
EC365B
Energy meter with bidirectional counter
TE360
Energy meter with KNX output
Three Phase kWh Meters - Connection via Current Transformers
To be connected to CT with 5A on the secondary
Voltage 230/400V~ 50/60Hz, Starting current = 10mA,
Max current on CT secondary = 6A
Cat ref.
Description
EC370
Energy meter with pulsed output and total / partial counter
EC372
Energy meter with puseld output - total / partial counter
and 2 tariffs
TE370
Energy meter with KNX ouput
JK104BDFG
JK208BDFG
