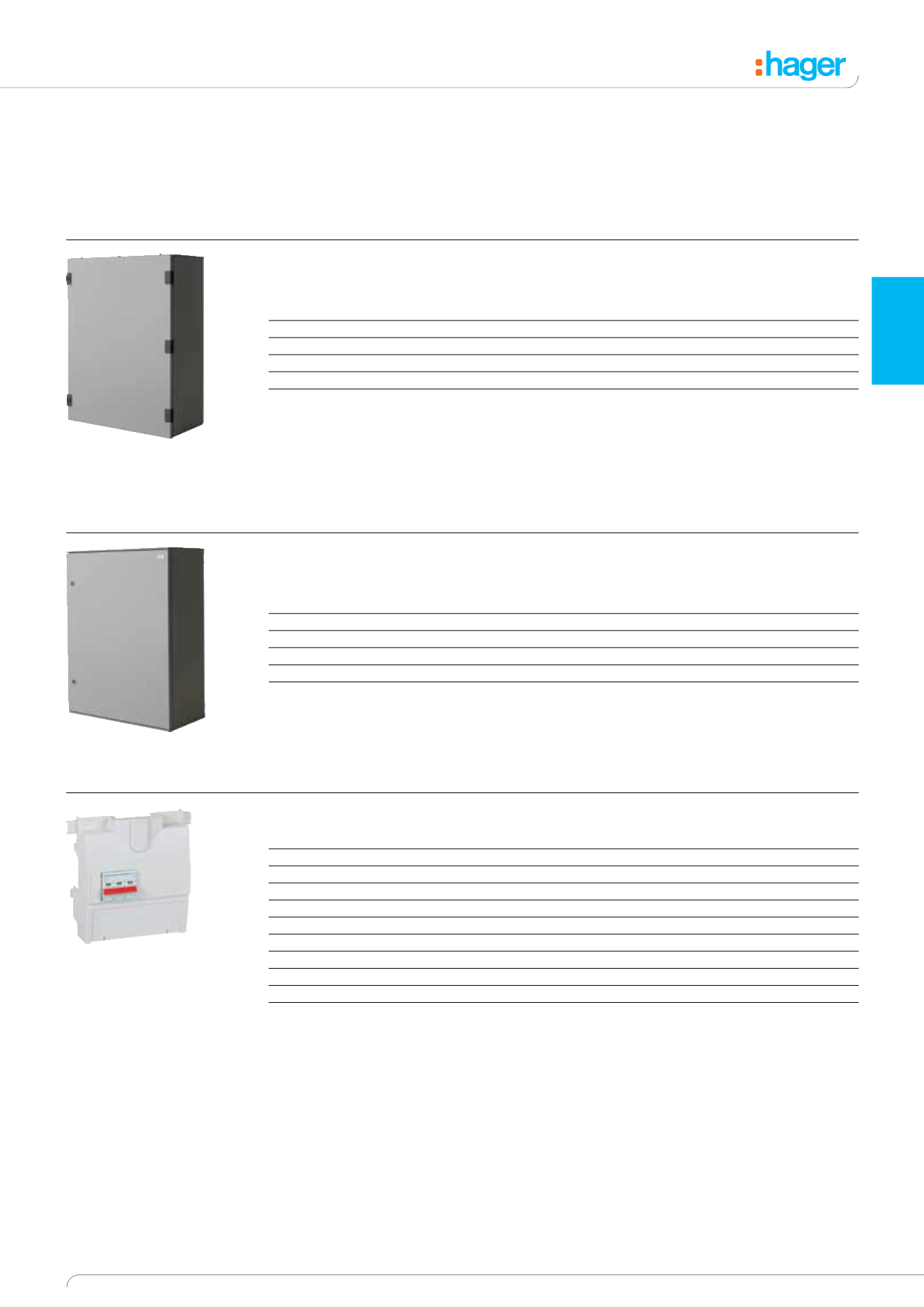

3.19
IP65 TP&N Distribution Boards
125A Incoming 63A Outgoing
IP65 TP&N distribution boards
are suitable for three phase
applications where a high IP
rating is required. The
distribution boards are
available with either a steel or
GRP enclosure.
Incoming devices are supplied
separately, and with a choice of
10 primary distribution boards up
to 100 TP&N configurations are
possible.
Available up to 125A direct
connection with outgoing
distribution through 4, 6, 8, 12
or 16 ways, rated for MCBs from
0.5A to 63A.
Complies with BS EN 61439-3.
IP65 Distribution Boards - Metal
Rated at 125A max
Ways
Dimensions (mm) (HxWxD)
Cat ref.
4
800 x 600 x 300
JK104BD
6
800 x 600 x 300
JK106BD
8
800 x 600 x 300
JK108BD
12
950 x 600 x 300
JK112BD
16
950 x 600 x 300
JK116BD
IP65 Distribution Boards - Insulated
Rated at 125A max
Ways
Dimensions (mm) (HxWxD)
Cat ref.
4
800 x 600 x 300
JK104BF
6
800 x 600 x 300
JK106BF
8
800 x 600 x 300
JK108BF
12
1150 x 850 x 300
JK112BF
16
1150 x 850 x 300
JK116BF
125A Incomer Kits
Description
Cat ref.
3 Pole 100A Switch Disconnector Incomer Kit (fits within distribution board)
JK11003S
4 Pole 100A Switch Disconnector Incomer Kit (fits within distribution board)
JK11004S
3 Pole 125A Switch Disconnector Incomer Kit (fits within distribution board)
JK11253S
125A Direct Connection Kit (fits within distribution board)
JK11254D
4 Pole 63A 30mA RCCB Incomer Kit (fits within distribution board)
JK10634RH
4 Pole 100A 30mA RCCB Incomer Kit (fits within distribution board)
JK11004RH
4 Pole 100A 300mA RCCB Incomer Kit (fits within distribution board)
JK11004RL
4 Pole 100A 300mA Time Delayed RCCB Incomer Kit (fits within distribution board)
JK11004RLD
4 Pole 100A 100mA RCCB Incomer Kit (fits within distribution board)
JK11004RM
4 Pole 100A 100mA Time Delayed RCCB Incomer Kit (fits within distribution board)
JK11004RMD
JK106BD
JK106BF
JK11003S
