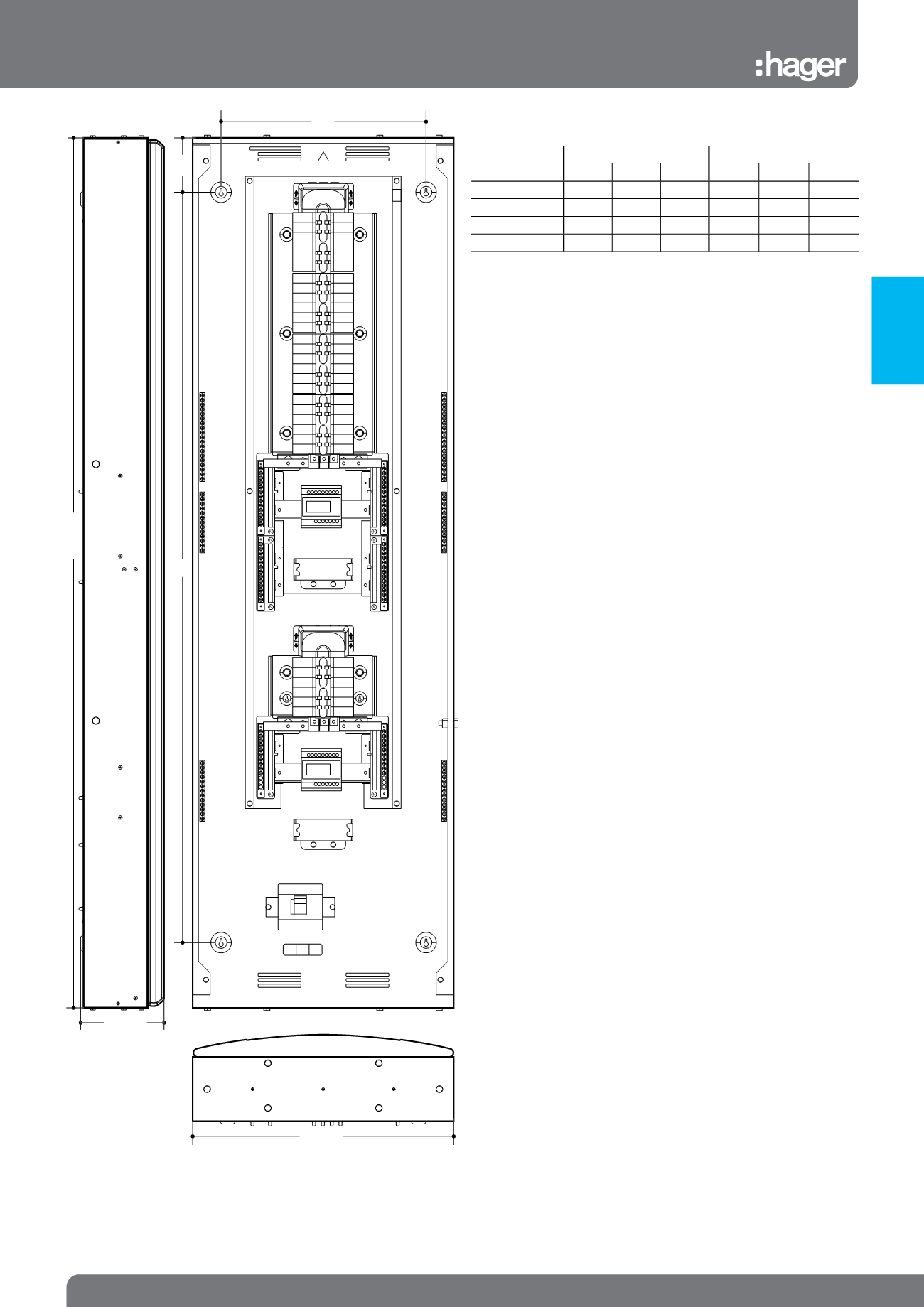

invicta 3 Dimensions
125A Rated Metered Boards
3.25 Sales Service Centre • 01952 675612 Technical Support Helpline • 01952 675689
125A Rated Metered Boards
Dimensions (mm) Fixing Centres (mm)
Height Width Depth A B C
JK146B/M 1250 465 165.5 365 100 1050
JK168B/M 1400 465 165.5 365 100 1200
JKD1416B/M 1550 465 165.5 365 100 1350
JKD1812B/M 1550 465 165.5 365 100 1350
L1 L2 L3
L1
L2
L3
L1
L2
L3
ISOLATESUPPLY
BEFOREREMOVINGCOVER
UN
LOCK UN
LOCK
L1 L2 L3
L1
L2
L3
L1
L2
L3
ISOLATESUPPLY
BEFOREREMOVINGCOVER
UN
LOCK UN
LOCK
L1 L2 L3
L1
L2
L3
L1
L2
L3
L1
L2
L3
L1
L2
L3
L1
L2
L3
L1
L2
L3
Depth
B
C
A
Height
Width
