invicta 3
Panelboards
Helping you to meet Part L2 of the
Building Regulations
The last few years have seen a major change in the design and installation of commercial electrical
distribution systems. The panelboard is at the heart of such a system, whether acting as the main
incoming board or as part of the sub distribution. Modern electrical distribution systems have more
RCD protection, more metering and more control devices. Panelboards have to offer a flexible solution
to help meet these needs.

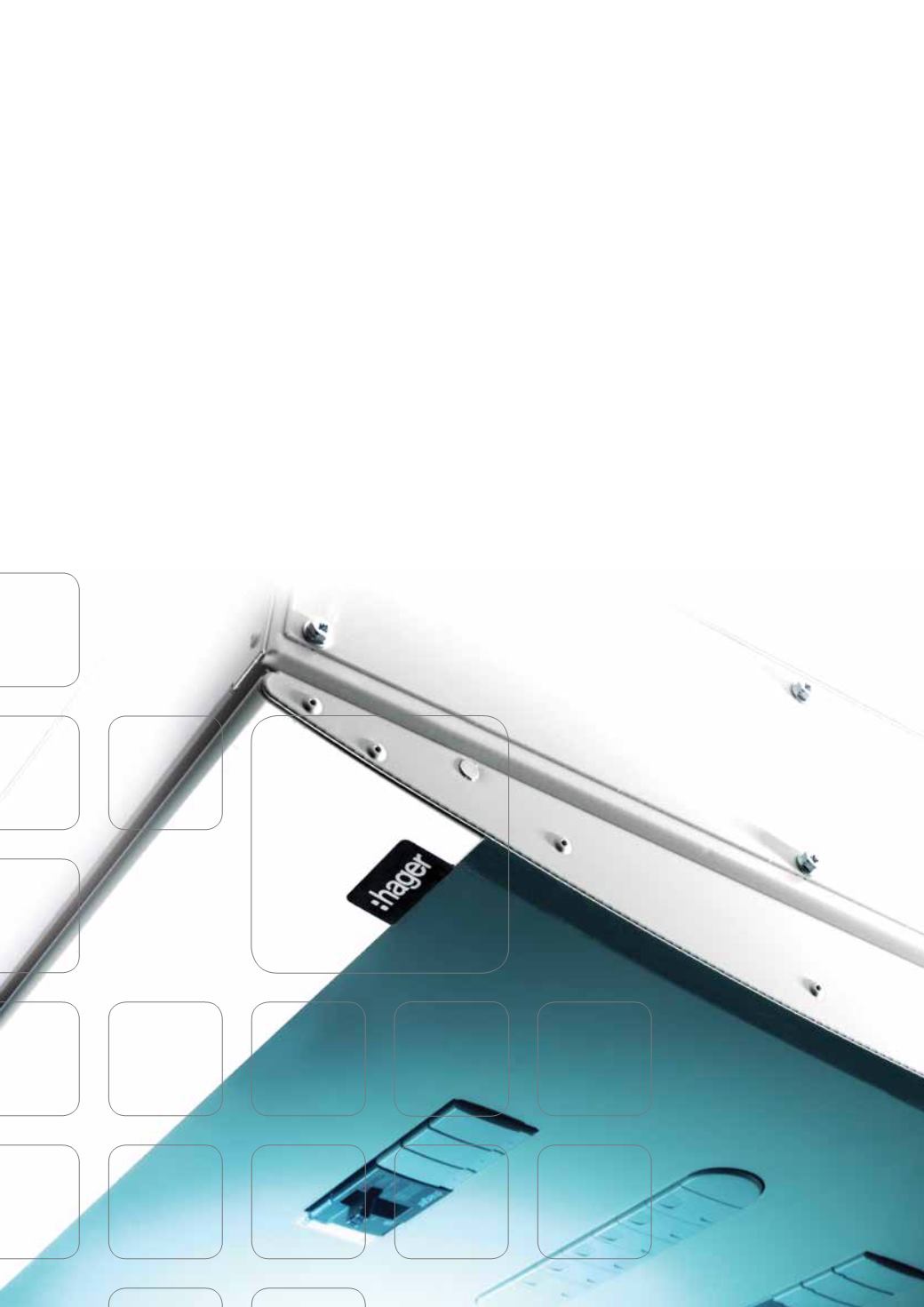

The new invicta 3 panelboard range includes 250A, 400A, 630A & 800A panelboards with new MCCB
incomers. Prewired meter packs allow installers to fit metering into the board. All the internal wiring is
included. Installation is fast and simple, thanks to a number of features. There is generous space where
it is needed for cable bending radii at the top, bottom and sides of the board and twin and earth neutral
bars allow easy identification of earth and neutral
conductors with the corresponding line conductors.
