83 / 381
3.28
General Catalogue • Commercial Distribution

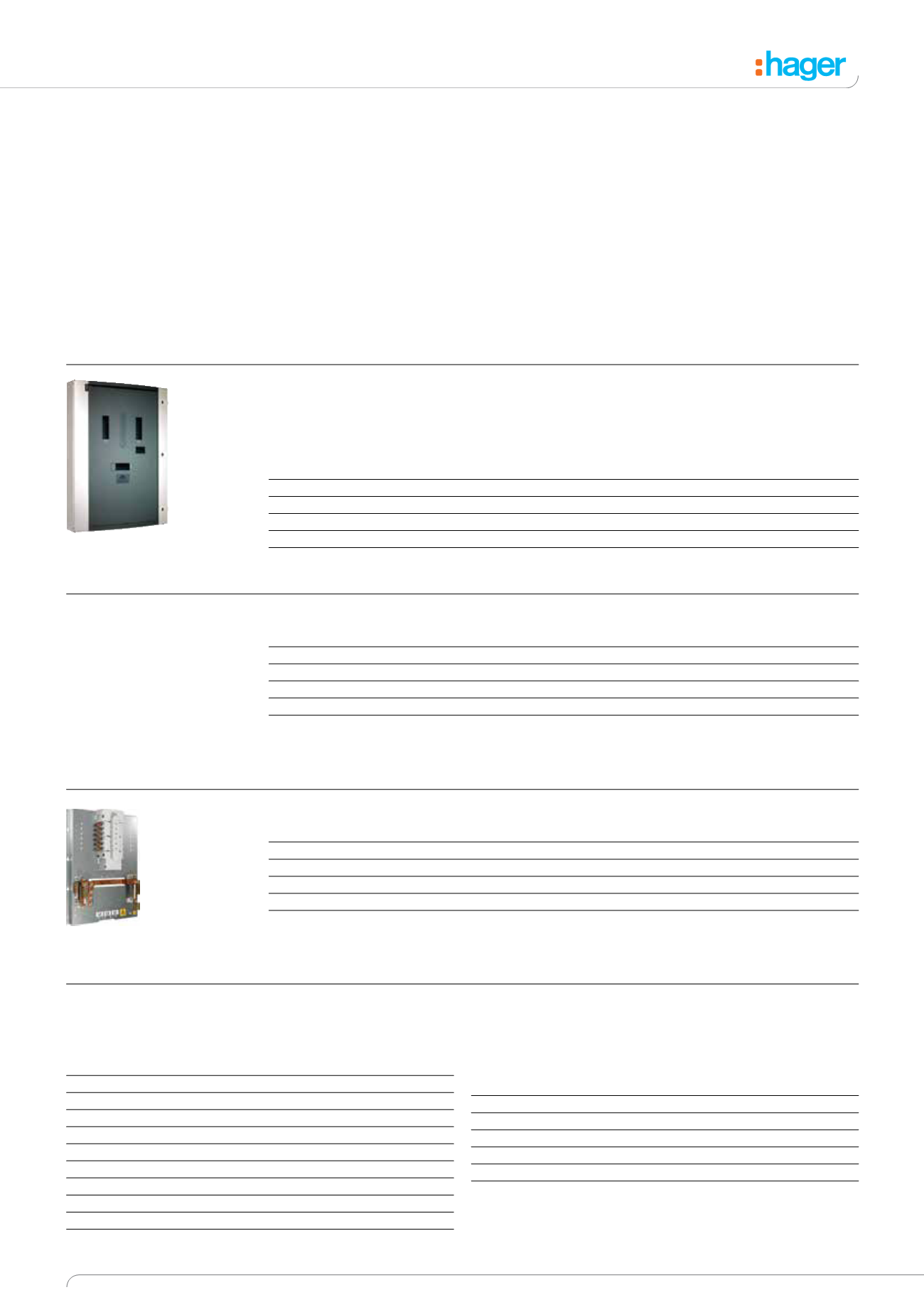

invicta 3 Panelboard System (250A Rated)
250A Incoming 125A Outgoing
invicta 3 Panelboards (250A Incoming 125A Outgoing)
Comprises of enclosure, pan assembly, twin neutral and earth bar.
Supplied without incoming kit (one of the incomer kits listed below must be used).
Description
Cat ref.
Cat ref.
Plain door
Glazed door
4 Way
JN204B
JN204BG
6 Way
JN206B
JN206BG
8 Way
JN208B
JN208BG
12 Way
JN212B
JN212BG
16 Way
JN216B
JN216BG
Incomer Kits
Description
Cat ref.
3 Pole 250A MCCB Incomer Kit (Adj. Thermal 0.63, 0.8, 1) 40kA (Magnetic 5, 7, 9, 11 x I n )
JN223BM
4 Pole 250A MCCB Incomer Kit (Adj. Thermal 0.63, 0.8, 1) 40kA (Magnetic 5, 7, 9, 11 x I n )
JN224BM
3 Pole 250A Non-Auto MCCB Incomer Kit
JN223BS
4 Pole 250A Non-Auto MCCB Incomer Kit
JN224BS
250A Direct Connection Kit
JN224BD
For RCD incomer option & engineered solutions contact our Technical Support Helpline on 01952 675689
250A Rated Pan Assemblies
Description
Cat ref.
JN204B Pan Assembly
JN204BPA
JN206B Pan Assembly
JN206BPA
JN208B Pan Assembly
JN208BPA
JN212B Pan Assembly
JN212BPA
JN216B Pan Assembly
JN216BPA
Outgoing Devices
MCCBs - Single Pole
Rating.
18kA Fixed Thermal
25kA Fixed Thermal
Mag 10 x I n
Mag 10 x I n
16A
HDA014Z
HHA014Z
20A
HDA018Z
HHA018Z
25A
HDA023Z
HHA023Z
32A
HDA030Z
HHA030Z
40A
HDA038Z
HHA038Z
50A
HDA048Z
HHA048Z
63A
HDA061Z
HHA061Z
80A
HDA078Z
HHA078Z
100A
HDA098Z
HHA098Z
125A
HDA123Z
HHA123Z
MCCBs - Triple Pole Adjustable Thermal
18kA Adjustable Thermal
25kA Adjustable Thermal
0.63 - 0.8 - 1x I n
0.63 - 0.8 - 1x I n
Rating.
Mag 10 x I n
Mag 10 x I n
25A
HDA025U
HHA025U
40A
HDA040U
HHA040U
63A
HDA063U
HHA063U
80A
HDA080U
HHA080U
100A
HDA100U
HHA100U
125A
HDA125U
HHA125U
Options
Key lock, meter pack, DIN rail,
extension box, spreader box.
Construction
Enclosures manufactured from
1.2mm DC01M cold reduced
mild steel, phosphate pretreated
and powder coated to 00A01
BS4800.
Specification
Complies with BS EN 61439-2.
Enclosure degree of protection:
IP3X
Internal separation Form 3A.
4, 6, 8, 12, 16 Triple Pole
outgoing ways.
Cable Capacity Incomers
3 and 4 pole MCCB.
Cable capacity 185mm
2
max lug width 25mm.
3 and 4 pole non auto MCCB.
Cable capacity 185mm
2
max lug width 25mm
Direct connection kit.
M8 hexagonal bolt.
(Larger cables can be connected
by using extended connections,
see page 4.38 MCCB section).
Outgoers
1 & 3 pole MCCB 70mm
2
flexible.
1 & 3 pole MCCB 95mm
2
solid.
Busbar Ratings
Busbar rated current 250A
continuous.
Busbar rated short-time
withstand current 25kA for 1s
direct connected (unconditional).
Outgoing MCCBs
Single pole 16-125A
(10 ratings)
Fixed thermal, fixed magnetic
trips.
Triple pole 25-125A (6 ratings),
adjustable thermal fixed
magnetic trips.
Form 3B is achieved using the
optional terminal shield (see
MCCB accessories on page
4.42).
For accessories see page 3.29.
For dimensions see page 3.39.
JN204BPA
JN204BG
