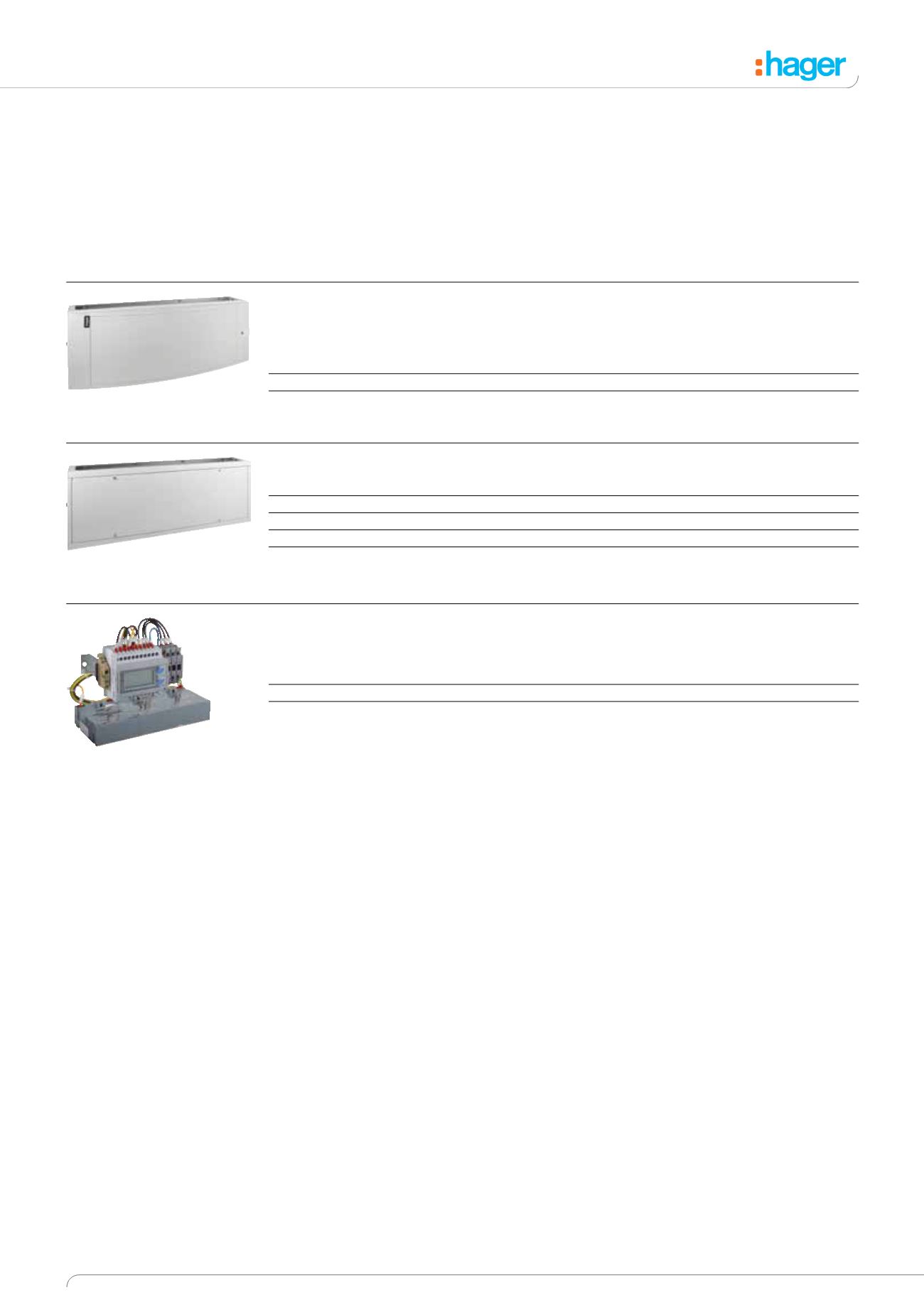

invicta 3 Panelboard System (630A / 800A Rated)
DIN Extension Boxes, Cable Spreader Boxes
DIN Extension Boxes (to fit JF4 & JF8 boards)
Supplied with DIN Rail
Description
Cat ref.
Cat ref.
Plain door
Glazed door
1 Row 34 Mod (300mm Height)
JF801E
JF801EG
2 Row 68 Mod (450mm Height)
JF803E
JF803EG
Cable Spreader Box (to fit JF4 & JF8 boards)
Description
Cat ref.
Small (300mm Height) (Door not included)
JF805E
Large (450mm Height) (Door not included)
JF806E
Small Cable Spreader Box Door Kit
JF805DK
Large Cable Spreader Box Door Kit
JF806DK
DIN Extensions Boxes have plain
or glazed doors and DIN rail
chassis.
Cable spreader boxes are used
for additional cabling space
therefore do not require doors. If
doors are desired optional door
kits are available.
For dimensions see page 3.40.
For a h3 MCCBs see page 4.40
onwards.
Meter Pack 800A
These meter packs fit directly into the main panelboard. Spreader box required to mount CT’s.
Description
Cat ref.
Digital Multifunction Meter Pack Pulsed
JF803BA
Digital Multifunction Meter Pack ModBus
JF803MJ
JF803BA
JF805E
JF801E
