3.15
invicta 3 Type B Distribution Boards 125A & 250A

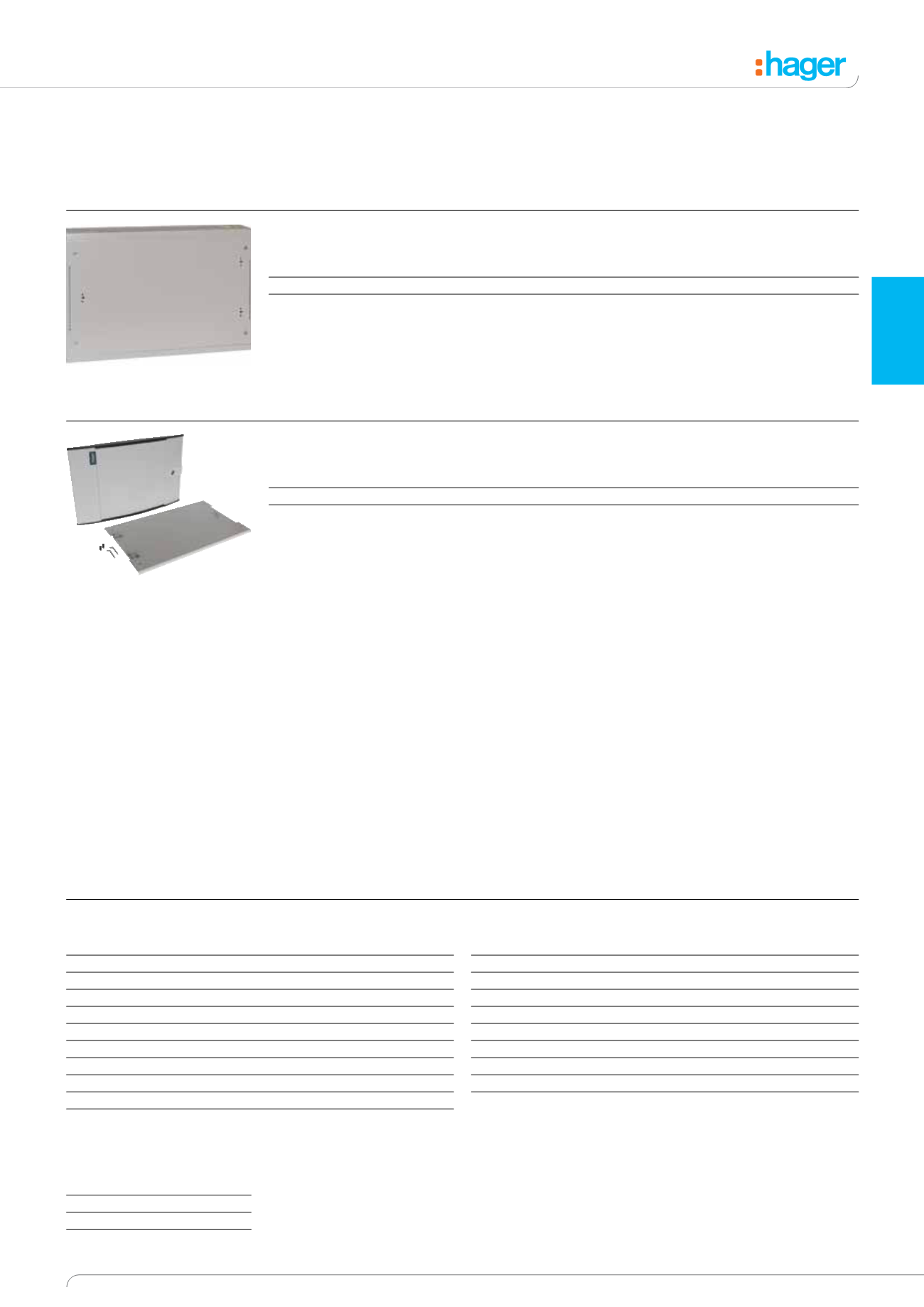

Cable Spreader Boxes
Cable spreader boxes are used
for additional cabling space
therefore do not require doors.
If doors are desired optional
door kits are available.
Complies with BS EN 62208
Full width enclosure provided
with 16 modular ways per row.
For dimensions see page 3.22.
Cable Spreader Boxes for 125A & 250A Primary Boards
Description
125A
250A
Cat ref.
Cat ref.
Small Cable Spreader Box *
JK101SE
JK201SE
Large Cable Spreader Box *
JK102LE
JK202LE
* no door included (see below for door kit).
Optional Door Kits for Cable Spreader Boxes
(above)
Description
125A
250A
Cat ref.
Cat ref.
Small Cable Spreader Box Door Kit
JK101DK
JK101DK
Large Cable Spreader Box Door Kit
JK102DK
JK102DK
Low Noise Contactors
Cat ref.
Type
Coil AC Voltage
Power circuit AC1
ESC225S
25A 2NO
230V 50Hz
25A - 400V~
ESC240S
40A 2NO
230V 50Hz
40A - 400V~
ESC263S
63A 2NO
230V 50Hz
63A - 400V~
ESC325S
25A 3NO
230V 50Hz
25A - 400V~
ESC340S
40A 3NO
230V 50Hz
40A - 400V~
ESC428S
25A 3NO + 1NC 230V 50Hz
25A - 400V~
ESC425S
25A 4NO
230V 50Hz
25A - 400V~
ESC440S
40A 4NO
230V 50Hz
40A - 400V~
ESC463S
63A 4NO
230V 50Hz
63A - 400V~
ESC426S
25A 4NC
230V 50Hz
25A - 400V~
Digital Time Switches
Cat ref.
Description
EG010
1 Channel Time Switch (Daily Cycle)
EG071
1 Channel TIme Switch (Weekly Cycle)
EG103
1 Channel Time Switch (Weekly Cycle - Basic Version)
EG203
2 Channel Time Switch (Weekly Cycle - Basic Version)
EG103E
1 Channel Time Switch (Weekly Cycle - Evolution Version)
EG203E
2 Channel Time Switch (Weekly Cycle - Evolution Version)
EG493E
4 Channel Time Switch (Weekly / Annual Cycle)
EE180
1 Channel Astronomical Time Switch
EE181
2 Channel Astronomical Time Swtich
Surge Protection Devices
Cat ref.
Description
SPN140D
Single Pole 1.2kV
SPN215R
2 Poles 1ø + N 1.0kV
SPN415R
4 Poles 3ø + N 1.2kV
For a full list of modular devices
and technical details see section 5.
