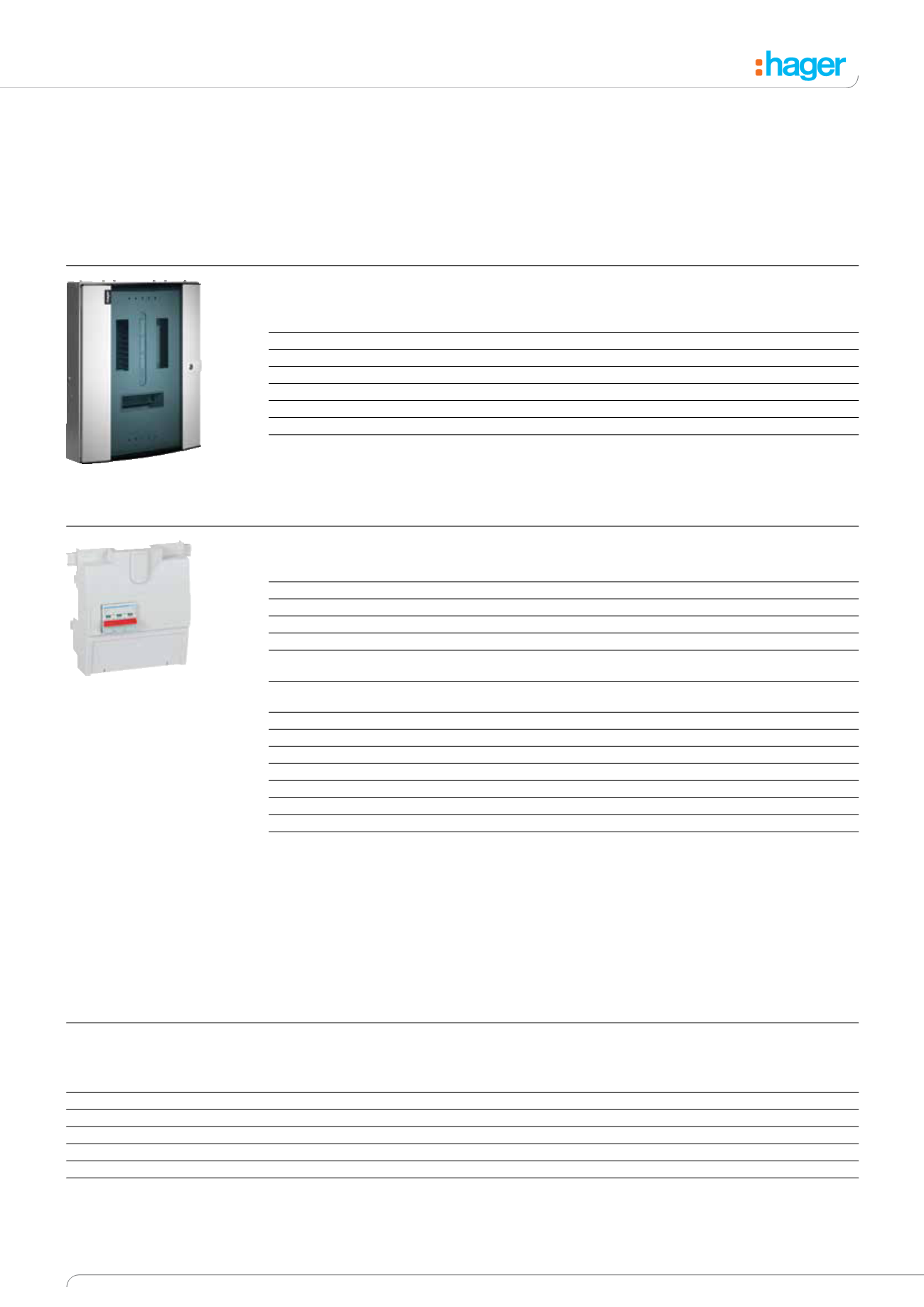

invicta 3 (125A Incoming 63A Outgoing)
Description
Cat ref.
Cat ref.
Plain door
Glazed door
4 Triple Pole Ways
JK104B
¹
JK104BG
¹
6 Triple Pole Ways
JK106B
¹
JK106BG
¹
8 Triple Pole Ways
JK108B
¹
JK108BG
¹
12 Triple Pole Ways
JK112B
JK112BG
16 Triple Pole Ways
JK116B
JK116BG
18 Triple Pole Ways
JK118B
JK118BG
24 Triple Pole Ways
JK124B
JK124BG
¹ A JK101SE is required to provide additional incoming cable space, see page 3.15.
125A Incomer Kits (
note: these incomer kits will only fit the 125A board(s)
Description
Cat ref.
3 Pole 100A Switch Disconnector Incomer Kit (fits within distribution board)
JK11003S
4 Pole 100A Switch Disconnector Incomer Kit (fits within distribution board)
JK11004S
3 Pole 125A Switch Disconnector Incomer Kit (fits within distribution board)
JK11253S
4 Pole 125A Switch Disconnector Incomer Kit (fits within distribution board)
JK11254S
4 Pole 63A Contactor Incomer Kit includes Switch Disconnector
JK10634C
²
(fits below distribution board, 300mm high)
4 Pole 100A Contactor Incomer Kit includes Switch Disconnector
JK11004C
²
(fits below distribution board, 450mm high)
125A Direct Connection Kit (fits within distribution board)
JK11254D
4 Pole 63A 30mA RCCB Incomer Kit (fits within distribution board)
JK10634RH
4 Pole 100A 30mA RCCB Incomer Kit (fits within distribution board)
JK11004RH
4 Pole 100A 300mA RCCB Incomer Kit (fits within distribution board)
JK11004RL
4 Pole 100A 300mA Time Delayed RCCB Incomer Kit (fits within distribution board)
JK11004RLD
4 Pole 100A 100mA RCCB Incomer Kit (fits within distribution board)
JK11004RM
4 Pole 100A 100mA Time Delayed RCCB Incomer Kit (fits within distribution board)
JK11004RMD
125A 4 pole Changeover Incomer Kit
JK11254CO
² A 300 / 450mm space is required below the board for fitting, see page 3.22 for dimensions.
invicta 3 125A TP&N
Distribution Boards
Surface mounted steel
enclosures.
Enclosure degree of protection:
IP3X
Enclosures are available with
plain or glazed doors.
Fully shrouded copper busbar,
rated 25kA short circuit
conditional current.
Supplied without incoming and
outgoing devices.
A Hager incoming kit must be
used.
Complies with BS EN 61439-3.
For dimensions see page 3.21.
MCB
Type B, C & D 10kA & 15kA Single and Triple Pole
Cat ref.
0.5A
1A
2A
3A
4A
6A
10A
16A
20A
B Curve Single Pole
-
-
-
-
-
NBN106A NBN110A NBN116A NBN120A
Triple Pole
-
-
-
-
-
NBN306A NBN310A NBN316A NBN320A
C Curve Single Pole
NCN100A NCN101A NCN102A NCN103A NCN104A NCN106A NCN110A NCN116A NCN120A
Triple Pole
NCN300A NCN301A NCN302A NCN303A NCN304A NCN306A NCN310A NCN316A NCN320A
D Curve Single Pole
NDN100A NDN101A NDN102A NDN103A NDN104A NDN106A NDN110A NDN116A NDN120A
Triple Pole
NDN300A NDN301A NDN302A NDN303A NDN304A NDN306A NDN310A NDN316A NDN320A
For a full list of protection devices
see section 4.
invicta 3 Type B Distribution Boards
125A Incoming 63A Outgoing
JK106BG
JK11003S
