Prestige 3D Compact
Technical
mkelectric.co.uk620
CABLE MANAGEMENT
PERIMETER AND
DISTRIBUTION
MINIMUM DISTANCE BETWEEN CORNERS (MM)
A
B
C
D
E
F
G
H
I
J
K
47
47
116
56
35
56
24
92
92
172
147
Prestige 3D Technical
– Compact

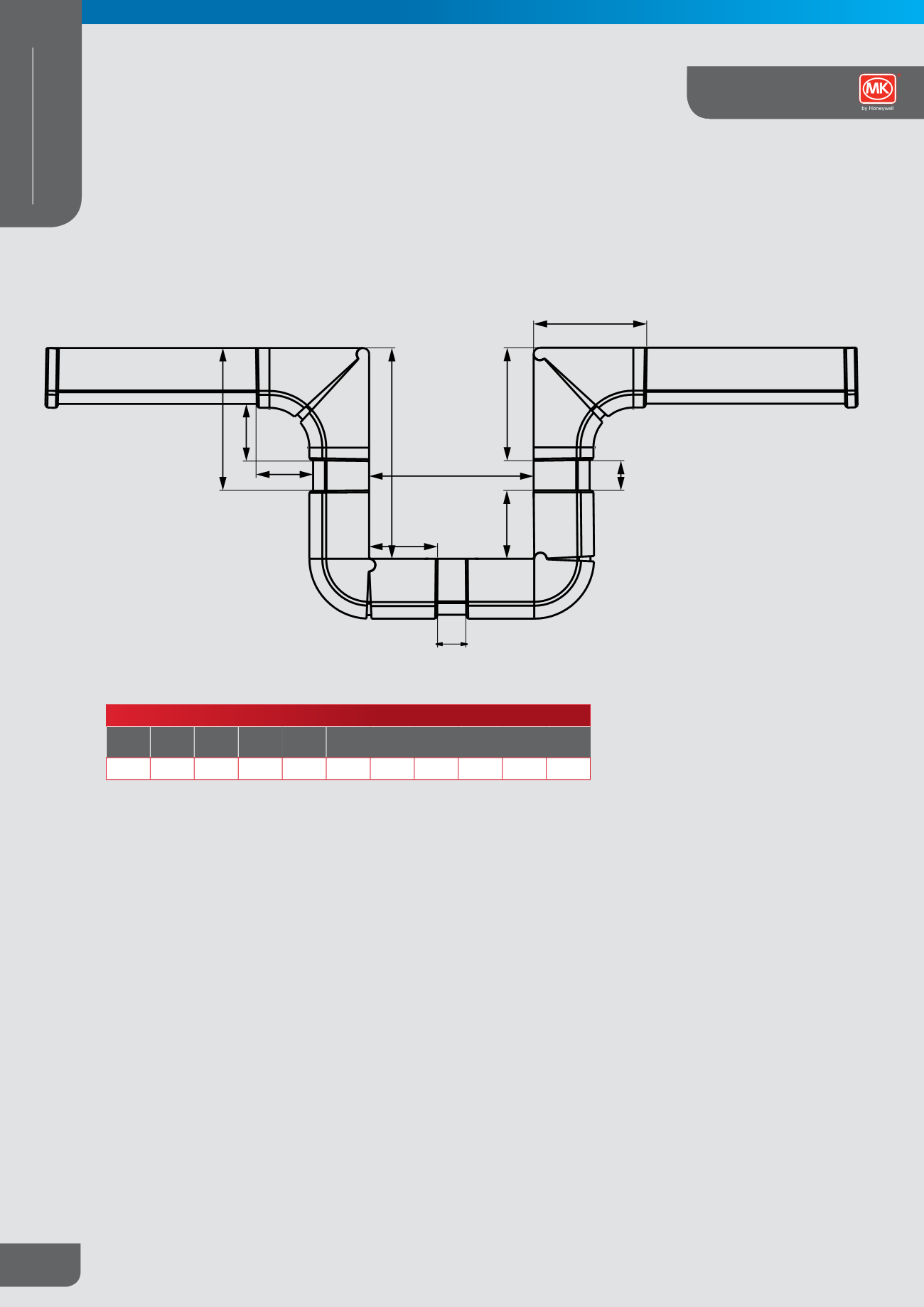

Figure shows minimum distance required for installing around corners
Installing Prestige 3D Compact
A
D
E
K
I
B
H
J
F
G
C
