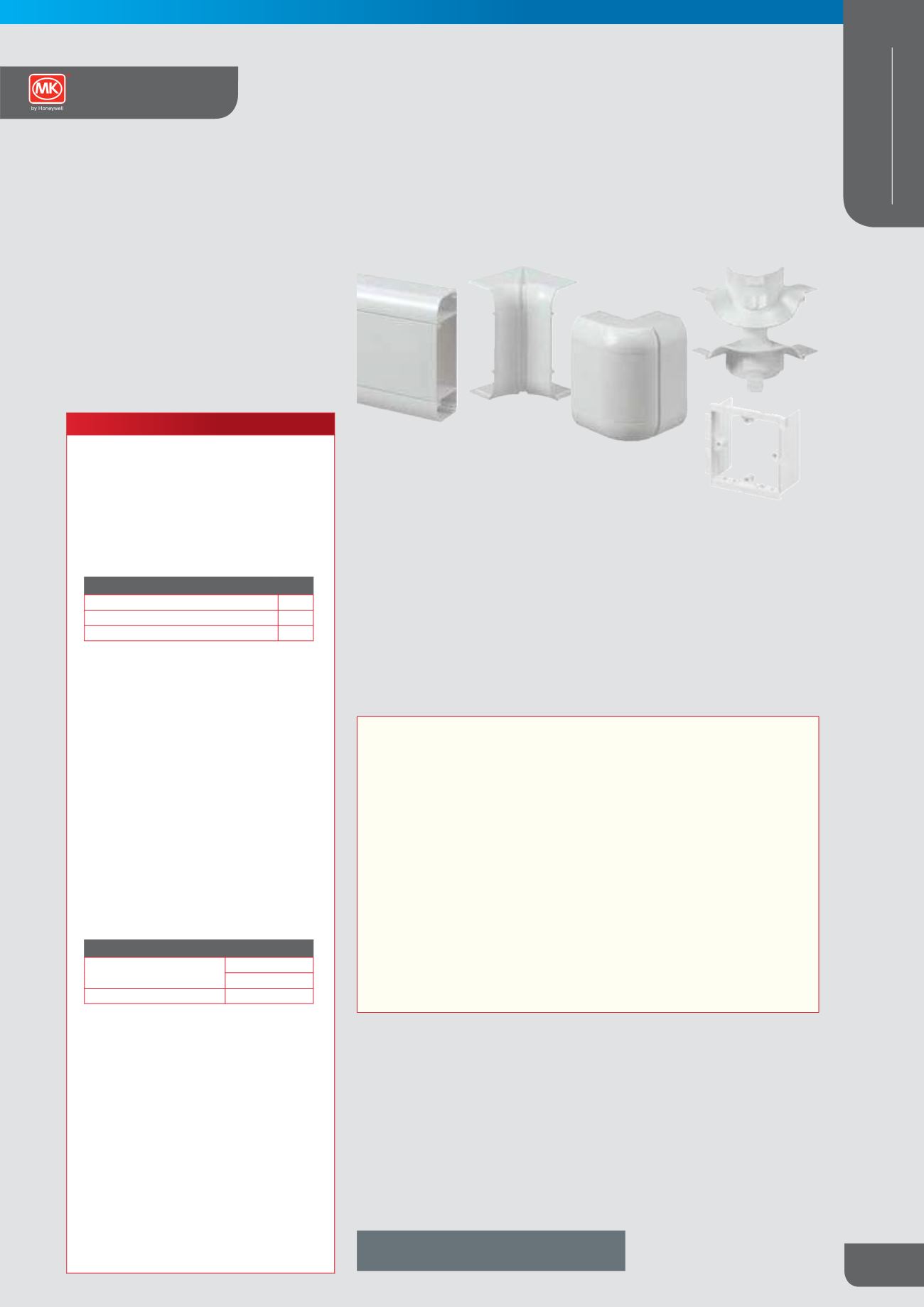

617
CABLE MANAGEMENT
PERIMETER AND
DISTRIBUTION
FEATURES
l
Unique ‘open box’ mounting frames
combined with divider knockouts to
provide unhindered tool-free cable
entry
l
Patented Cat 5e, 6 and 7 compliant
Data Sweep, with no loss of capacity
and without the need for bulbous,
protruding corner covers
l
Cat Cat 5e, 6 and 7 compliant moulded
flexible Internal and External Corners,
moulded Flat Angles and Tees
l
Divider Knockouts, making wiring
easier and faster with no drilling or
cutting
l
Patented two stage Hinge Lids enables
cables to be supported by the trunking
cover during installation, and makes
retro-installation of additional cables
more simple
l
Pre-punched bases
l
Attractive easy to fit single piece
covers for flat angle and flat tee
l
Curved outer covers that complement
MK Logic Plus accessories
l
All extrusions manufactured from
100%
recycled material*
Standards and Approvals
The Prestige 3D Compact System is
manufactured in accordance with the
requirements of BS EN 50085-1:2005 and
BS 4662:2006. Copies of test certificates are
available upon request. The system complies with
all the relevant requirements of BS 7671:2008.
MK has been awarded ISO 9002 accreditation.
TECHNICAL SPECIFICATION
CE MARKING
All relevant MK products in this brochure are CE marked,
confirmation that they meet the EMC and LV directives.
MANUFACTURE
All trunking components are manufactured from PVCu.
APPEARANCE
Prestige 3D is manufactured in white. The trunking
surface can be painted, if required, after installation.
PERFORMANCE
IMPACT
MINIMUM STORAGE TEMPERATURE
-5ºC
MINIMUM INSTALLATION TEMPERATURE
-5ºC
MAXIMUM APPLICATION TEMPERATURE
+60ºC
FIRE PERFORMANCE
The PVCu materials used in the manufacture of MK
products are non-flame propagating in accordance
with BS EN 50085-1:2005. Extrusion material has
achieved classification 1Y in accordance with BS 476-7.
Moulding material has achieved 650ºC glow wire rating
in accordance with BS EN 60695-2-11:2001.
THERMAL PROPERTIES
Prestige 3D Compact trunking is designed to
accommodate local thermal expansion. Fitting
instructions explain the procedure required to deal
with the differential movement at the interface with
the building fabric. Linear Expansion: 4mm over every
3000mm with a temperature rise of 25ºC.
CHEMICAL RESISTANCE
The PVCu materials used are non-corrosive and not
affected by seawater. It has excellent resistance to mineral
acids, alkalis and detergents, good resistance to alcohols,
but is liable to attack from solvents such as ketones,
aromatics and hydrocarbons. See PVCu Chemical
Resistance table on Page 611 for more information.
ELECTRICAL
PRESTIGE 3D TRUNKING IS NON-CONDUCTIVE
DIELECTRIC STRENGTH
40 kV/mm in DBP
17 kV/mm in tx oil
RESISTIVITY
1014 Ω cm
BIOLOGICAL
Prestige 3D Compact trunking is. resistant to vermin
and termites.
WORKABILITY
Prestige 3D Compact trunking is lightweight and can
readily be cut and drilled to suit installation needs
with hand tools.
DURABILITY
Prestige 3D Compact trunking is stable and will maintain
its performance characteristics in accordance with the
terms and conditions described above.
MAINTENANCE
Clip-on covers with optional screw fix and interchangeable
accessories provide continuous accessibility for rewiring,
extensions and modifications to an installation. Covers
and accessories can be cleaned with water and household
detergent. The surface can be decorated with commercial
paints if required.* Classifications to BS EN 50085-1:2005
and BS EN 50085-2-1:2006 available on request.
For a full range of corresponding products,
see pages 305-310 in the product selector.
Prestige 3D Technical
– Compact
Data Trunking System
Description
Prestige 3D Compact satisfies the growing data demands in more confined
locations. Prestige 3D Compact has a smaller footprint than Prestige Plus and
Prestige 3D and is rich in features, offering installation benefits and improved
data cable management. The new concept uses the full trunking depth with a
sliding open box (frame) principal to ease power and data connections. Prestige
3D Compact trunking is capable of being installed to Cat 5e, 6 and 7 data cable
installation requirements, and the depth is more conducive to data accessories.
The centre compartment is intended for accessory mounting only. Power and data
cables are to be run in the outer compartments
* Based on 2014 consumption
