MK Electric Catalogue No. 49

614 / 759

614
CABLE MANAGEMENTPERIMETER ANDDISTRIBUTION
FLAT ANGLES AND TEES DIMENSIONS (MM)
LIST NO DESCRIPTION A B C D
VP185WHI / CHA Flat Angle 218mm 170mm
VP187WHI / CHA Flat Tee 202mm 170mm 235mm 170mm
VP195WHI / CHA Flat Angle Up 218mm 170mm
VP196WHI / CHA Flat Angle Down 270mm 170mm
VP197WHI / CHA Flat Tee Up 202mm 170mm 235mm 170mm

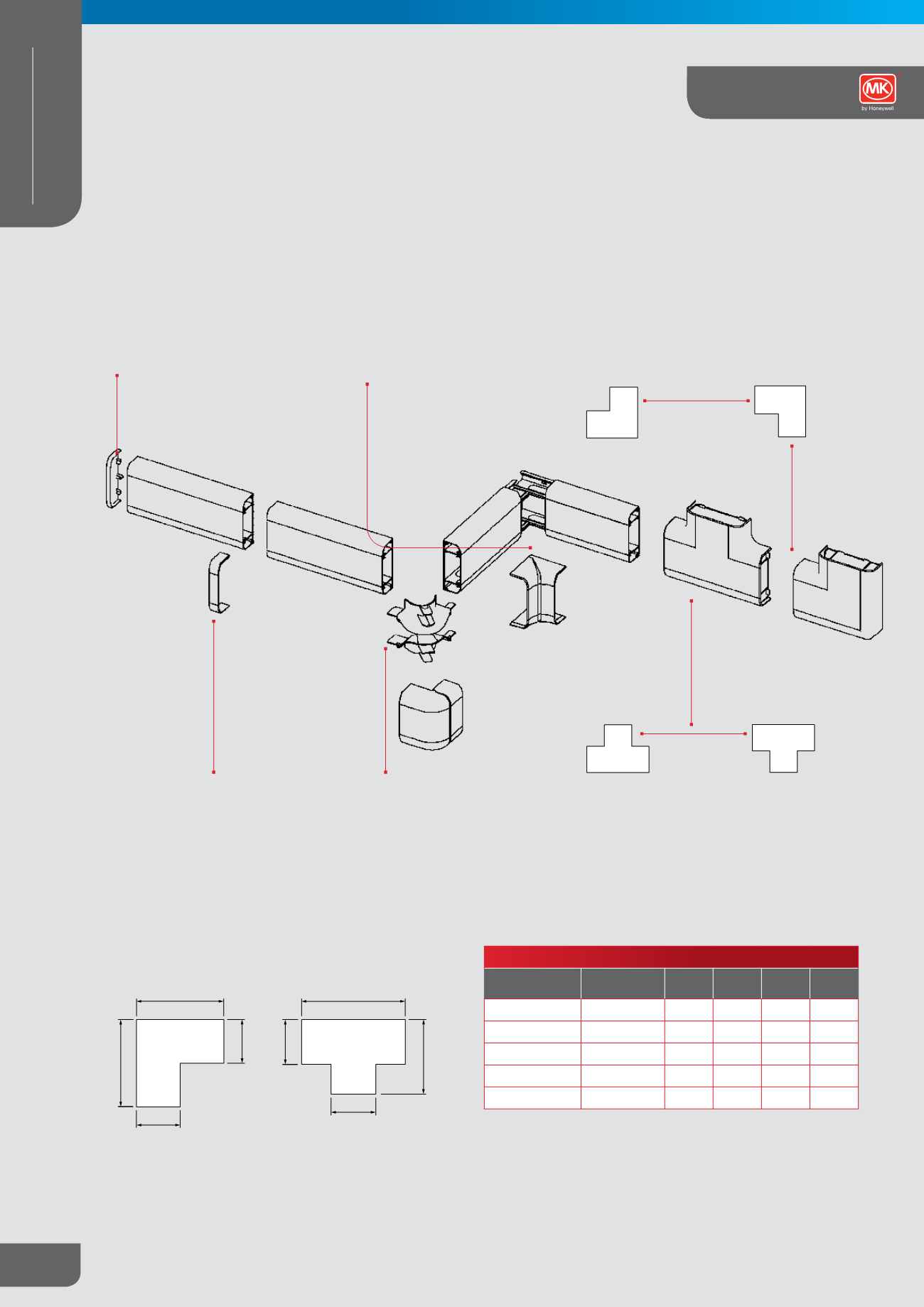

Prestige 3D Technical
– Dado & Skirting
Component Selection Guide
A
A
B
B
Flat Angles and Tees
D
B
A
C
INTERNAL CORNER
DADO – VP181WHI / CHA
SKIRTING – VP191WHI / CHA
END CAP
DADO – VP183WHI / CHA
SKIRTING – VP193WHI / CHA
EXTERNAL CORNER
DADO – VP182WHI / CHA
SKIRTING – VP192WHI / CHA
JOINT COVER
DADO – VP184WHI / CHA
SKIRTING – VP194WHI / CHA
FLAT TEE UP
DADO – VP187WHI / CHA
SKIRTING – VP197WHI / CHA
20
70
13
13
FLAT TEE DOWN
DADO – VP187WHI / CHA
20
70
13
13
20
70
13
13
FLAT ANGLE UP
DADO – VP185WHI / CHA
SKIRTING – VP195WHI / CHA
FLAT ANGLE DOWN
DADO – VP185WHI / CHA
SKIRTING – VP196WHI / CHA*
70
13
13
*This item is fabricated rather than moulded
Data Trunking System
