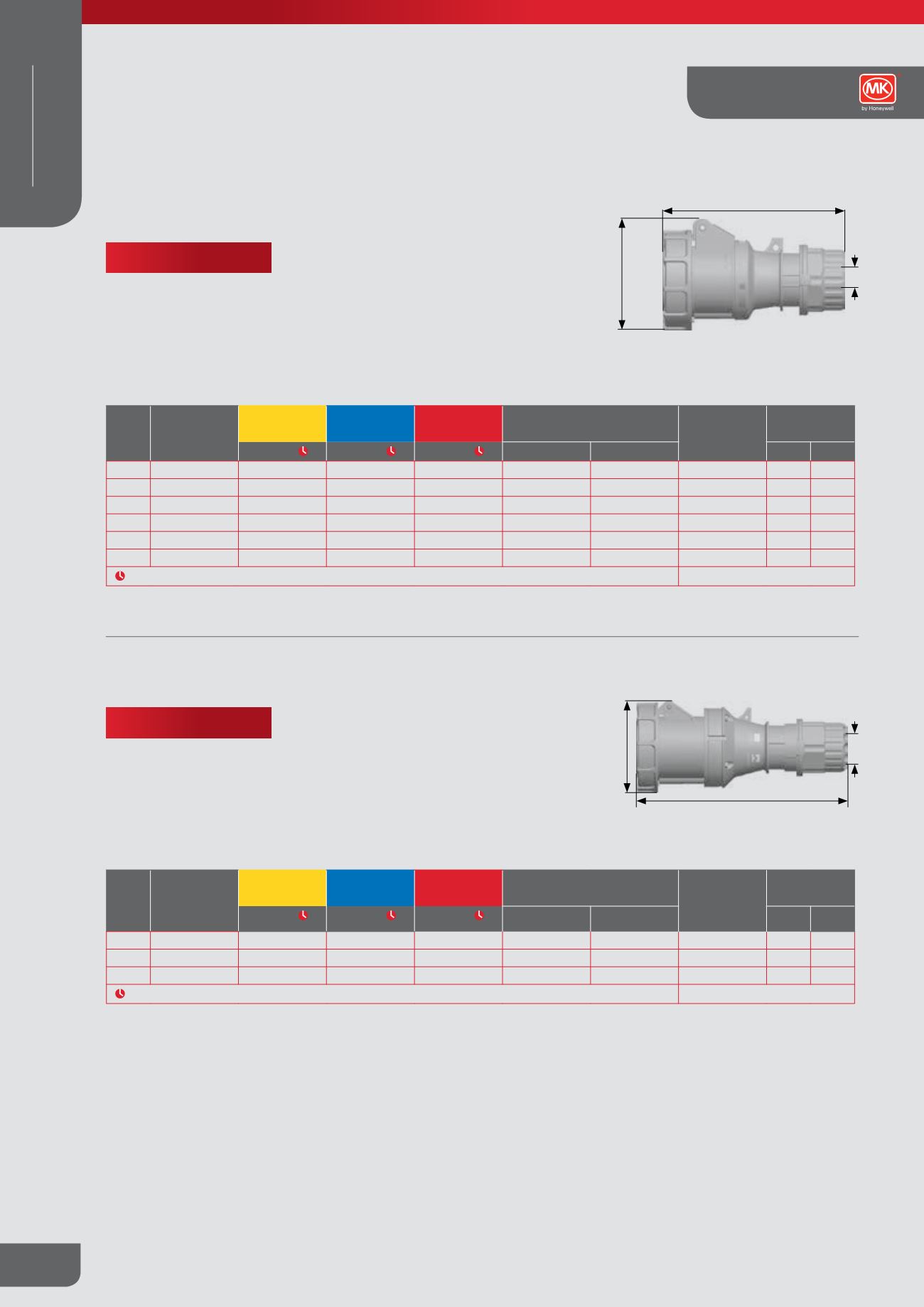

MK Electric Catalogue No. 49

558 / 759

558
WIRING DEVICES
INGRESS PROTECTEDConnectors 16 and 32 Amp
Connectors 63 Amp
AMPS PIN.
CONFIGURATION
100-130V
50-60HZ
200-250V
50-60HZ
380-415V
50-60HZ
CABLE DIAMETER
D MM
TERMINAL
CAPACITY*
MM2
DIMENSIONS
IN MM
LIST NO LIST NO LIST NO MIN MAX A B
16A 2P+E K9123YEL 4 K9124BLU 6 8.2 13 1-2.5 151 80
16A 3P+E K9125RED 6 8.9 17 1-2.5 168 88
16A 3P+N+E K9126RED 6 10.1 21.5 1-2.5 170 97
32A 2P+E K9155YEL 4 K9156BLU 6 11.7 21.5 2.5-6 177 102
32A 3P+E K9157RED 6 11.7 21.5 2.5-6 177 102
32A 3P+N+E K9158RED 6 14.2 21.5 2.5-6 182 109
Earth Hour Position *Flexible conductors
AMPS PIN.
CONFIGURATION
100-130V
50-60HZ
200-250V
50-60HZ
380-415V
50-60HZ
CABLE DIAMETER
D MM
TERMINAL
CAPACITY*
MM2
DIMENSIONS
IN MM
LIST NO LIST NO LIST NO MIN MAX A B
63A 2P+E K9855YEL 4 K9856BLU 6 14 41 4 - 16 286 111
63A 3P+E K9842RED 6 16.5 41 4 - 16 286 111
63A 3P+N+E K9852RED 6 16.5 41 4 - 16 286 111
Earth Hour Position *Flexible conductors
IP67 WATERTIGHT
IP67 WATERTIGHT
Commando Technical
B
A
ØD
A
B
ØD
