Description
Prestige
3D

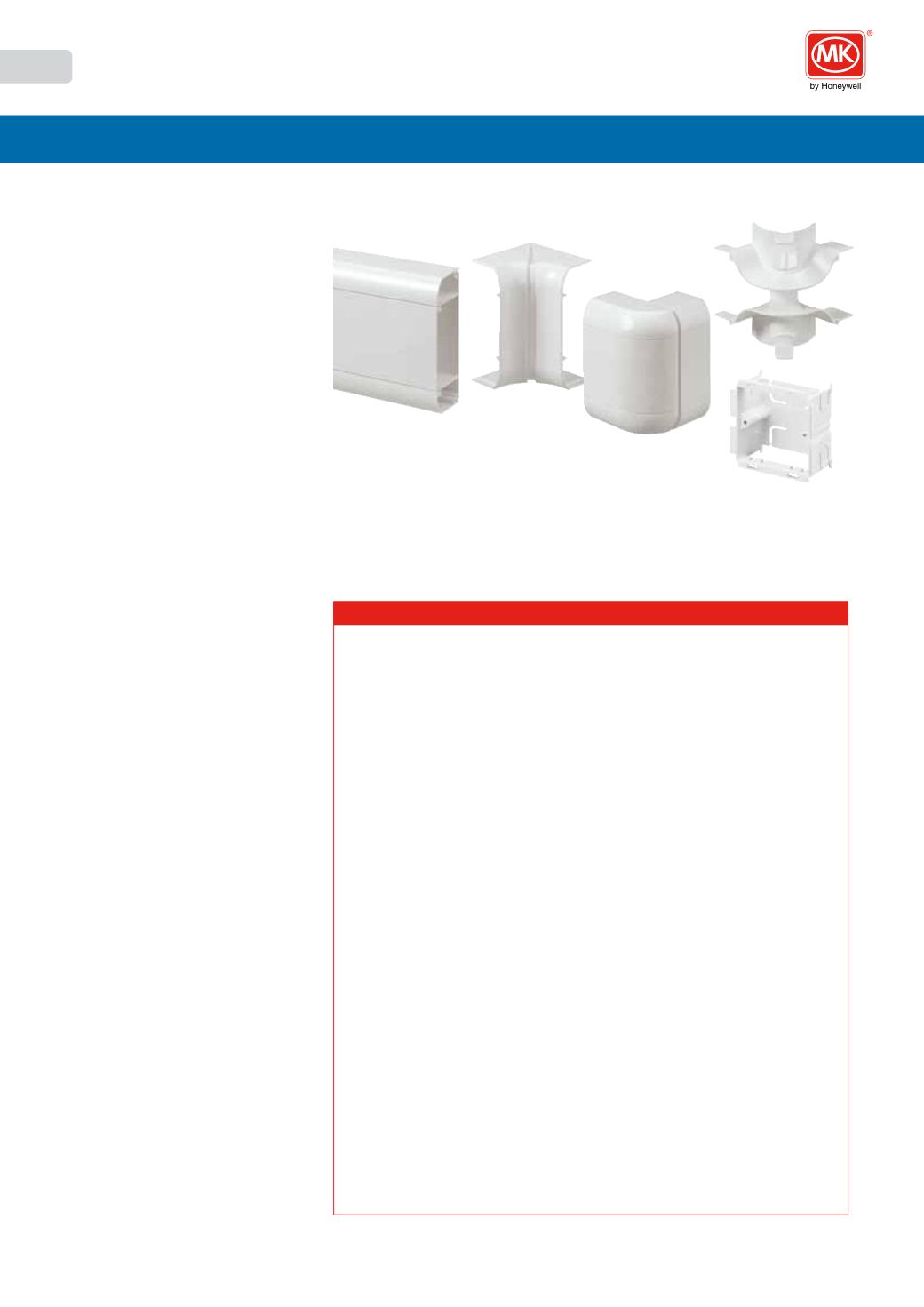

is the new three compartment dado, skirting and compact trunking from MK that
satisfies the growing data demands of cable management installations. As well as providing
greater depth for larger cable capacity, Prestige
3D
is rich in new features, offering installation
benefits and improved cable management. Prestige
3D
is Cat 5e, 6 and 7 compliant, with the
new Data Sweep, Flat Angles and Tees, all allowing continuous cable capacity.
Features
!
Greater trunking depth, increased data and
power cable capacity, accepts 45mm deep
back boxes
!
Patented Cat 5e, 6 and 7 compliant Data
Sweep, with no loss of capacity and without
the need for bulbous, protruding corner
covers
!
Cat 5e, 6 and 7 compliant moulded flexible
Internal and External Corners, moulded Flat
Angles and Tees
!
Divider Knockouts, making wiring easier
and faster with no drilling or cutting
!
Patented two stage Hinge Lids enables
cables to be supported by the trunking
cover during installation, and makes retro-
installation of additional cables more simple
!
All extrusions manufactured from 90%
recycled material*
Prestige Antibac Blue
New from MK, an antibacterial cable management solution for
power and data distribution in environments where hygiene is a
prioty.
Prestige Compact
A Dado system which has a smaller footprint and offers a solution
for confined locations, such as between radiators and window sills.
Standards and approvals
The Prestige
3D
System is manufactured in accordance with the
requirements of BS EN 50085-1: 2005 and BS 4662: 2006. Copies
of test certificates are available upon request. The system complies
with all the relevant requirements of BS 7671: 2008. MK has been
awarded ISO 9002 accreditation.
Technical speci"cation
CE marking
All relevant MK products in this brochure are CE marked,
confirmation that they meet the EMC and LV directives.
Manufacture
All trunking components are manufactured from PVCu.
Appearance
Prestige
3D
is manufactured in white. The trunking
surface can be painted, if required, after installation.
Antibac Blue must not be painted or otherwise coated.
Performance
Impact
Medium
Minimum Storage Temperature
-25ºC
Minimum Installation Temperature
-5ºC
Maximum Application Temperature
+60ºC
Fire performance
The PVCu materials used in the manufacture of MK
products are non-flame propagating in accordance with
BS EN 50085-1: 2005.
Extrusion material has achieved classification 1Y in
accordance with BS 476-7. Moulding material has
achieved 650ºC glow wire rating in accordance with
BS EN 60695-2-11: 2001.
Thermal properties
Prestige
3D
trunking is designed to accommodate
local thermal expansion. Fitting instructions explain the
procedure required to deal with the differential movement
at the interface with the building fabric.
Linear Expansion: 4mm over every 3000mm with a
temperature rise of 25ºC.
Chemical resistance
The PVCu materials used are non-corrosive and not
affected by seawater. It has excellent resistance to
mineral acids, alkalis and detergents, good resistance
to alcohols, but is liable to attack from solvents such as
ketones, aromatics and hydrocarbons.
Electrical
Prestige
3D
trunking is non-conductive.
Dielectric strength
40 kV/mm in DBP
17 kV/mm in tx oil
Resistivity
1014
cm
Biological
Prestige
3D
trunking is resistant to vermin and termites.
Workability
Prestige
3D
trunking is lightweight and can readily be
cut and drilled to suit installation needs with hand tools.
Durability
Prestige
3D
trunking is stable and will maintain its
performance characteristics in accordance with the terms
and conditions described above.
Maintenance
Clip-on covers with optional screw fix and
interchangeable accessories provide continuous
accessibility for rewiring, extensions and modifications
to an installation. Covers and accessories can be cleaned
with water and household detergent. The surface can be
decorated with commercial paints if required.
