perimeter and distribution
|
cable management
19
Prestige
3
D
Compact

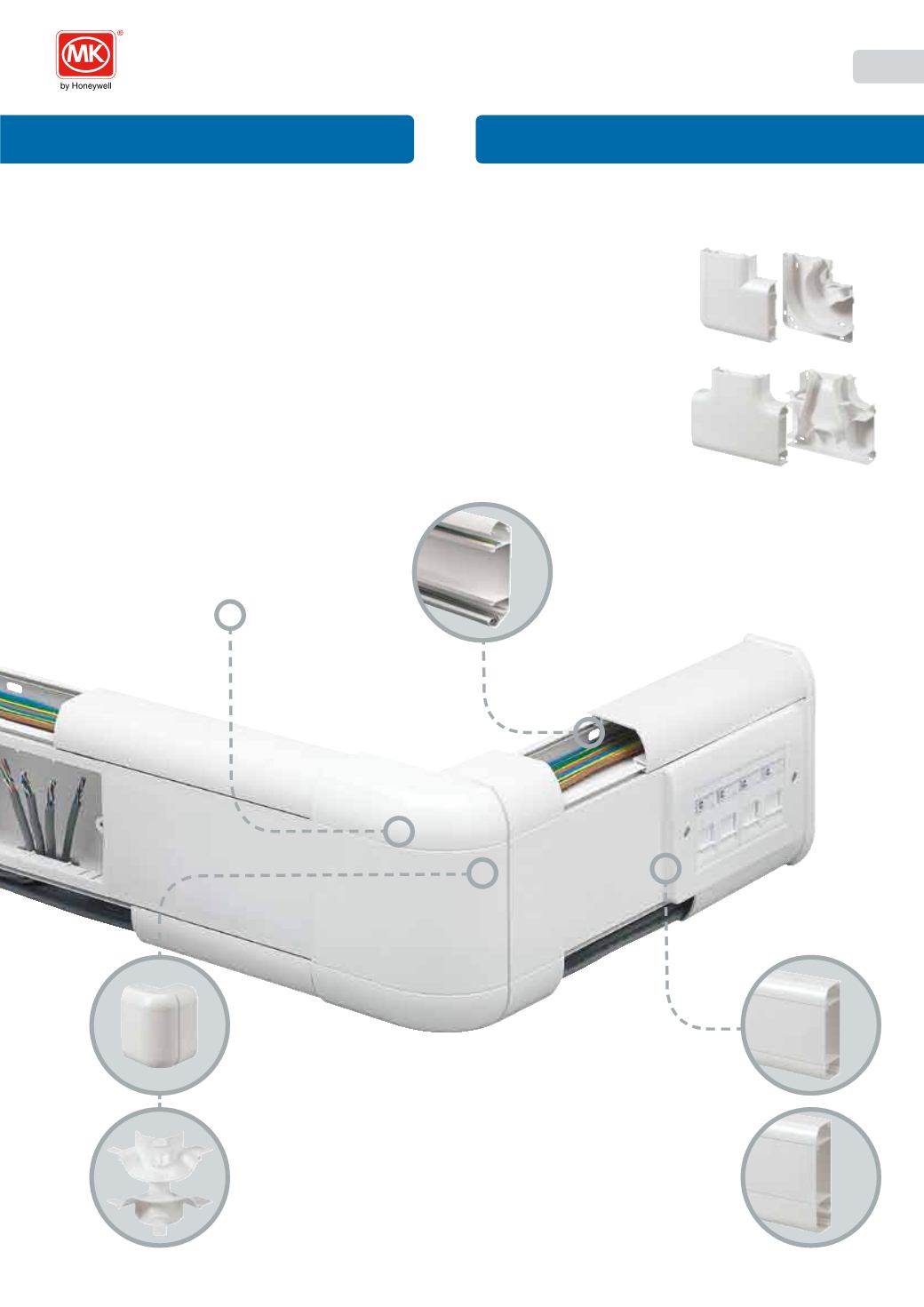

EXTERNAL CORNER
External Corners accommodate +/- 5 degree
irregularities in the squareness of a corner.
Corners come ready assembled to click into
place and offset side split hides the effect of
the split line for aesthetics.
FLAT TEES AND ANGLES
The ingenuity of the patented tee design allows a variety of cable drop permutations. The tee’s bridge
can be "tted in two positions increasing the versatility of cable runs whilst maintaining the correct
separation and Cat 5e, 6 and 7 compatibility. Screw "xing hole locations have a protective shroud to
prevent the cha"ng of cables. Both the Flat Angle and Tee compartment divider walls are curved
(Cat 5e, 6 and 7 compliant) to allow data cables to lay in with no loss of capacity. The covers are one
piece and clip securely into place, bases are also single mouldings giving more strength than an
equivalent fabrication. Joint covers are not required where the tee/angle meets the trunking as the
moulded covers now overlap the junction.
TRUNKING HINGED LIDS
A patented two stage location gives a hinge effect,
enabling cables to be supported by the trunking
cover during the installation. Cover design
avoids dust traps and makes cleaning easier and
continues the aesthetics of the trunking.
CHOICE OF TWO
PROFILES
140 x 45mm and
160 x 45mm choice
of pro"le to suit more
con"ned locations
and installation needs
around the wall and
below the window.
DATA SWEEP
The unique patented Data Sweep provides Cat 5e,
6 and 7 data cabling compliance, with no loss of
capacity and without the need for bulky protruding
corner covers.
STYLING LINES
All "ttings are moulded
with styling lines for
aesthetic continuity.
ELECTROMAGNETIC INTERFERENCE
Additional data cable/signal protection is provided
by "tting screening divider VCT30.
