cable management
|
perimeter and distribution
www.mkelectric.co.uk18
Prestige
3
D
Compact

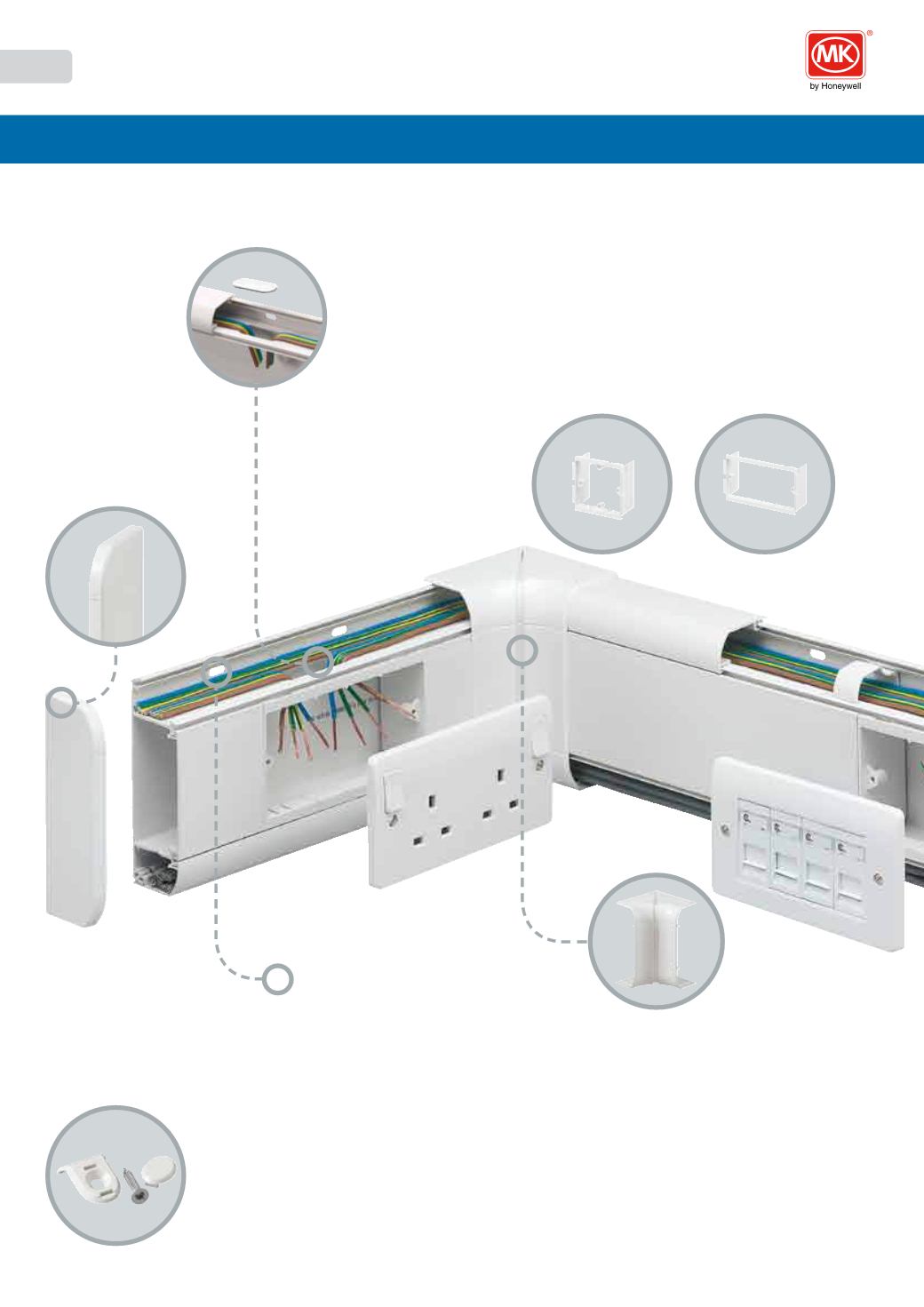

INTERNAL CORNER
Designed to accommodate irregularities
in the squareness of the corner with a +/-
5 degree !exibility range. The centre split
gives maximum adjustment. Covers are
radiused and compatible with Cat 5e, 6
and 7 data cabling requirements.
PRE-PUNCHED BASES
Wall "xing is simpli"ed by the
inclusion of pre-punched oval
holes at 100mm intervals, ensures
no drilling is required.
MOUNTING FRAMES
1 gang and 2 gang ‘open box’ mounting frames use
the full trunking depth allowing ease of connection
to power and data devices. The open top/bottom
allows unhindered tool free cable entry through the
trunking compartment divider knockout. The frame
can slide to align with appropriate knockout.
END CAPS
Neatly "nishes runs
of trunking. Moulding
provides internal location
for extra security from
optional screw "xing.
SCREW FIXING KIT
Where higher security is required, all "tting covers
can be secured using the Screw Fixing Kit. The Screw
Fixing Kit is self-locating on the styling line of the
system and has a cover to hide the screw head.
DIVIDER KNOCKOUTS
Wiring is also made
easy with 50mm x 21mm
knockouts at 100mm
intervals along
compartment dividers,
providing instant access
to mounting boxes with no
drilling or cutting.
