cable management | perimeter and distribution
30 Prestige 3D Compact
Technical
Data Trunking System

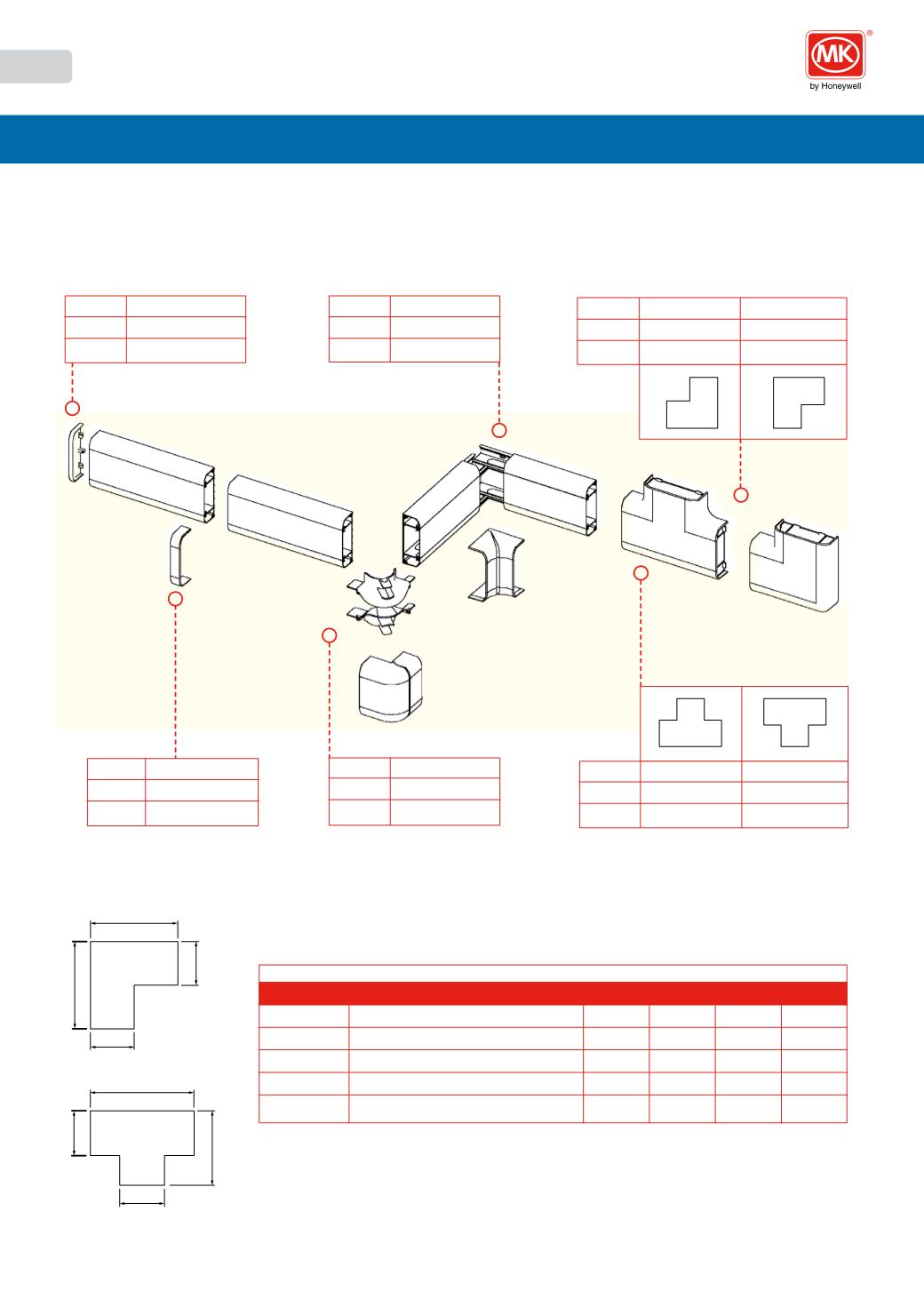

Component selection guide
A
A
B
B
Flat angles and tees
D
B
A
C
Pro"le Flat Tee Up Flat Tee Down
140mm VCT147 WHI VCT147 WHI
160mm VCT167 WHI
Pro"le Flat Angle Up Flat Angle Down
140mm VCT145 WHI VCT145 WHI
160mm VCT165 WHI VCT166 WHI
20
70
13
13
20
70
13
13
20
70
13
13
Pro"le Internal Corner
140mm VCT141 WHI
160mm VCT161 WHI
Pro"le End Cap
140mm VCT143 WHI
160mm VCT163 WHI
Pro"le External Corner
140mm VCT142 WHI
160mm VCT162 WHI
FABRICATED ANGLES AND TEES DIMENSIONS (mm)
LIST NO DESCRIPTION A B C D
VCT145 WHI Flat Angle 140 (Dado) 190mm 140mm
VCT147 WHI Flat Tee 140 (Dado) 200mm 140mm 235mm 140mm
VCT165 WHI Flat Angle – Up 160 (Extended Dado) 215mm 160mm
VCT166 WHI Flat Angle – Down 160 (Extended Dado) 215mm 160mm
VCT167 WHI Flat Tee – Up 160 (Extended Dado) 220mm 160mm 235mm 140mm
Pro"le Joint Cover
140mm VCT144 WHI
160mm VCT164 WHI
