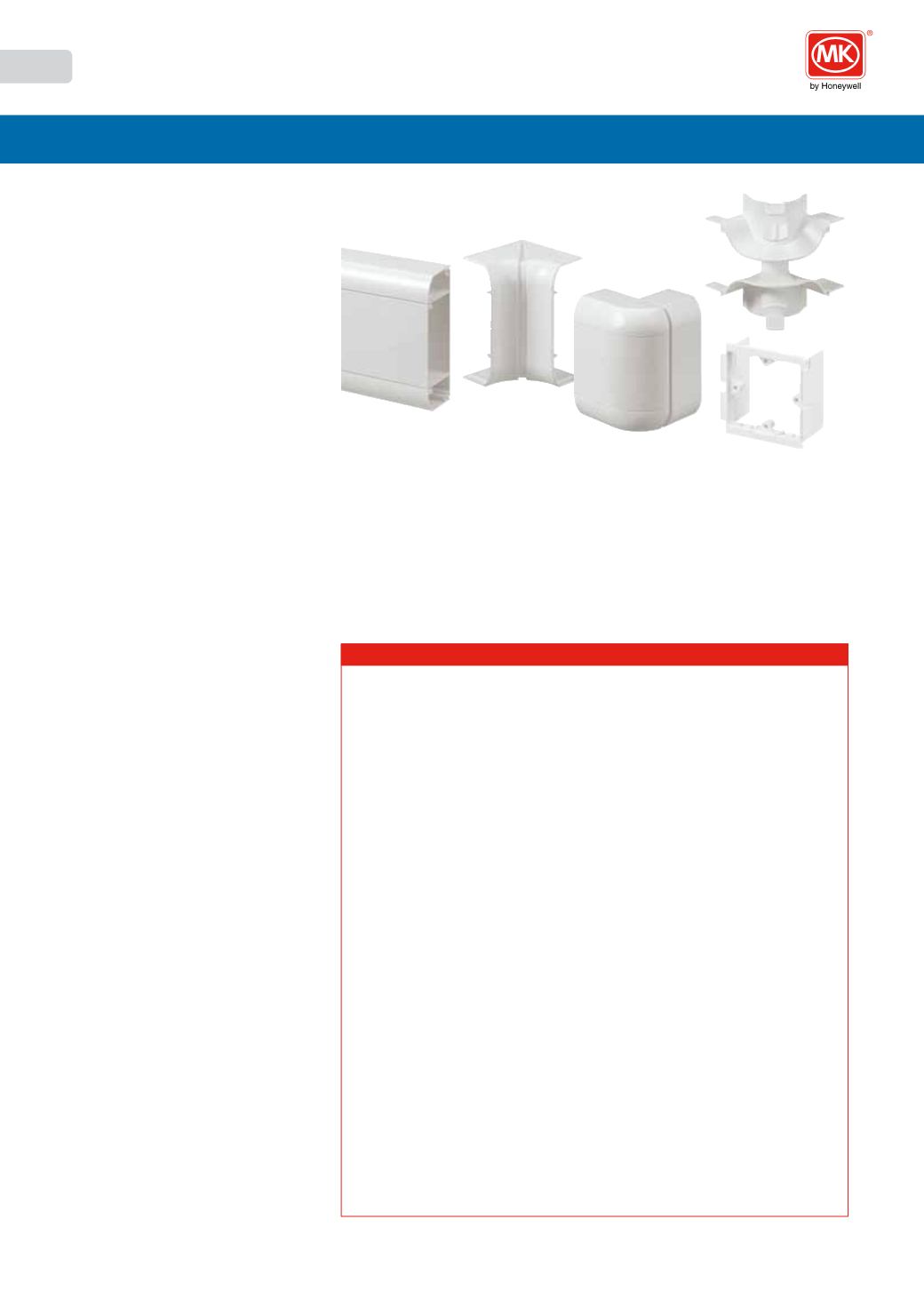

Description
Prestige
3D
Compact satisfies the growing data demands in more confined
locations. Prestige
3D
Compact has a smaller footprint than Prestige Plus and
Prestige
3D
and is rich in features, offering installation benefits and improved
data cable management. The new concept uses the full trunking depth with a
sliding open box (frame) principal to ease power and data connections. Prestige
3D
Compact trunking is capable of being installed to
Cat 5e, 6 and 7
data cable
installation requirements, and the depth is more conducive to data accessories.
The centre compartment is intended for accessory mounting only. Power and
data cables are to be run in the outer compartments.
Standards and approvals
The Prestige
3D
Compact System is manufactured in accordance
with the requirements of BS EN 50085-1:2005 and
BS 4662: 2006. Copies of test certificates are available upon request.
The system complies with all the relevant requirements of BS 7671:
2008. MK has been awarded ISO 9002 accreditation.
Technical speci"cation
CE marking
All relevant MK products in this brochure are CE
marked, confirmation that they meet the EMC and LV
directives.
Manufacture
All trunking components are manufactured from PVCu.
Appearance
Prestige
3D
Compact is manufactured in white.
The trunking surface can be painted, if required,
after installation.
Performance
Impact
Medium
Minimum Storage Temperature
-25ºC
Minimum Installation Temperature
-5ºC
Maximum Application Temperature
+60ºC
Fire performance
The PVCu materials used in the manufacture of MK
products are non-flame propagating in accordance with
BS EN 50085-1: 2005.
Extrusion material has achieved classification 1Y in
accordance with BS 476-7: 1997. Moulding material
has achieved 650ºC glow wire rating in accordance with
BS EN 60695-2-11: 2001.
Thermal properties
Prestige
3D
Compact trunking is designed to
accommodate local thermal expansion. Fitting
instructions explain the procedure required to deal
with the differential movement at the interface with the
building fabric.
Linear Expansion: 4mm over every 3000mm with a
temperature rise of 25ºC.
Chemical resistance
The PVCu materials used are non-corrosive and not
affected by seawater. It has excellent resistance to
mineral acids, alkalis and detergents, good resistance
to alcohols, but is liable to attack from solvents such as
ketones, aromatics and hydrocarbons.
Electrical
Prestige
3D
Compact
trunking is non-conductive.
Dielectric strength
40 kV/mm in DBP
17 kV/mm in tx oil
Resistivity
1014
cm
Biological
Prestige
3D
Compact trunking is resistant to vermin
and termites.
Workability
Prestige
3D
Compact trunking is lightweight and can
readily be cut and drilled to suit installation needs with
hand tools.
Durability
Prestige
3D
Compact trunking is stable and will
maintain its performance characteristics in accordance
with the terms and conditions described above.
Maintenance
Clip-on covers with optional screw fix and
interchangeable accessories provide continuous
accessibility for rewiring, extensions and modifications
to an installation. Covers and accessories can be cleaned
with a damp cloth and household detergent. The surface
can be decorated with commercial paints if required.
Features
O
Unique ‘open box’ mounting frames
combined with divider knockouts to provide
unhindered tool-free cable entry
O
Patented Cat 5e, 6 and 7 compliant Data
Sweep, with no loss of capacity and without
the need for bulbous, protruding corner
covers
O
Cat Cat 5e, 6 and 7 compliant moulded
flexible Internal and External Corners,
moulded Flat Angles and Tees
O
Divider Knockouts, making wiring easier and
faster with no drilling or cutting
O
Patented two stage Hinge Lids enables
cables to be supported by the trunking
cover during installation, and makes retro-
installation of additional cables
more simple
O
Pre-punched bases
O
Attractive easy to fit single piece covers for
flat angle and flat tee
O
Curved outer covers that complement MK
Logic Plus accessories
!
All extrusions manufactured from 90%
recycled material*
* Based on 2008 consumption
