CI insulated enclosures
Distribution board with/without gland plates fitted
2010 CA08103002Z-EN
Basic enclosures 20/13
Distribution board with/without gland plates fitted
• Transparent cover, cover fasteners can be sealed.
CI distribution board enclosure without cable gland plates
• Protection type IP65
• Sides closed, but with full area knockout, open top and bottom
KST distribution board enclosure with cable gland plates fitted
• Protection type IP65 (from bottom)
• Sides closed, but with full area knockout, open at top
• Mounting of cable supports in the distribution board with wedge-lock fastener
• Gland plate can be split, cables can be inserted from the front
– CI48-200
078896
1 off
3 x 14 - 68 KST48-200
098250
– CI48-250
083642
3 x 14 - 68 KST48-250
010450

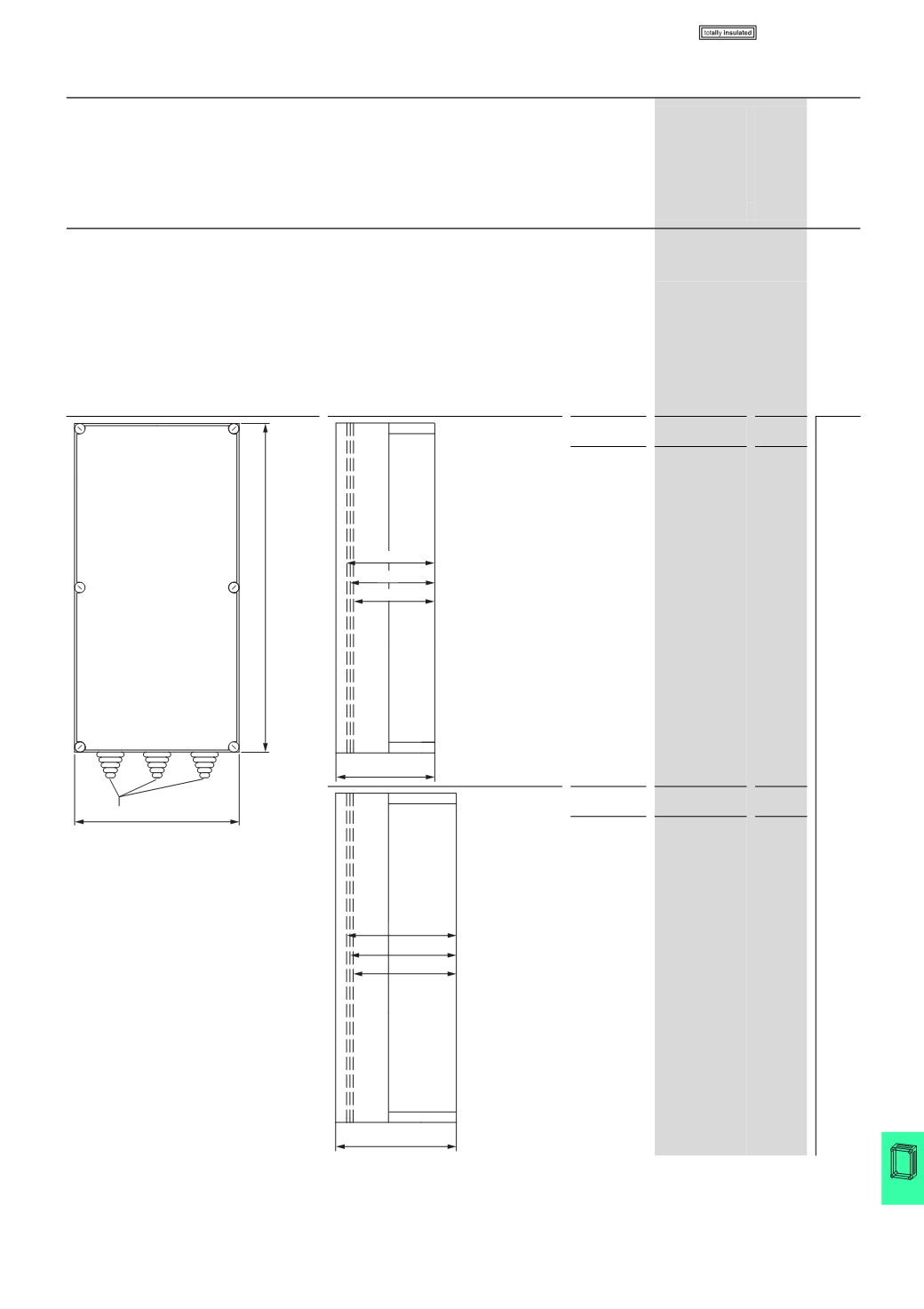

Dimensions Enclosure depth:
Dimensions from top:
1. Mounting depth for mounting plate
2. Mounting depth for mounting rail 7.5 mm height
3. Enclosure depth for mounting rail 15 mm height
4. Enclosure depth
Cable entry
outer diameter
Part no.
Article no.
Price
See price
list
Std.
pack
mm mm mm
750
375
KST48-...
225
185
192.5
200
275
235
242.5
250
CI..., KST... HPL20013EN
