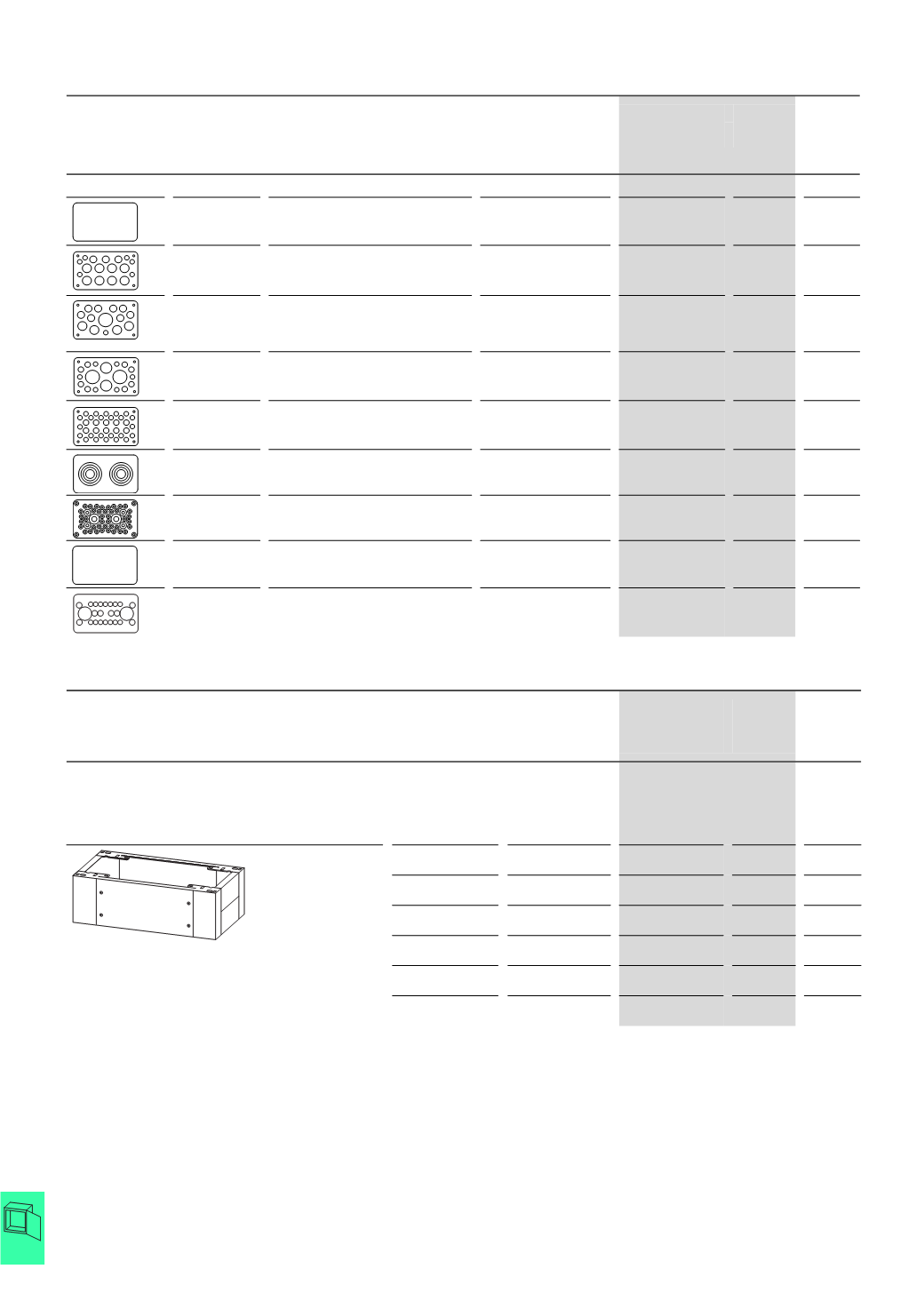

Eaton Industrial Switchgear - Xboard Optimal switchgear enclosure

120 / 140

21/12 CS sheet steel wall-mounting enclosure
Outdoor installation: Flanges, cable marshalling bases
2010 CA08103002Z-EN
Accessories
AccessoriesOutdoor installation: Flanges,cablemarshallingbases
Material Features Cable entry Part no.
Article no.
Price
See price
list
Std. pack
Flanges
Insulation
material
Blank plate - F3A-0
074182
10 off
Insulation
material
With metric cable entry knockouts 6 x M25/16;
8 x M32/20, 4 x M16
F3A-4
081301
10 off
Insulation
material
With metric cable entry knockouts 2 x M20
8 x M25/16
4 x M32/20
1 x M50/32
F3A-8
091468
10 off
Insulation
material
With metric cable entry knockouts 12 x M20, 2 x M16
2 x M40/25
2 x M50/32
F3A-12
076555
10 off
Insulation
material
With metric cable entry knockouts 24 x M16
13 x M20
F3A-34
078928
10 off
Insulation
material
With cable grommets 2 cables up to 70 mm ⌀ F3A-KTD
083674
5 off
Insulation
material
Sponge-rubber flange 40 cables, 10 – 13 mm ⌀
4 cables, 17 - 21 mm ⌀
2 cables, 27 - 30 mm ⌀
F3A-D
010145
10 off
Sheet steel Blank plate 2 mm, with powder coating
RAL 7035, sponge-rubbed gasket
- F3A-XP
113426
1 off
Insulation
material
Diaphragm flange for cabling 14 x 11 mm ⌀
8 x 15 mm ⌀
2 x 28 mm ⌀
ZSD-2K/FLA
272166
1 off
Dimensions Enclosure Part no.
Article no.
Price
See price
list
Std. pack
Width Depth
mm mm
Cable interconnect frame
• Height 200 mm
• Sheet steel, with powder coating RAL 7035
• Including fixing material
• Cable clamp rail not included as standard
600 250 PLI-6/250-200-CS
140472
1 off
600 300 PLI-6/300-200-CS
140473
1 off
800 250 PLI-8/250-200-CS
140474
1 off
800 300 PLI-8/300-200-CS
140475
1 off
1000 300 PLI-10/300-200-CS
140476
1 off
1200 250 PLI-12/250-200-CS
140477
1 off
F3A, PLI-CS HPL21012EN
