Multi-function display
Communication modules
2010 CA08103002Z-EN
MFD-Titan 12/23
MFD-TitanCommunicationmodules
Supply
voltage
Description For use
with
Part no.
Article no.
Price
See price
list
Std. pack Information relevant for export to
North America
Power supply unit/communication modules
IP20, can be combined with display/operating unit MFD-80...
as remote text display
24 V DC With connection
cable
(5 m, can be cut to
length)
easy500
easy700
MFD-CP4-500
274094
1 off Product Standards IEC/EN see
Technical Data;
UL 508; CSA C22.2
No. 142-M1987;
CSA C22.2 No. 213-
M1987;
CE marking
UL File No. E135462
UL CCN NRAQ
CSA File No. 012528
CSA Class No. 2252-01 + 2258-02
NA Certification UL Listed,
CSA certified
Degree of Protection IEC: IP20,
UL/CSA Type: -
24 V DC With connection
cable
(5 m, can be cut to
length)
easy800
EC4P
ES4P
MFD-CP4-800
274095
100 - 240 V AC With connection
cable
(5 m, can be cut to
length)
easy500
easy700
MFD-AC-CP4-500
286823
100 - 240 V AC With connection
cable
(5 m, can be cut to
length)
easy800
EC4P
ES4P
MFD-AC-CP4-800
286824
24 V DC Withoutconnection
cable
MFD-CP4
280888
100 - 240 V AC Withoutconnection
cable
MFD-AC-CP4
286822
Customized inscription, user program
• Customized inscription of multi-function display with
labeling software Labeleditor or
• Supply of multi-function display programmed with user
program
MFD-80-...
MFD-CP8...
MFD-CP10...
MFD-
COMBINATION-*
265260
1 off UL/CSA certification not required
Notes Procedure and ordering example for Labeleditor inscription software
Individually inscribe your device in 4 stages:
– Download the inscription software: keyword: “Labeleditor”
– Creation of label template (menu-guided in the software)
– Send the label template to the factory by email. The email address is automatically set for the selected product by the program. When your
template is sent, the Labeleditor issues a file name such as “EASY_12345.zip”. This file name is part of the article to be ordered (see Ordering
examples).
– Send order to the Eaton office or the electrical wholesalers.
Ordering example: MFD-Titan
MFD-80-B multi-function display with “company name”:
1 x MFD-COMBINATION-*
1 x MFD-80-B
1 x the file name “MFD_xxxxx.zip” issued by the Labeleditor

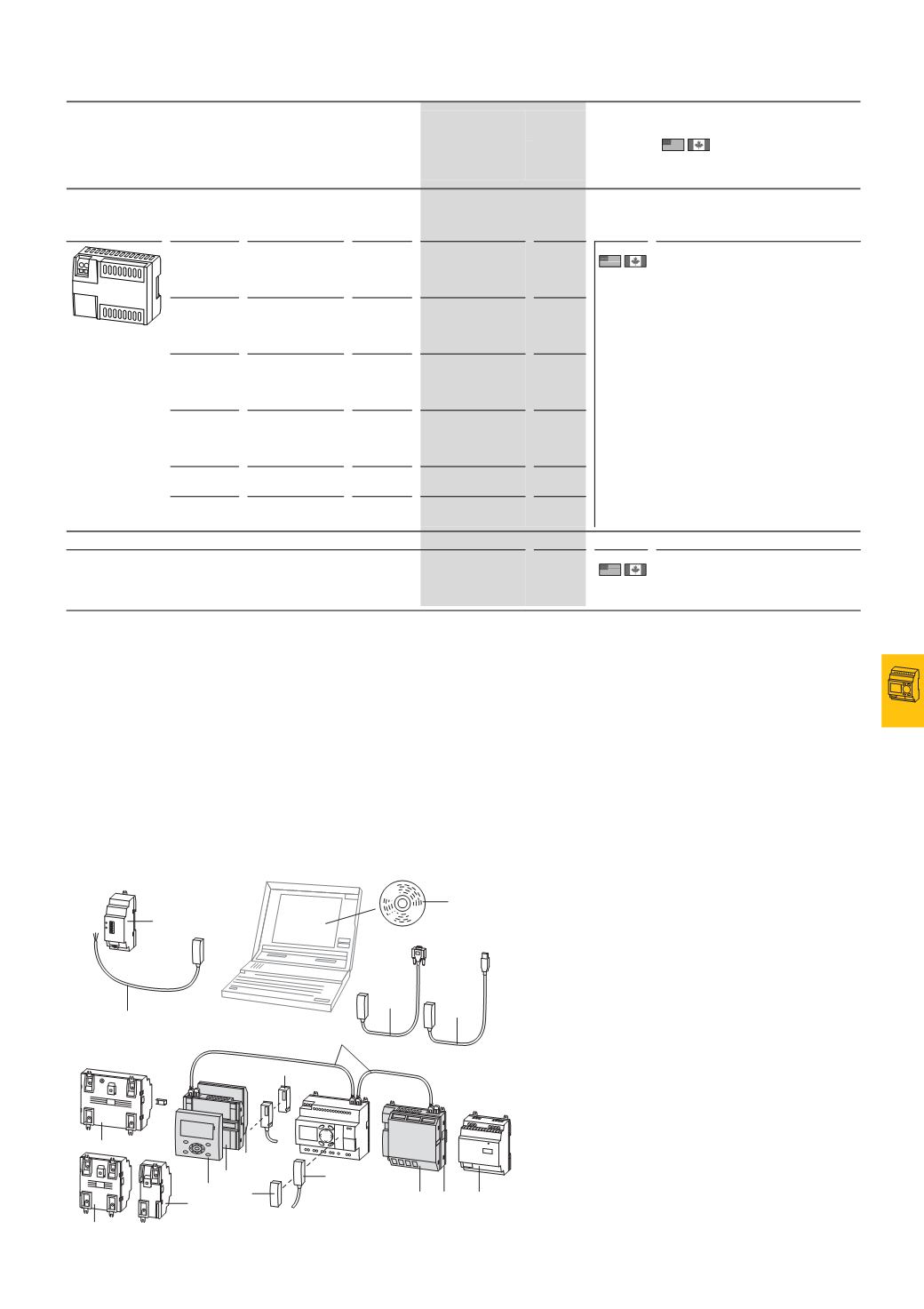

Accessories Page
1 Ethernet gateway ￫Page 12/16
2 Connection cable ￫Page 12/27
3 Programming software ￫Page 12/9
4 PC programming cable ￫Page 12/9
5 Inputs/outputs expansion ￫Page 12/15
6 output expansion, bus module,
coupling module
￫Page 12/16
7 Display/keypad ￫Page 12/16
8 Power supply unit/CPU module ￫Page 12/23
9 I/O module ￫Page 12/17
10 Memory card ￫Page 12/9
11 easyNet ￫Page 12/18
12 Switched-mode power supply unit ￫Page 12/10
easy 800
MFD Titan
easyNet
Power
1
2
3
12 9 8
10
9
8
7
2, 4
5
5
11
10
6
4
4
