Connection examples
Connectionexamples
Bypass circuit
After the run-up (full mains voltage
reached) the DM4 soft starter actuates
the bypass contactor. The motor is
then directly connected with the
mains.
Advantages:
• The soft starter’s power loss is
reduced to the no-load power loss.
• The limit values of radio interfer-
ence class “B” are maintained.

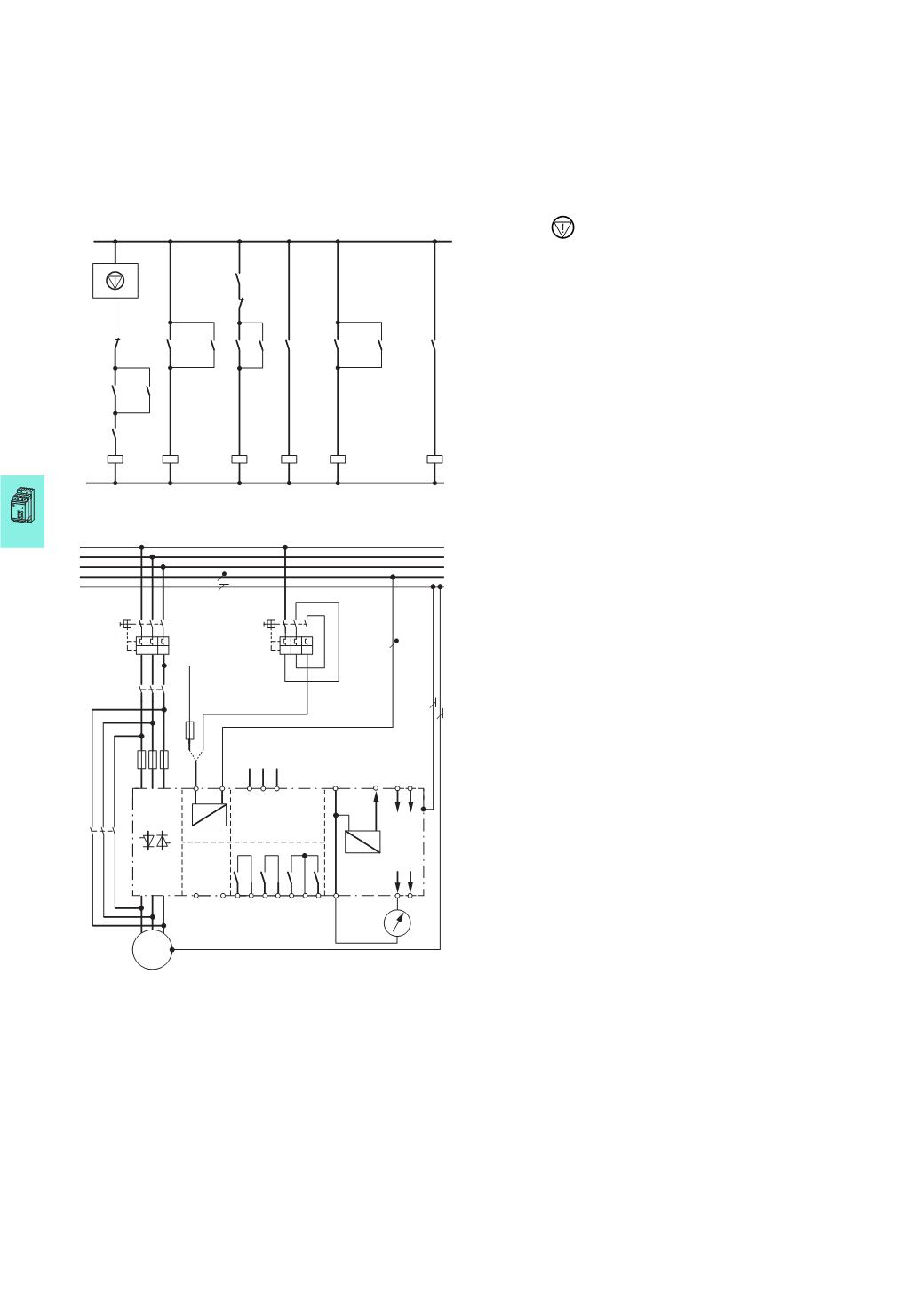

Actuation
= Emergency switching off
S1: Off (uncontrolled deceleration)
S2: On
① Enable
② Soft start/Soft stop
① See actuation
② Control voltage through Q1 and F11 or through Q2
③ Motor current indication
E1: Start/stop
E2: Enable
T1: + Thermistor
T2: - Thermistor
