DS6 soft starters
Accessories
2010
CA08103002Z-EN
www.eaton.com9/9

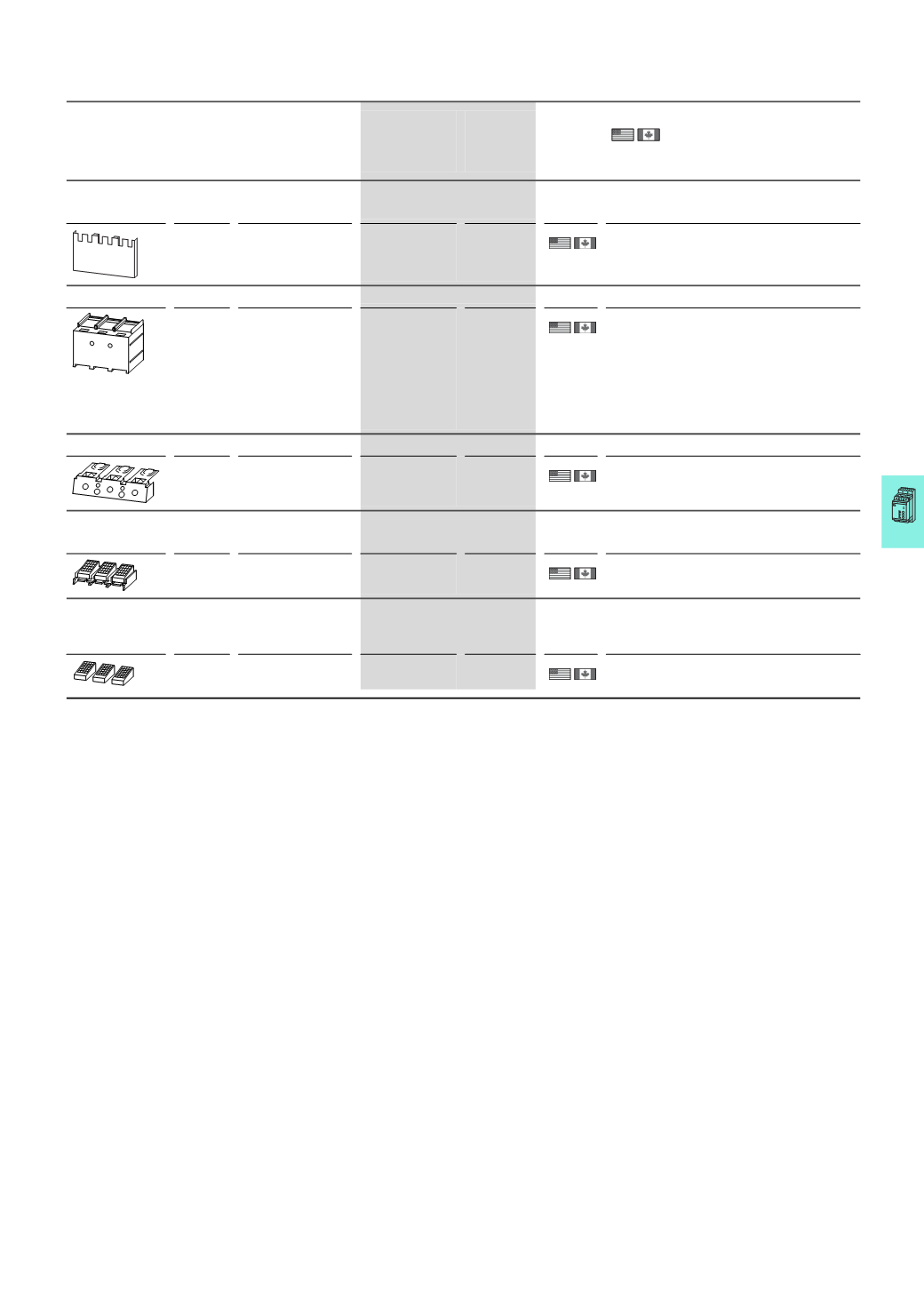

Accessories
Frame size/
inside
micrometer
For use with
Part no.
Article no.
Price
See price list
Std. pack
Information relevant for export to North America
mm
Terminal cover, knockout, no UL/CSA approval
For box terminal
1)
–
NZM1, PN1, N1
DS6-340-22K…55K-MX
NZM1-XKSFA
100780
1
off
UL/CSA certification not required
Cover
2)
–
NZM2, PN2, NS2
DS6-340-75K…110K
NZM2-XKSA
260038
1
off
Product Standards UL489; CSA-C22.2 No. 5-09;
IEC60947, CE marking
UL File No.
E31593
UL CCN
DIHS
CSA File No.
22086
CSA Class No.
1432-01
NA Certification
UL Listed, CSA certified
Suitable for
Refer to main component
information
Terminal cover
1)
–
NZM2, PN2, N(S)2
DS6-340-75K…110K
NZM2-XKSFA
104640
1
off
UL/CSA certification not required
IP2X protection against contact with a finger
For box terminal
3)
–
NZM2, PN2, N(S)2
DS6-340-75K…110K
NZM2-XIPK
266773
1
off
UL/CSA certification not required
IP2X protection against contact with a finger
For cover NZM2-XKSA or NZM2 or NZM2...(C)NA und
N(S)2...NA
4)
–
NZM2, PN2, N(S)2
NZM2-XIPA
266777
1
off
UL/CSA certification not required
Notes
1)
Type contains parts for a terminal located at top or bottom for 3 or 4-pole switches.
Increased protection against direct contact (simplified finger protection).
2)
Type contains parts for a terminal located at top or bottom for 3 pole switches.
Protection against direct contact where cable lugs, busbars or tunnel terminals are used.
When using insulated conductor material to protection type IP1X.
3)
Type contains parts for a terminal located at top or bottom for 3 pole switches.
Increased protection against direct contact to IP2X.
Protection when reaching into the cable connection area with the connection of cables in the box terminal.
With two conductors max cross-section 25 mm
2
or AWG4.
Cannot be combined with NZM-XSTK control circuit terminal.
4)
Type contains parts for a terminal located at top or bottom for 3 or 4-pole switches.
Increased protection against direct contact to IP2X.
When mounting NZM2-..-(C)NA or NZM...-NA the following applies:
With two conductors max cross-section 25 mm
2
or AWG4.
