9/14 DS6 soft starters
Soft starters
2010 CA08103002Z-EN
Power section
Rated impulse withstand voltage
1.2 μs/50 μs (pulse rise time/decay time according
to IEC/EN 60947-2 and -3)
Applies for control circuit/power section/enclosure
Uimp kV 4 4 4
Rated insulation voltage Ui V AC 500 500 500
Short-circuit rating
Type “1” of coordination
at AC-53a: 3…5 : 75…10 NZMN1-M50/PKZM4-50 NZMN1-M63/PKZM4-58 NZMN1-M80
Type “2” of coordination (in addition to the
fuses for type of coordination “1”)
3 x 20.282.20-100 3 x 20.282.20-125 3 x 20.610.32-200
Fuse base (number x Part no.) 3 x 21.189.01 3 x 21.189.01 3 x 21.313.02
Control circuit
Controller supply voltage
Voltage V +24 DC +10 %/-15 % +24 DC +10 %/-15 % +24 DC +10 %/-15 %
Current consumption
Current consumption at 24 V DC mA 35 35 35
Current consumption in operation at 24 V DC mA 65 65 65
Current consumption at peak load
(close bypass) at 24 V DC
600/50 ms 600/50 ms 600/50 ms
Control voltage
DC operated V DC +24 +10 %/-15 % +24 +10 %/-15 % +24 +10 %/-15 %
Current consumption at 24 V DC mA 14 14 14
Pick-up voltage
DC operated V DC +17.3 - 27 +17.3 - 27 +17.3 - 27
Drop-out voltage
DC operated V DC 0 - 3 0 - 3 0 - 3
Pick-up time
DC operated ms 250 250 250
Drop-out time
DC operated ms 190 190 190
Relay outputs
Number (top of ramp) 2 (TOR, Ready) 2 (TOR, Ready) 2 (TOR, Ready)
Voltage V AC 250 250 250
Current A 3 3 3
Soft start function
Ramp times
Acceleration time s 1 - 30 1 - 30 1 - 30
Deceleration time s 0 - 30 0 - 30 0 - 30
Start voltage (= switch-off voltage) % 30 - 100 30 - 100 30 - 100
Voltage reduction at stop % 8 8 8
Torque-free time when changing direction of
rotation
ms – – –
DS6-340-22K-MX DS6-340-30K-MX DS6-340-37K-MX

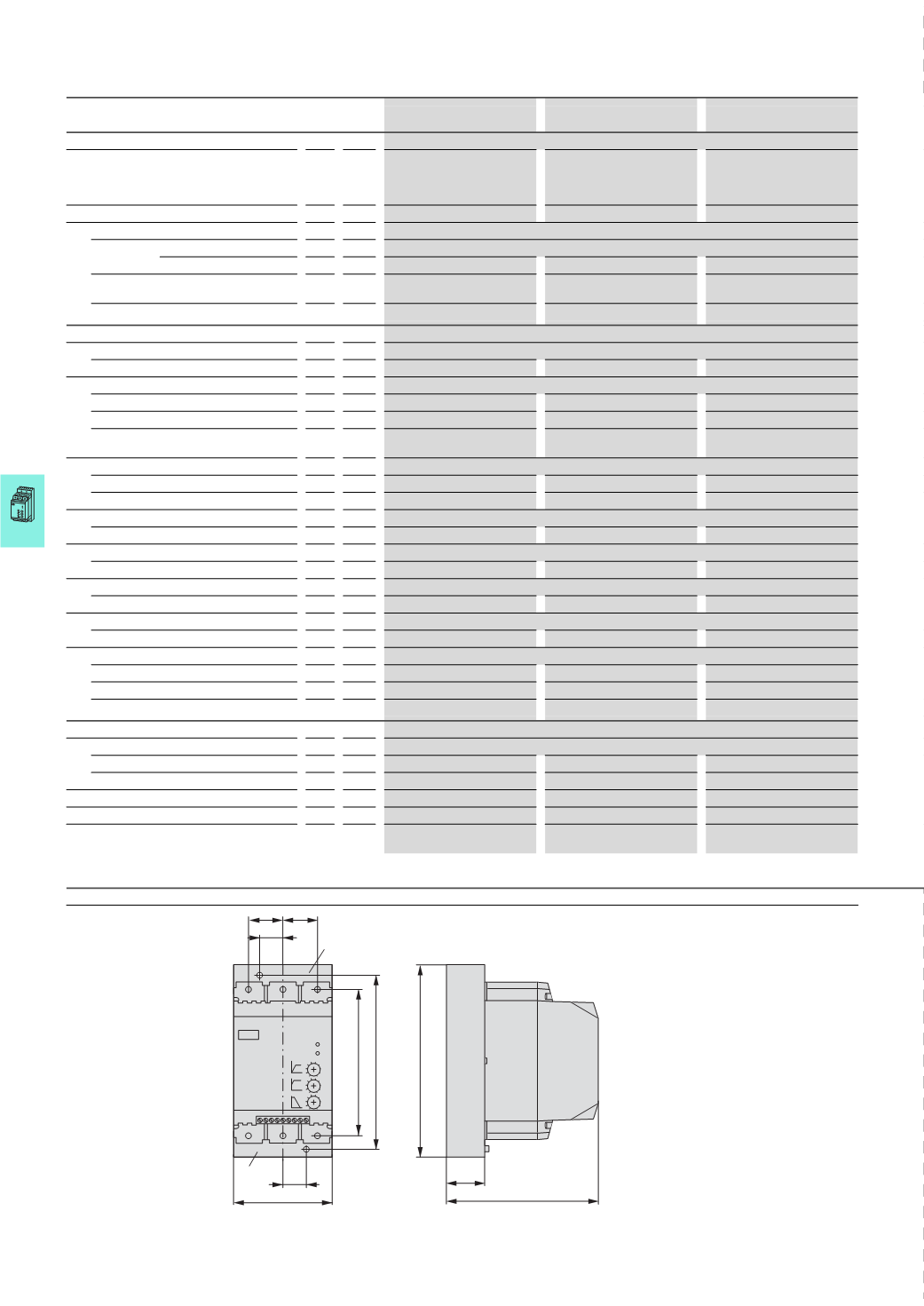

Dimensions
DS6-340-22K-MX
DS6-340-30K-MX
DS6-340-37K-MX
DS6-340-45K-MX
DS6-340-55K-MX
161 129
22.5
PE
30 30
22.5
93
e
PE
e
175
35
139
DS6
