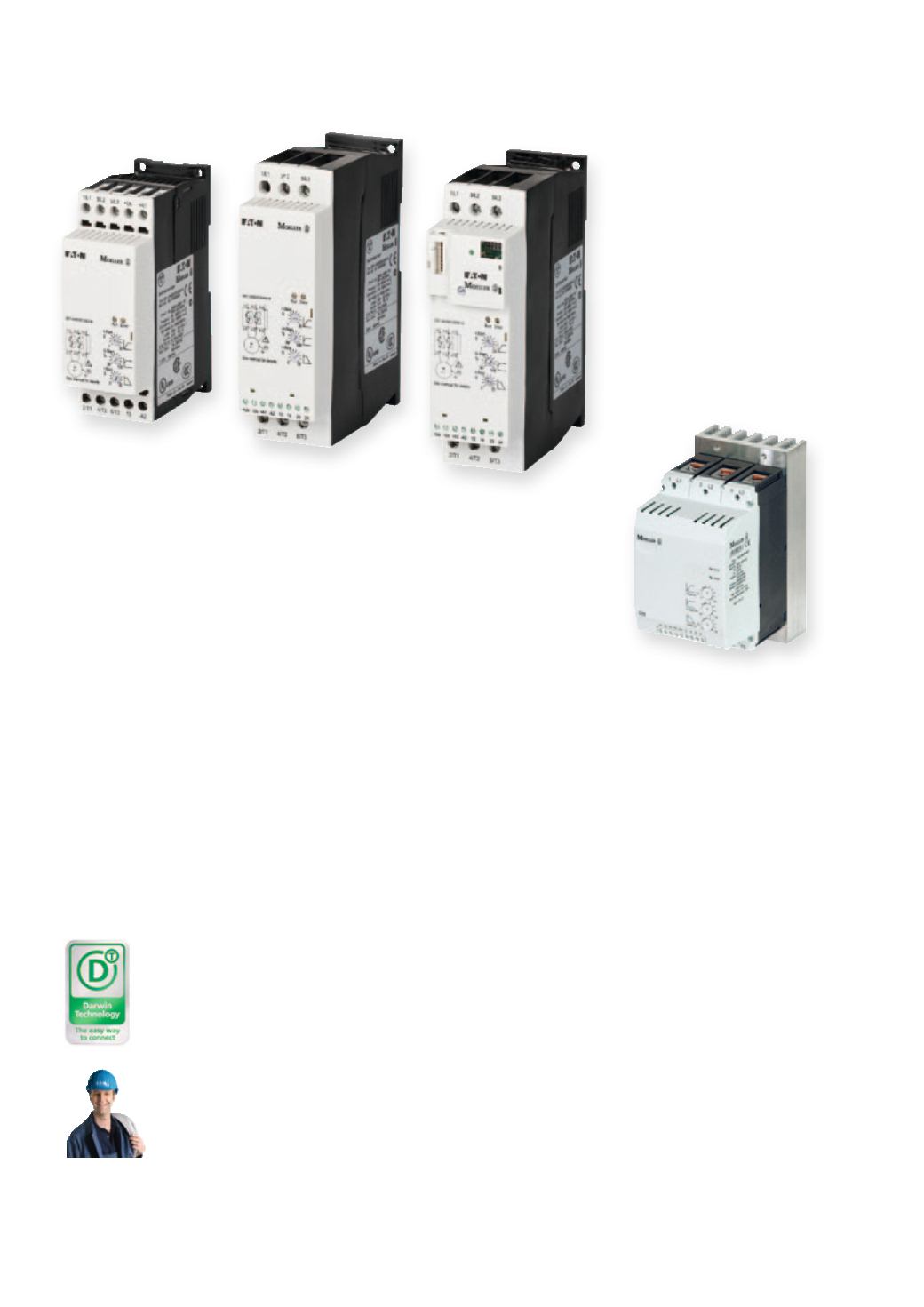

Two-phase controlled DS6 soft starter with internal bypass
Easy setting through three regulating switches(U-start, t-start, t-stop) +++ special control
method (asymmetrical ignition control) +++ Performance range 41 – 200 A, 18.5 – 110 kW
(
with 400 V) ￫ Page 9/19
Two-phased controlled DS7 soft starter with asymmetrical trigger
Easy setting through three regulating switches(U-start, t-start, t-stop) +++ special control
method (asymmetrical ignition control) +++ Optional fan to increase switching rate +++ can
be used with numerous contactor options +++ Ramp times and start voltages adjustable by
potentiometer +++ Performance range: 3 – 200 A, 1.1 – 110 kW (with 400 V) ￫ Page 9/31
Three-phased controlled DM4 soft starter
Parameterizable and communication-capable +++ Selector switch with 10 standard applications
+++ Performance range: 16 – 900 A, 7.5 – to 900 kW (with 400 V) ￫ Page 9/55
Soft starters enable the gentle start of alternating current asynchronous motors through
a continuously variable control of the motor supply voltage during the start phase.
The resulting torque increase ensures that the motor is adapted to the load
characteristics of the machine and is accelerated smoothly.
The soft starter DS7 is available in a communications-capable version for connection
to the SmartWire-Darwin communication system.
