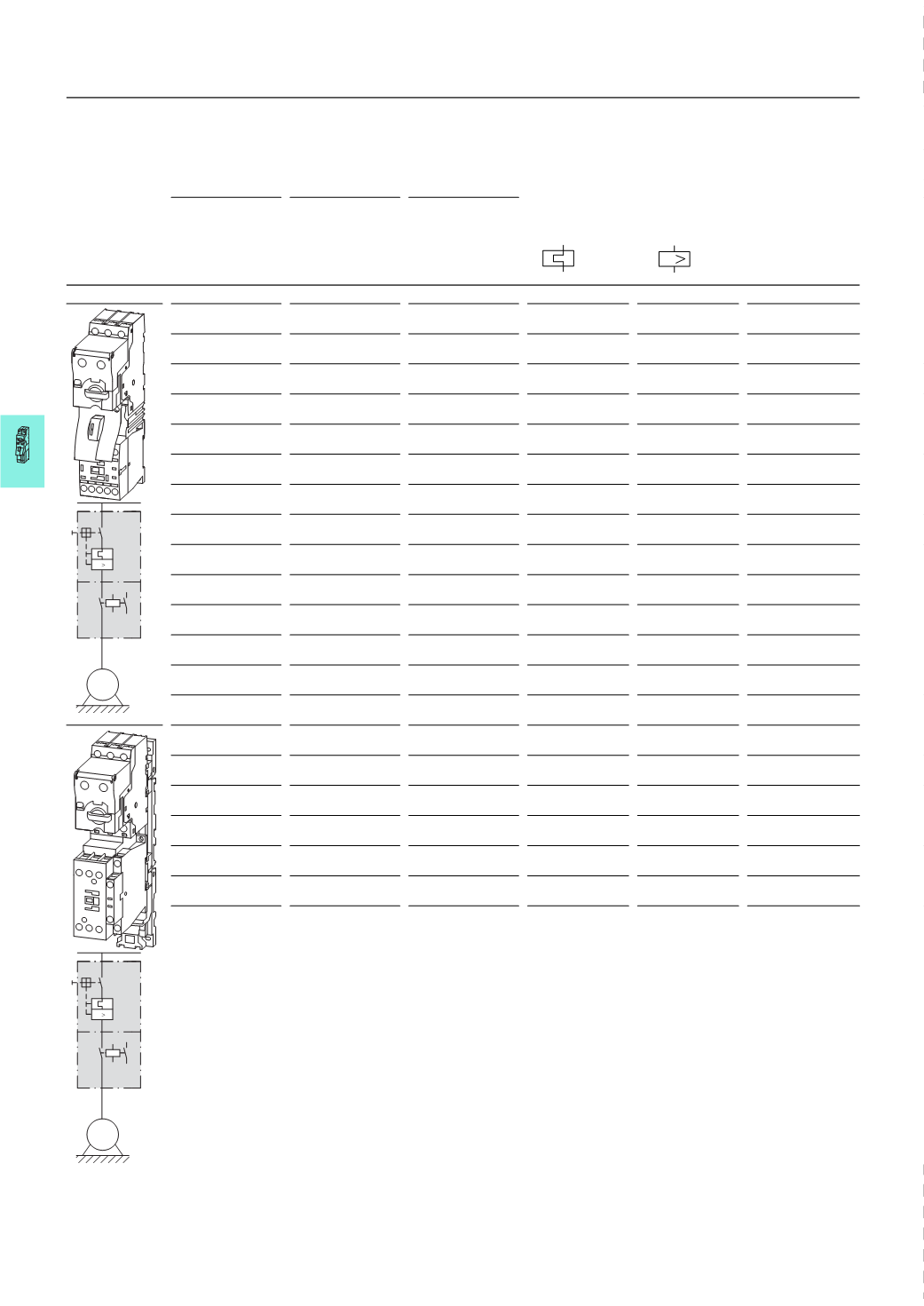

8/6 Motor-starter combinations
Complete units 400/415 V
DOL starters
2010 CA08103002Z-EN
Motor data Setting range
Rated operational
power
Rated operational
current
Rated short-circuit
current
Overload trip Short-circuit release Type of coordination
AC-3 AC-3
380 V
400 V
415 V
400 V 380 - 415 V
P Ie Iq Ir Irm
kW A kA A A
Complete devices MSD-DEA
0.06 0.21 100 0.3 - 1.2 16.8 "1"
0.09 0.31 100 0.3 - 1.2 16.8 "1"
0.12 0.41 100 0.3 - 1.2 16.8 "1"
0.18 0.6 100 0.3 - 1.2 16.8 "1"
0.25 0.8 100 0.3 - 1.2 16.8 "1"
0.37 1.1 100 0.3 - 1.2 16.8 "1"
0.55 1.5 100 1 - 4 56 "1"
0.75 1.9 100 1 - 4 56 "1"
1.1 2.6 100 1 - 4 56 "1"
1.5 3.6 100 1 - 4 56 "1"
2.2 5 100 3 - 12 168 "1"
3 6.6 100 3 - 12 168 "1"
4 8.5 100 3 - 12 168 "1"
5.5 11.3 100 3 - 12 168 "1"
2.2 5 100 3 - 12 168 "1", "2"
3 6.6 100 3 - 12 168 "1", "2"
4 8.5 100 3 - 12 168 "1", "2"
5.5 11.3 100 3 - 12 168 "1", "2"
7.5 16.7 100 8 - 32 448 "1", "2"
11 21.7 100 8 - 32 448 "1", "2"
15 29.3 100 8 - 32 448 "1", "2"
I
M
3 ~
I
M
3 ~
I
MSC-DEA: PKE, DILM HPL08006EN
