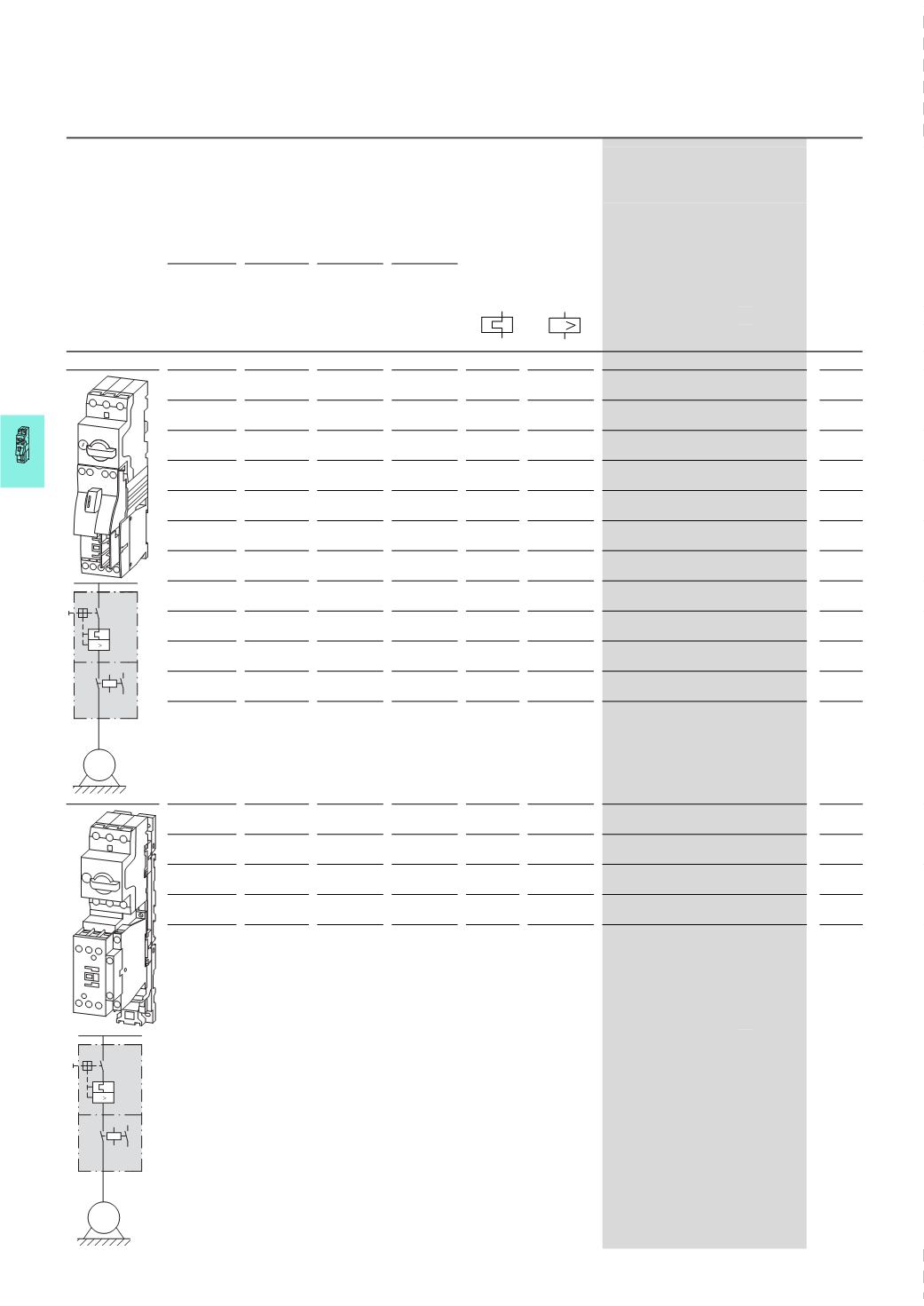

8/2 Motor-starter combinations
Complete units
DOL starters
2010 CA08103002Z-EN
DOL startersCompleteunitsOrdering
DOL startersCompleteunits 400/415V
Motor data Setting range Motor starters
actuating voltage
230 V 50 Hz
Motor rating Rated
operational
current
Rated short-circuit current Overload
trip
Short-circuit
release
Part no.
Article no.
Price
See price
list
Std.
pack
AC-3 AC-3 380 - 415 V 380 - 415 V
380 V
400 V
415 V
400 V Type “1”
coordination
Type “2”
coordination
P Ie Iq Iq Ir Irm
kW A kA kA A A
Complete units MSC-D
0.06 0.21 150 50 0.16 - 0.25 3.5 MSC-D-0.25-M7(230V50HZ)1)
281925
1 off
0.09 0.31 150 50 0.25 - 0.4 5.6 MSC-D-0.4-M7(230V50HZ)1)
281926
1 off
0.12
0.18
0.41
0.6
150 50 0.4 - 0.63 8.82 MSC-D-0.63-M7(230V50HZ)1)
281927
1 off
0.25 0.8 150 50 0.63 - 1 14 MSC-D-1-M7(230V50HZ) 1)
281929
1 off
0.37
0.55
1.1
1.5
150 50 1 - 1.6 22.4 MSC-D-1.6-M7(230V50HZ)1)
283140
1 off
0.75 1.9 150 50 1.6 - 2.5 35 MSC-D-2.5-M7(230V50HZ)1)
283142
1 off
1.1
1.5
2.6
3.6
150 50 2.5 - 4 56 MSC-D-4-M7(230V50HZ) 1)
283143
1 off
2.2 5 150 50 4 - 6.3 88.2 MSC-D-6.3-M7(230V50HZ)1)
283145
1 off
3 6.6 150 – 6.3 - 10 140 MSC-D-10-M7(230V50HZ)
283146
1 off
4 8.5 150 – 6.3 - 10 140 MSC-D-10-M9(230V50HZ)
283147
1 off
5.5 11.3 50 – 8 - 12 168 MSC-D-12-M12(230V50HZ)
283148
1 off
7.5 15.2 50 – 10 - 16 224 MSC-D-16-M15(230V50HZ)
100414
1 off
3
4
6.6
8.5
50 50 6.3 - 10 140 MSC-D-10-M17(230V50HZ)
101045
1 off
5.5 11.3 50 50 8 - 12 168 MSC-D-12-M17(230V50HZ)
101046
1 off
7.5 15.2 50 50 10 - 16 224 MSC-D-16-M17(230V50HZ) 1)
283150
1 off
11 21.7 50 50 20 - 25 350 MSC-D-25-M25(230V50HZ) 1)
283151
1 off
15 29.3 50 50 25 - 32 448 MSC-D-32-M32(230V50HZ) 1)
283152
1 off
I
M
3 ~
I
M
3 ~
I
MSC-D: PKZM0, DILM HPL08002EN
