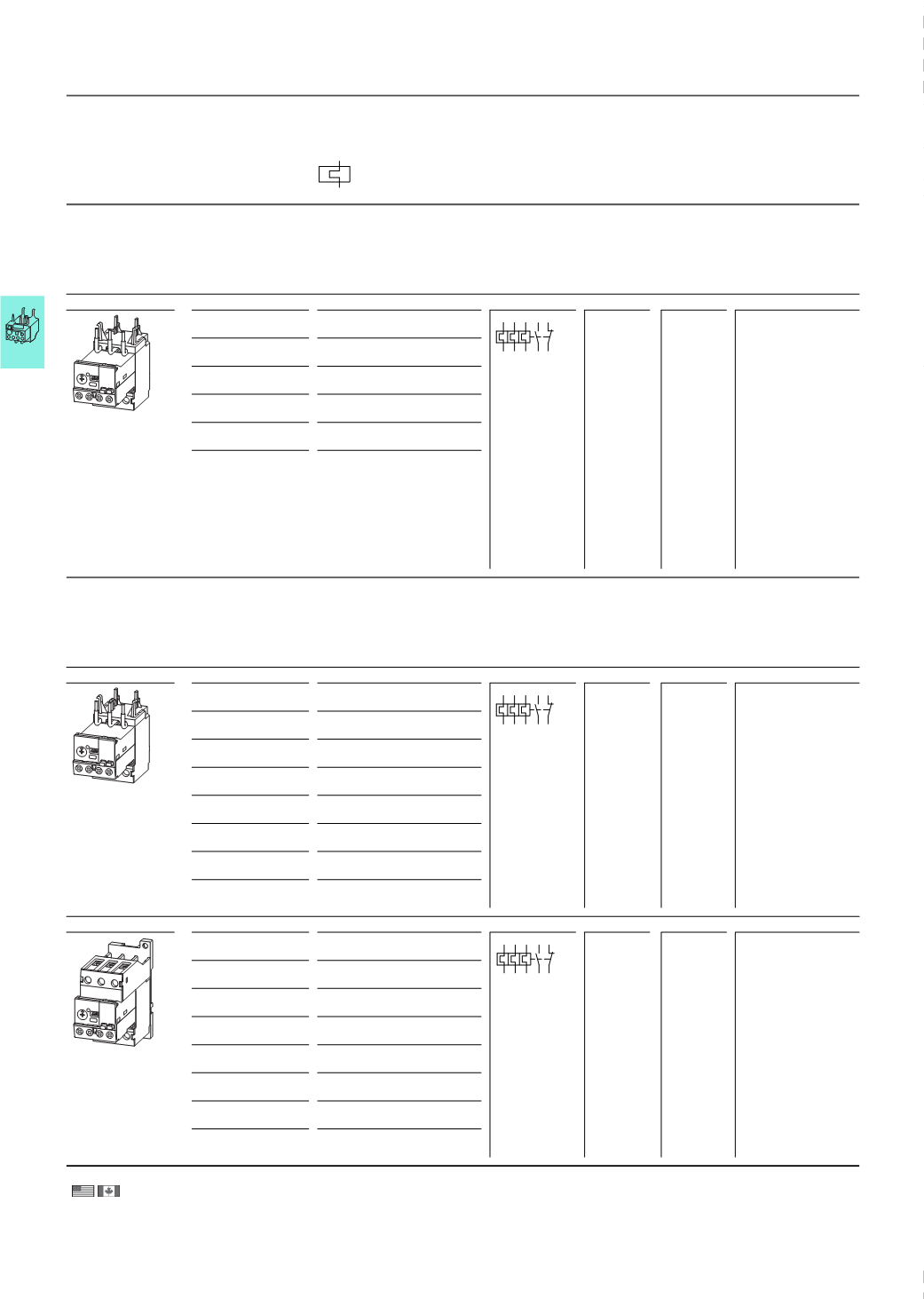

6/14 Electronic overload relays to 1500 A
Basic devices
2010 CA08103002Z-EN
Basicdevices
Ground fault detection Setting range
of overload releases
Circuit symbol Auxiliary contact For use with
Ir
A
N/O = normally open contact
NC = normally closed contact
ZEB12 electronic overload relay
• Phase-failure sensitivity
• Test/off pushbutton
• Reset button
• Manual/Auto reset selectable
• Protection with heavy starting duty (Class 5-30)
Direct mounting
Without 0.33 – 1.65 1 N/O 1 NC DILM7
DILM9
DILM12
DILM15
DIULM7
DIULM9
DIULM12
SDAINLM12
SDAINLM16
SDAINLM22
Without 1 – 5
Without 4 – 20
With 0.33 – 1.65
With 1 – 5
With 4 – 20
ZEB32 electronic overload relay
• Phase-failure sensitivity
• Test/off pushbutton
• Reset button
• Manual/Auto reset selectable
• Protection with heavy starting duty (Class 5-30)
Direct mounting
Without 0.33 – 1.65 1 N/O 1 NC DILM17
DILM25
DILM32
DILM38
DIULM17
DIULM25
DIULM32
SDAINLM30
SDAINLM45
SDAINLM55
Without 1 – 5
Without 4 – 20
Without 9 – 45
With 0.33 – 1.65
With 1 – 5
With 4 – 20
With 9 – 45
Separate mounting
Without 0.33 – 1.65 1 N/O 1 NC DILM17
DILM25
DILM32
DILM38
DIULM17
DIULM25
DIULM32
SDAINLM30
SDAINLM45
SDAINLM55
Without 1 – 5
Without 4 – 20
Without 9 – 45
With 0.33 – 1.65
With 1 – 5
With 4 – 20
With 9 – 45
Information relevant for export to North America
Product Standards UL 508; CSA-C22.2 No. 14; IEC/EN 60947-4-1; CE marking
NA Certification Request filed for UL and CSA
Suitable for Branch circuits
Max. Voltage Rating 600 V AC
Degree of Protection IEC: IP20, UL/CSA Type: -
2 4 6 98 96
97 95
2 4 6 98 96
97 95
1 3 5 97 95
2 4 6 98 96
ZEB12, ZEB32 HPL06014EN
